40 VEGA Visual Operating

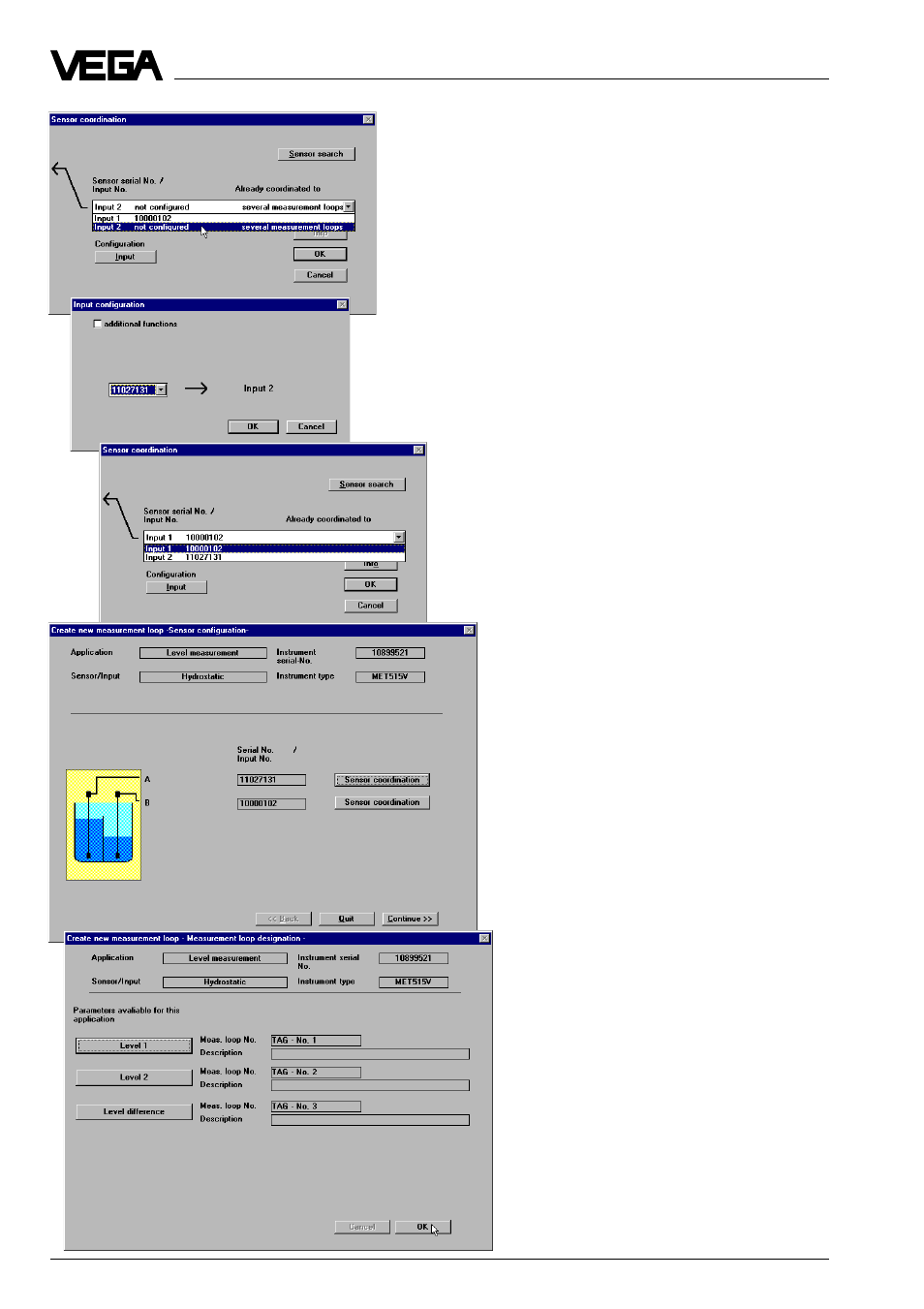

Establishing of a linked measurement loop with VEGAMET 515V
Choose now (do not configure yet) input 2
and click again to
Input.
Choose here the not yet configured sensor
(serial number) and click to
OK.
In the window "Sensor coordination“ you see
that a sensor is coordinated to both inputs.
When you are satisfied with the coordination,
click to
OK.
Also in this window you see again that
both sensors are coordinated. Click
again to
Continue >>.
You have now configured your linked
measurement loop and can click to
OK. Now you reach again the VVO-
main window.
With
Level 1 (TAG1), Level 2 (TAG2)
and
Level difference (TAG3) you
reach windows from which you can
coordinate the outputs of your VEGA-
MET to the measurement loops TAG1
to TAG3. However this is not always
necessary.
