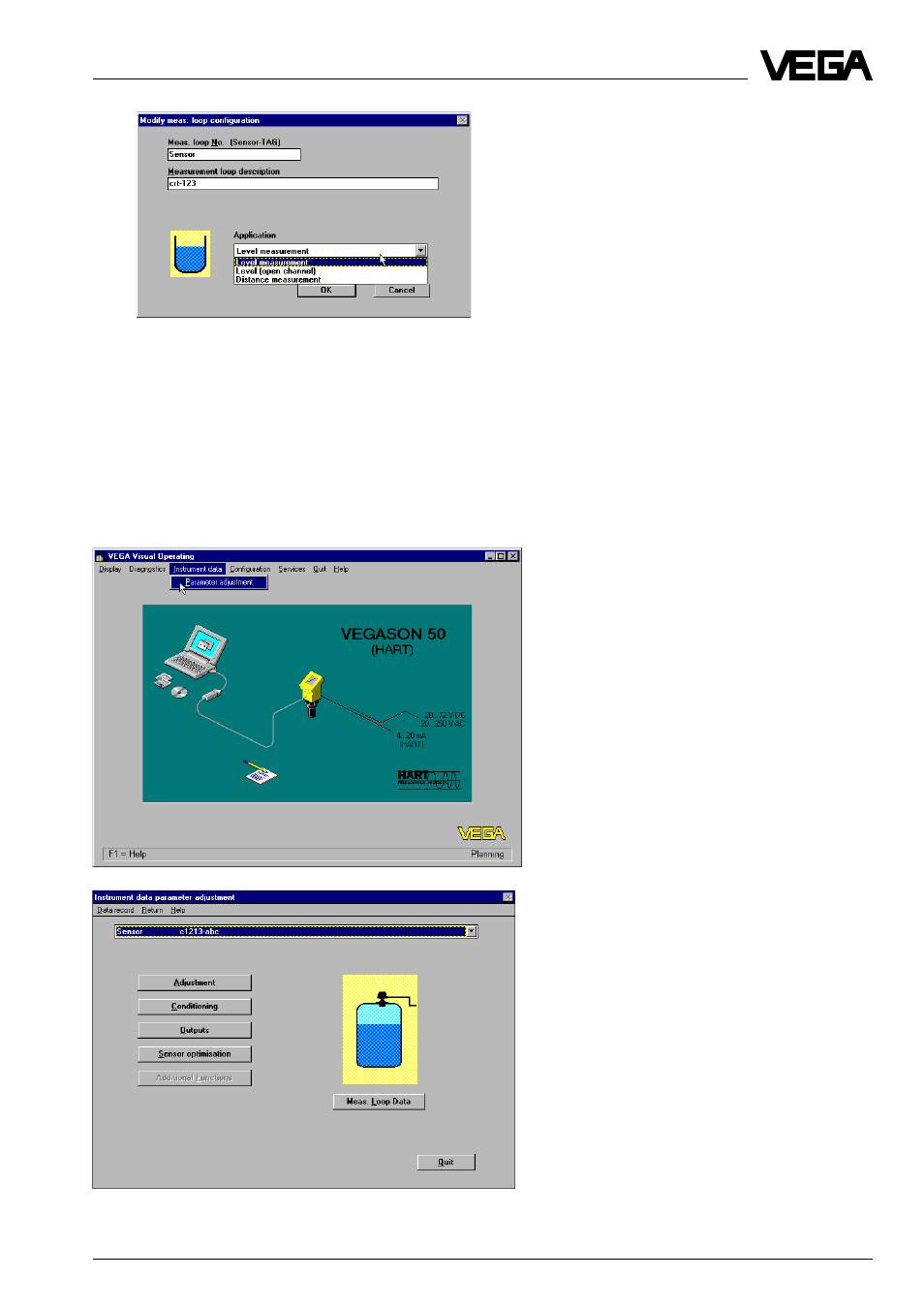

Set-up of an ultrasonic sensor VEGASON 52K
Click to
Instrument data, then to Param-
eter adjustment.
From this window ("Instrument data
parameter adjustment“) you reach all
submenus of the sensor. Just try the
buttons with the functions
Adjustment,
Conditioning, Outputs and Sensor opti-
misation. Between these functions you
will always reach again the window
"Instrument data parameter adjustment“.
By clicking to
Meas. Loop Data you can
have a look to the actual sensor values
as well as to the saved min. and max.
values (pointer function).
6.2 Sensor parameter adjustment
You can give another name to the measure-
ment loop (max. 16 figures) and a measure-
ment loop description. A clear name will be
helpful later on when you adjust several sen-
sors or measurement loops with VVO. State
under "Application“ if you want to create a
level or process pressure measurement.
With
OK you reach again the window VEGA
Visual Operating.
In the following explanations it is assumed
that the application "Level measurement" was
chosen. With "Process pressure measure-
ment" the adjustment slightly differs from the
following demonstration.
