24 VEGA Visual Operating
Set-up of a signal conditioning instrument VEGAMET 614
9 Set-up of a signal conditioning instrument VEGAMET 614
9.1 Configuration measuring system
Connect the plugs of VEGACONNECT
2 to the CONNECT-sockets of the sig-
nal conditioning instrument (as de-
scribed under "3.1 VVO on signal
conditioning instrument“). Then start
VVO. When the signal conditioning
instrument has been connected with
already started VVO, push the function
key

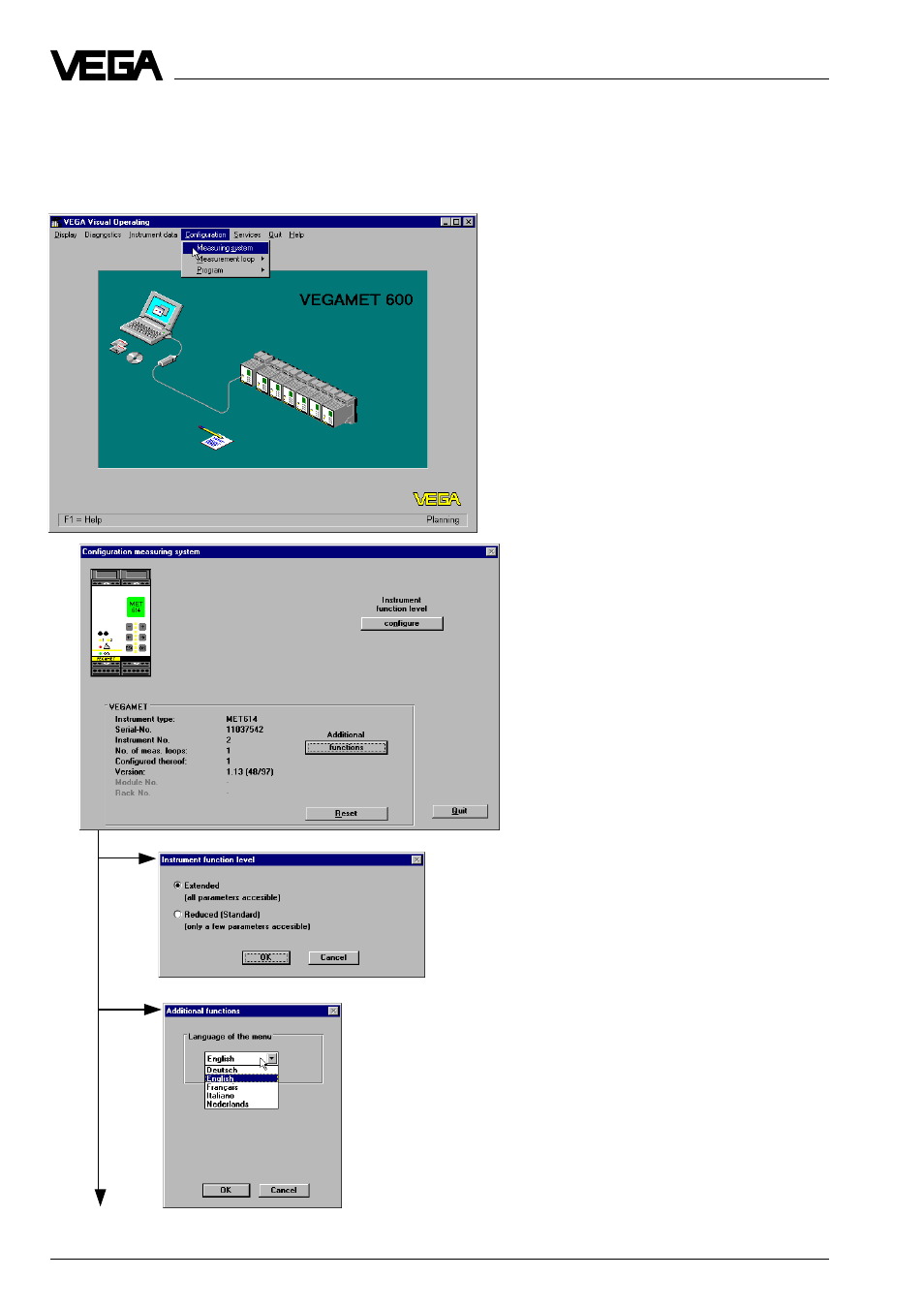

F8 on the PC. Then your monitor
should show this picture. First click to
Configuration and then to Measuring
system to configure VEGAMET.
From the window "Configuration
measuring system“ you can carry
out different adjustments for VEGA-
MET.
With reduced instrument function level only
the most important functions of the signal
conditioning instrument are accessible (see
also operating instruction VEGAMET 614).
The change to "Reduced“ is not possible with
VEGAMET 515, 515V, 515D, 515VD.
Here the language of the VEGAMET-display
will be adjusted. The VVO-language is unaf-
fected.
