Set-up of a signal conditioning instrument VEGAMET 614

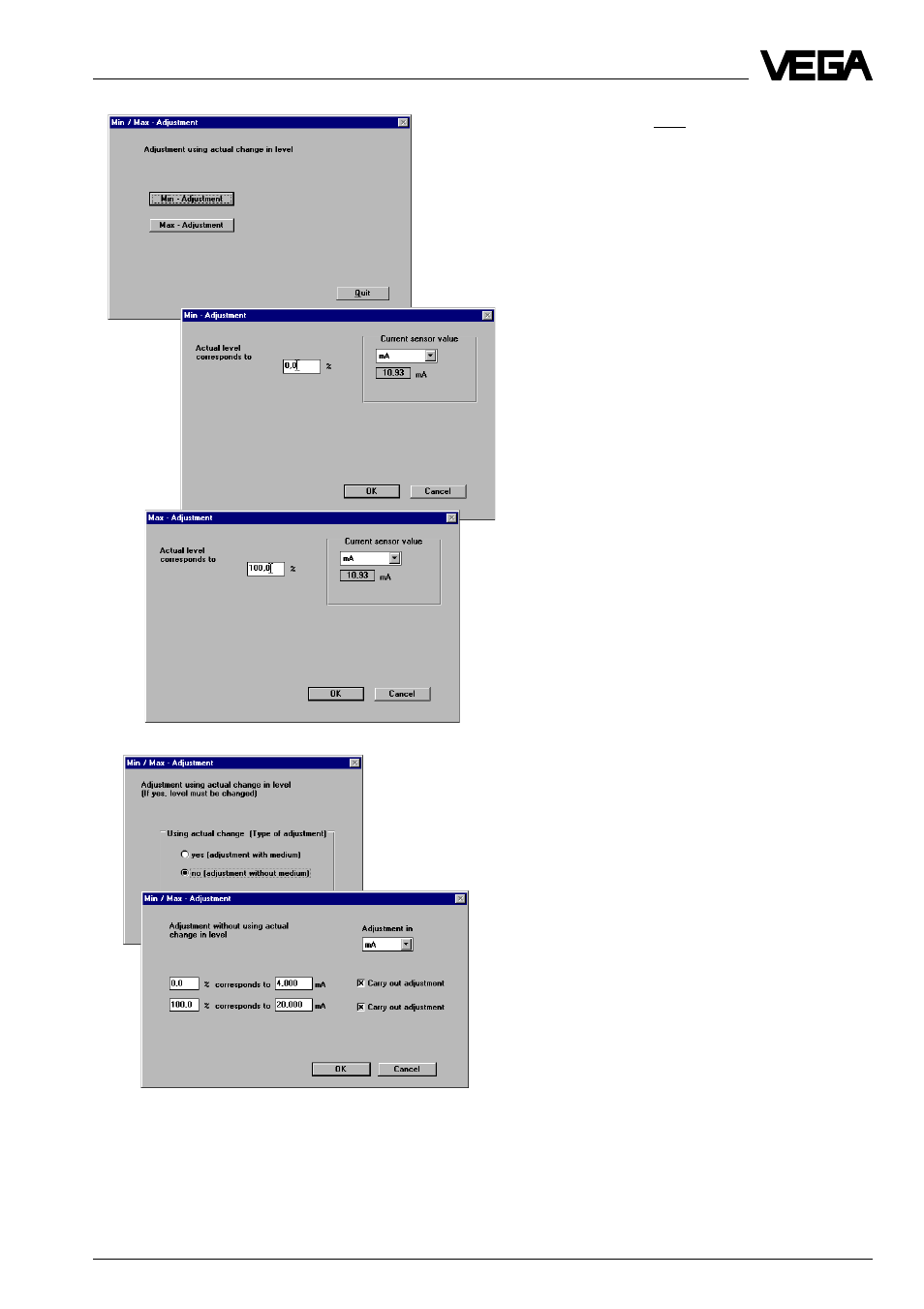

For the adjustment with medium you have to
know the actual level in percent and it should
be possible to modify the level.
If e.g. the vessel is empty, click to
Min-
Adjustment. Enter in the appropriate field
"0,0“. Then click to
Save. The Min-adjust-
ment is carried out and you return to the
window "Min-/Max-Adjustment“.
When the vessel is full, choose
Max-Ad-
justment, enter in the appropriate field
"100,0“ and click to
Save.
The min. and max. adjustment with medium
can be also carried out with levels of e.g.
25 % and 80 %. The difference of the adjust-
ment points however should be as big as
possible.
If you have chosen in the window "Adjust-
ment“
Adjustment without medium, the win-
dow appears in which you enter the
appropriate pressure values for 0 % and
100 %-filling. Then click to
OK and then to
Quit. You now have again the window "Instru-
ment data parameter adjustment“ in front of
you.
