7

Gas sampling and gas conditioning technology

4-3.1-ME

6

INTRODUCTION

This unit, mounted on an aluminium plate, provides a completely pre-installed sample gas conditioning
for continuous use that can be excellently integrated within gas analysis systems.
Its compact construction only takes up little space. The SS-5.. units are ready for use in a few minutes.
This makes time-consuming procurement of individual components and assembly superfluous.


7

APPLICATION

The gas conditioning and sampling system is ideally suited for both intermittent and continuous
operation.

The components of the system SS-5... are intended for "standard use." We also provide a wide range
of additional equipment and other components if special measurements are required.

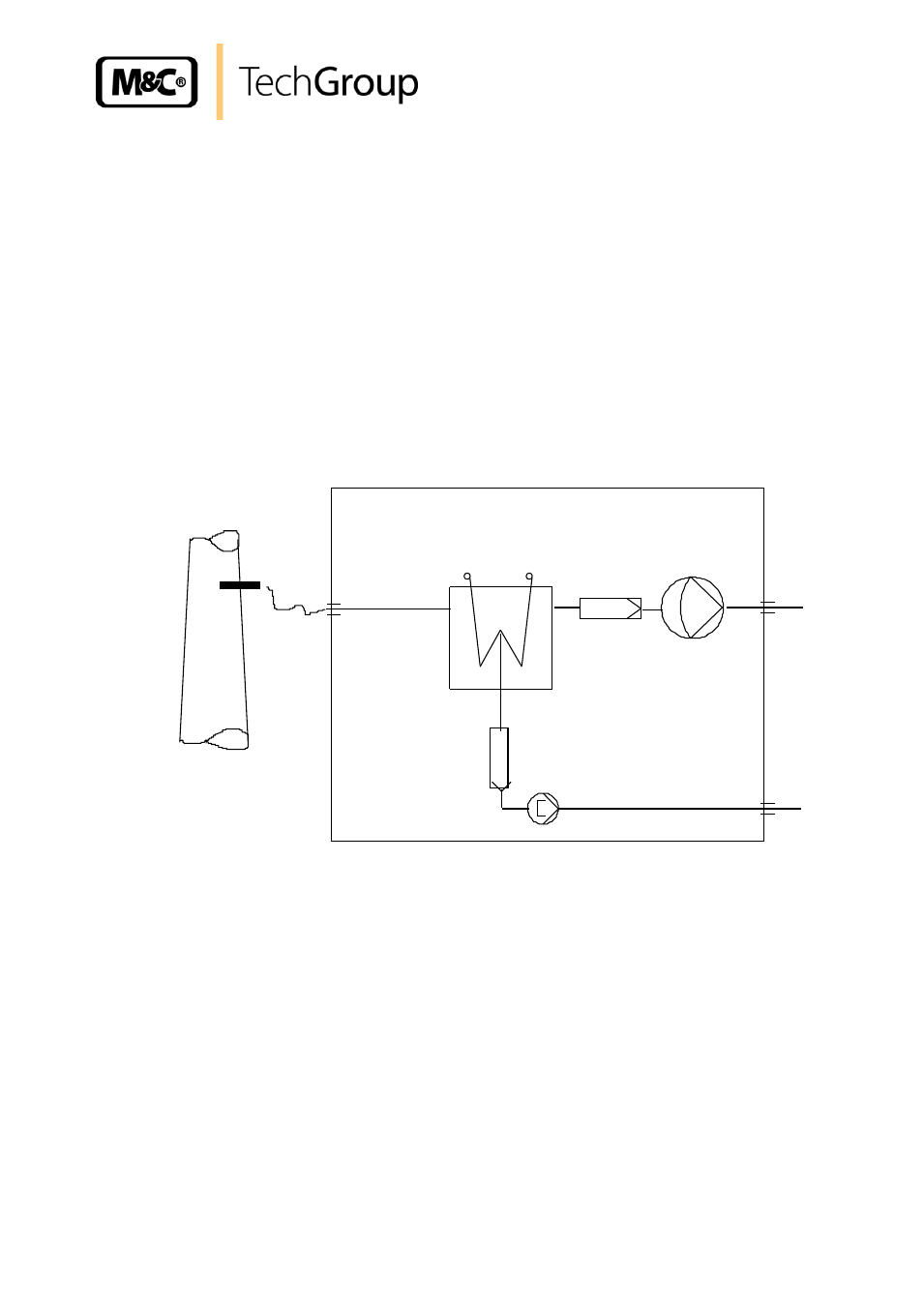

Figure 1

Flow sheet of the SS-5 and SS-5/3

 Gas sample probe, e.g. SP2000-H
 Gas sample line, e.g. heated
 Gas cooler ECP1000 or ECP3000
 Fine filter FP-2T, filter element fineness 2 µm
 Sample gas diaphragm pump N3KPE or N9KPE
 Pre-filter PF 2
 Peristaltic pump SR25.1 for continuous removal of condensate
