8
Gas sampling and gas conditioning technology 10-5.1-ME
10 TECHNICAL DATA
Mains plug

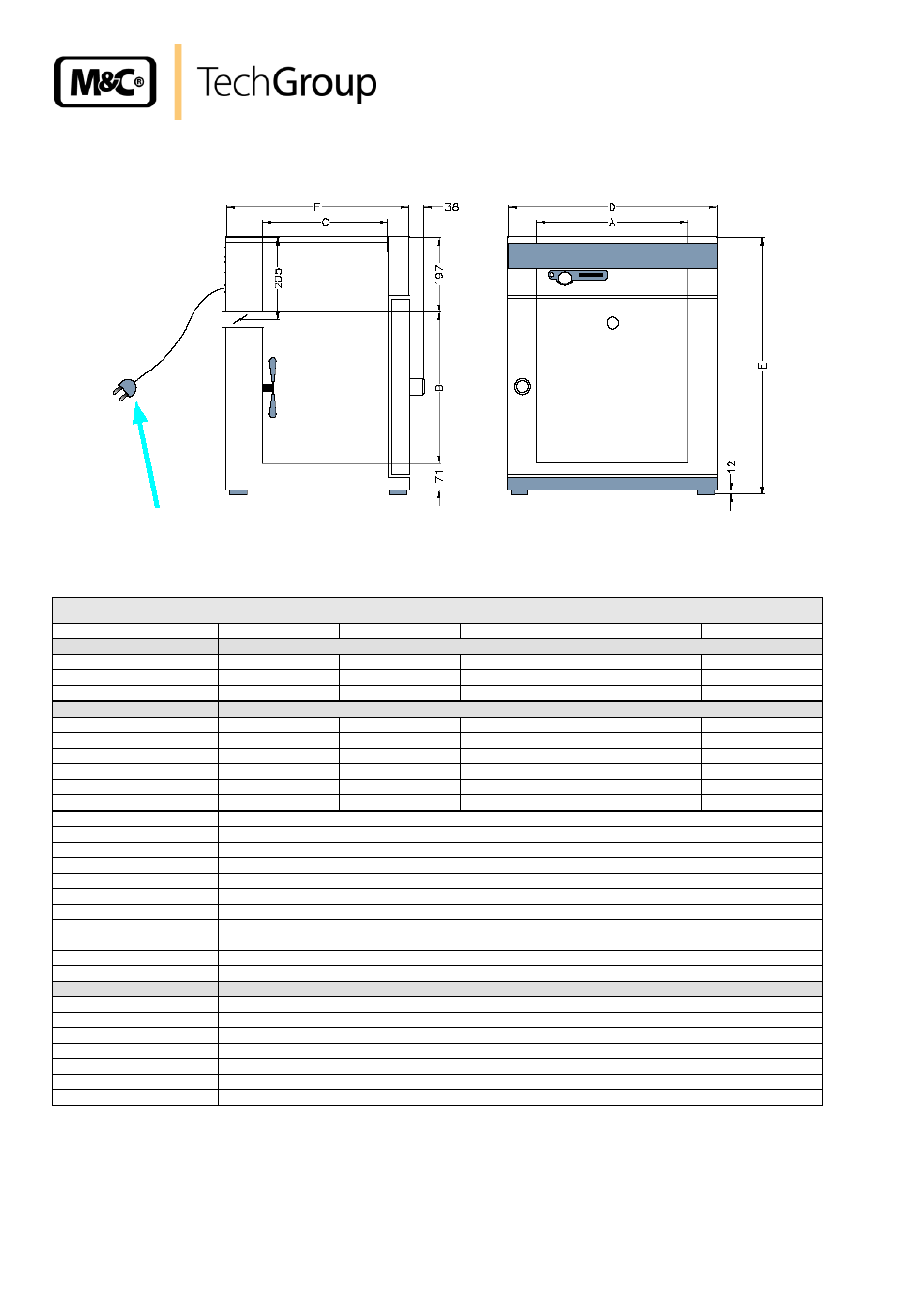

Figure 1 Dimensions
Heated protective housing
Series PAS PAS-100 PAS-200 PAS-300 PAS-400 PAS-500
Assembly interior:
Width A mm 320 400 480 400 560
Height B mm 240 320 320 400 480
Depth C mm 175 250 250 330 400
External dimensions
Width D mm 470 550 630 550 710
Height E mm 520 (720)* 600 (800)* 600 (800)* 680 (800)* 760 (960)*
Depth F mm 325 400 400 480 550
Weight empty kg 20 28 30 35 50
Ventilator no no no yes yes
Power consumption 600W 1100W 1200W 1400W 2000W
Power supply 230V 50/60Hz other voltages on request
Electrical connection 3m mains cable with an earthing-pin plug; a suitable terminal box is provided for built-in components
Material of cabinet Stainless steel 304
Mounting Wall-mounting with optional wall console
Temperature control Electronically, microprocessor controlled, incl. a solid-state relay
Temperature display Digital LED display
Temperature limit Temperature selection control and limiter in accordance with DIN 12880, protective classification 3.1
Temperature selection Lockable rotary button, range: +20 to +200°C *Standard
Operating temperature >5°C above ambient temperature up to +200°C
Ambient temperature Max. +40°C
Case protection IP20 EN 60529
Options:
Observation window in door
External temperature control (2xPT100 internal)
Min.-temperature monitoring, potential free, contact rating 250VAC 16A
EEx-explosion-proof heating up to +120°C inner operating temperature
Steam heating
Wall bushings for sample pipes
Built-in components specific to the system
Dimensions in () are corresponding to the total height incl. the wall console
