10
Gas sampling and conditioning technology 6-1.2.1ME
N O T E !
Pumps have mechanical moving parts that can induce vibrations.
To prevent damages at the pump or at peripheral components /
facilities as well as minimizing noise development an appropriate
vibration decoupling is necessary. For this M&C can deliver e.g.
anti-vibration pads.
This explicit is also valid for the connection of the sample lines at
the pump head.
10.1 MECHANICAL INSTALLATION


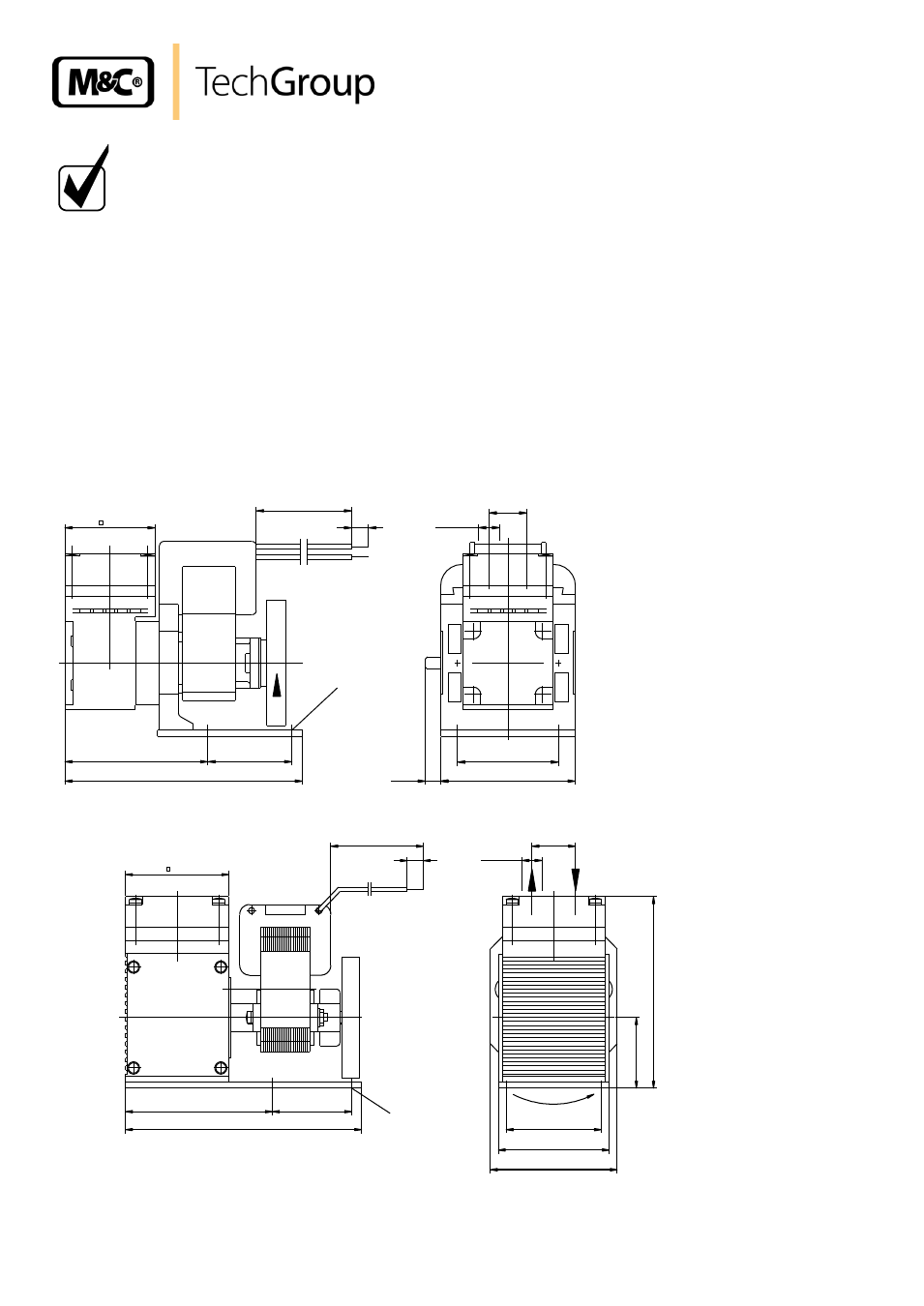

Figure 1 and figure 2 show the dimensions of the pumps.

When mounting the pump provide sufficient air ventilation.

Avoid acidents caused by the fan.

Install the pump at the highest place in the system and/or with the pump head showing down. This
avoids that condensate can be assembled inside the pump head.
43
900
8
68 40
113
G1/8“
18
7,2
48
64
4xM4
Figure 1 Dimensions (mm) N3/5 KPE
4xM4
Drehrichtung
52
900
8 G1/8“
22
74 40
119 48
57
64
95
6
31,5
Figure 2 Dimensions (mm) N9 KPE
