You can change the sort order of elements in the grid by clicking the column header for the
parameter according to which you want to sort the elements.

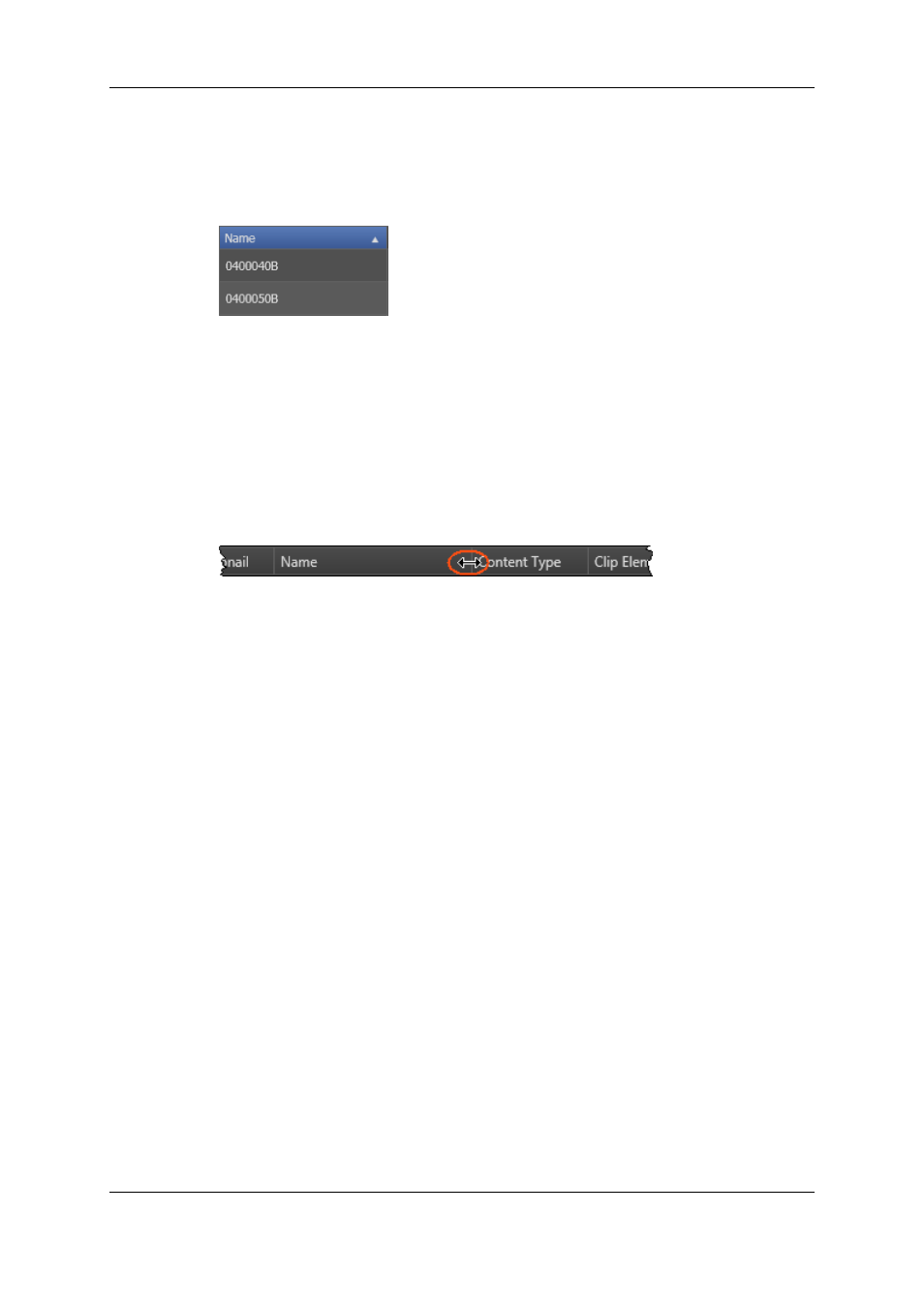

The column header which is used for sorting is highlighted in blue. The little triangle
indicates the sorting order. Clicking the column header again changes the sorting order
from ascending to descending or vice versa.
Organizing Columns
Columns can be resized and/or re-ordered. This new organization is automatically saved
and remembered. However, it is possible to reset the column organization to the default
organization.
Resizing Columns
A column can be resized by using the mouse pointer over columns intersection and
dragging it to the right or to the left.
Selecting Columns to Display
To select the columns to display in the grid, proceed as follows:
1. Right-click the column header area.
A menu is displayed.
2. Select Organize.
The Select Columns window opens and shows the list of columns in the current order.
3. To select the column(s) you wish to add to the view, do one of the following:
◦ in the left pane, double-click the column(s) you wish to add to the view
◦ select them in the left pane and click the right blue arrow
◦ drag them onto the Visible Columns area.
Use CTRL + click to select multiple columns.
Use SHIFT + click to select a range of columns.
4. To select the column(s) you wish to remove from the view, do one of the following:
◦ on the right pane, double-click the column(s) you wish to remove from the view
◦ select them in the Visible Columns area on the right pane and click the left blue
arrow
◦ drag them onto the left pane.
Use CTRL + click to select multiple columns.
Use SHIFT + click to select a range of columns.
5. Click OK to confirm the changes.
