Example: 1slsm 3ph + 1rec + 2play (xrec) – EVS XTnano Version 11.02 - July 2013 Configuration Manual User Manual
Page 75
Example: 1SLSM 3PH + 1REC + 2PLAY (XREC)

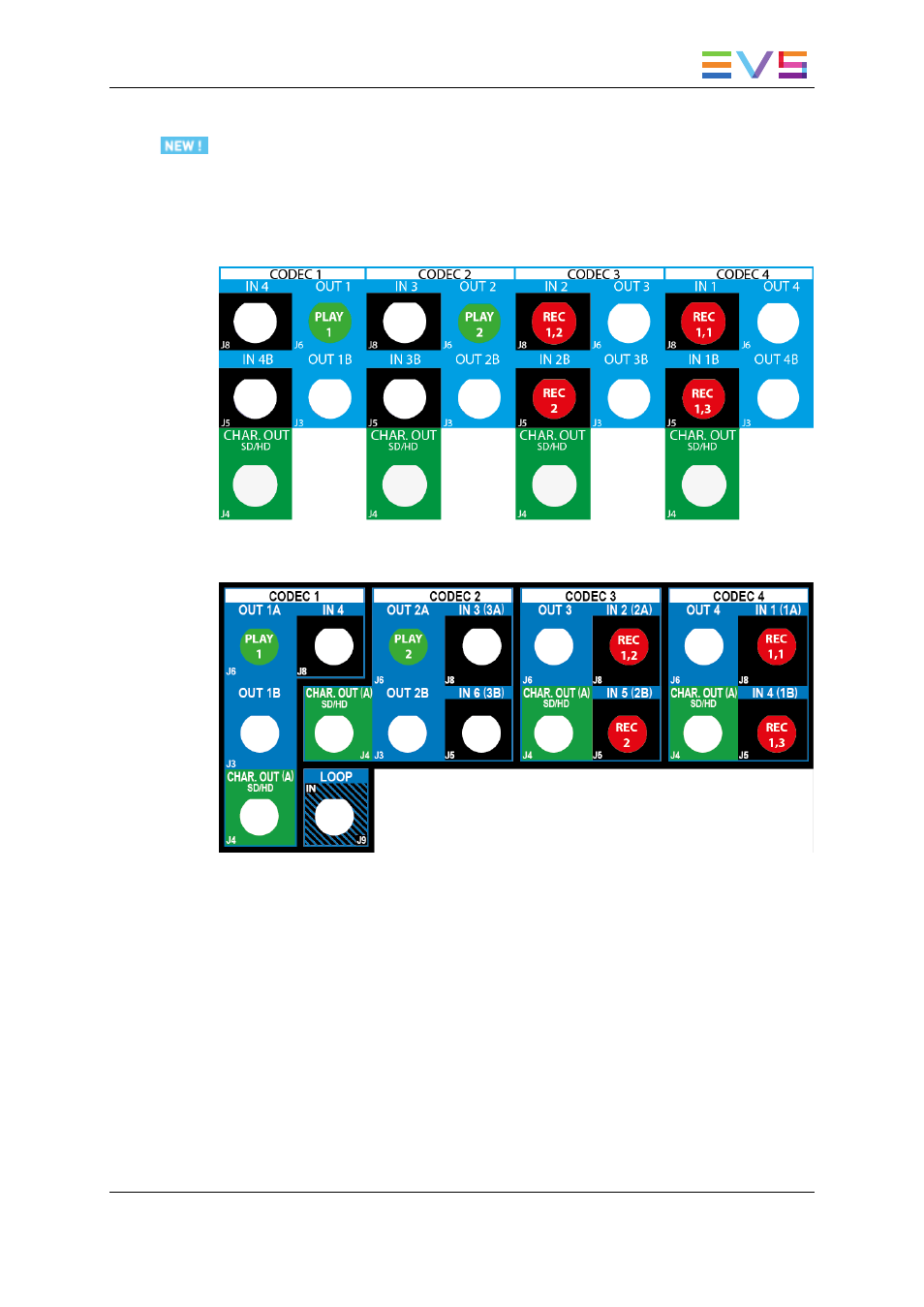

The BNC connectors to be used as record and play channels in an SLSM configuration
with 1SLSM 3PH + 1REC + 2PLAY in XREC mode need to be cabled as shown below:
Rear panels in 2013
Rear panels before 2013
CONFIGURATION MANUAL XTnano Server 11.02
3. Multicam Configuration
67
