Example: 4REC + 2PLAY XREC

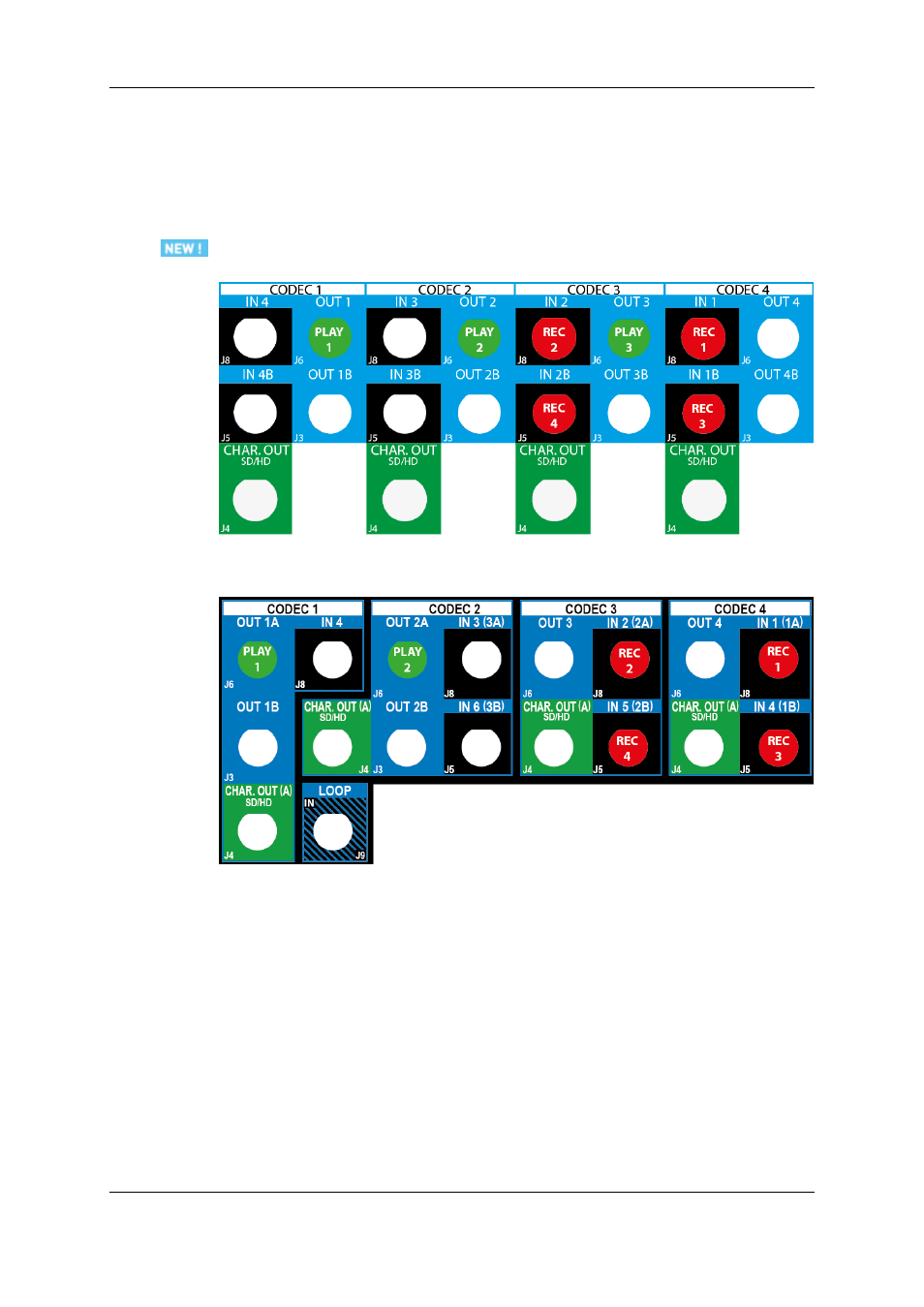

The BNC connectors to be used as record and play channels in a 4REC 2PLAY XREC
configuration need to be cabled as shown below:

Rear panels in 2013

Rear panels before 2013

60

3. Multicam Configuration

EVS Broadcast Equipment S.A.

Issue 11.02.A July 2013
