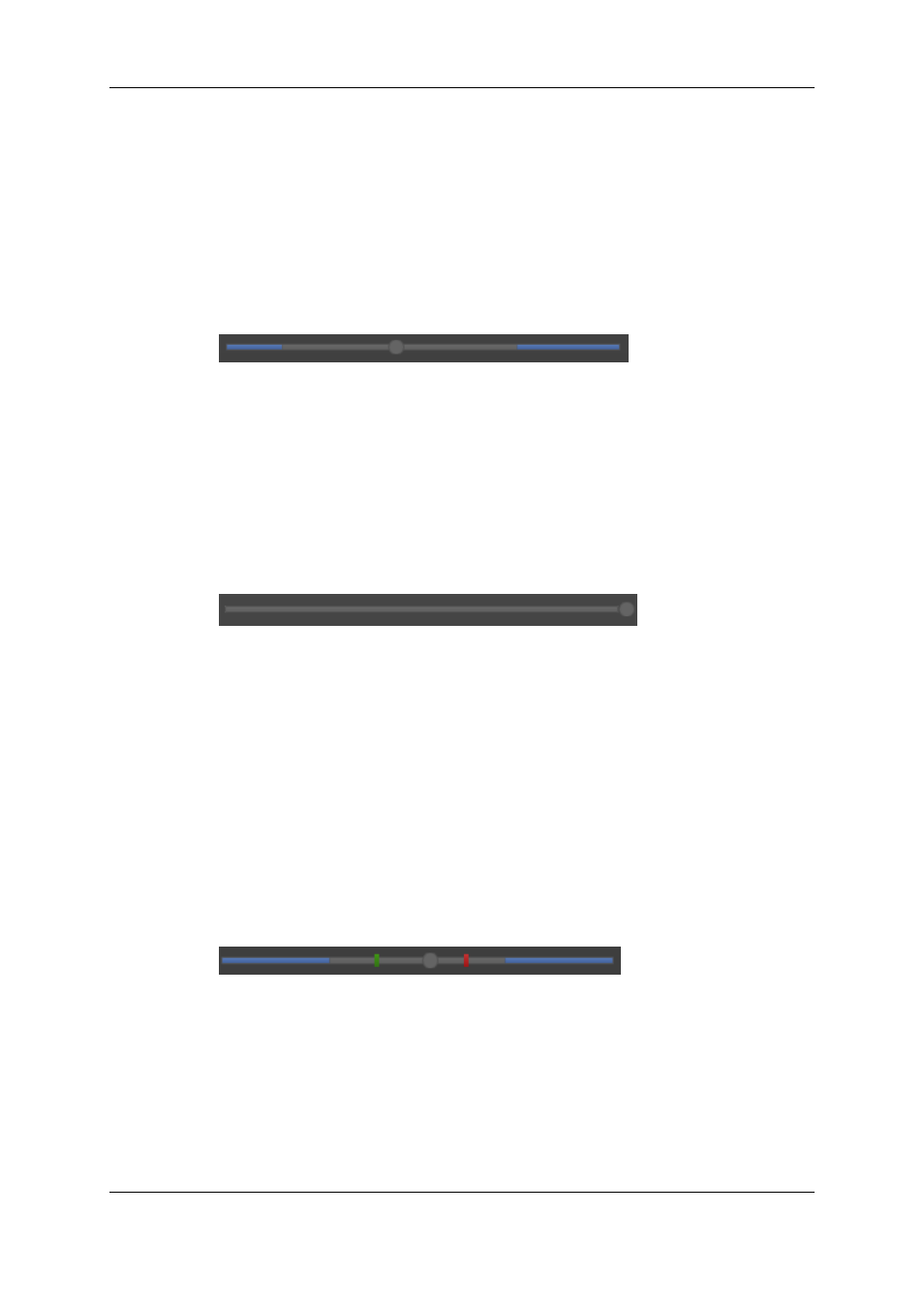

2.4.6. Jog Bar
The jog bar display differs according to the loaded element.
Clip
When a clip is loaded, the jog bar is a graphical representation of its duration and its
guardbands.
• The blue sections represent the guardbands before the IN point and after the OUT
point.
• The gray section between the guardbands represents the clip length, between the IN
point and the OUT point.
• The bullet indicator shows the current relative position in the clip.
Train
When a local train is loaded, only the gray section is displayed:
Recording Ingest
When an ingest being recorded is loaded, the bullet indicator cannot be moved further
to the right than the current timecode position being recorded.
Log
When a log is loaded, the bullet indicator stands on the log timecode.
Clip being Created
When a clip is being created, the following indicators appear :
• A green position indicator is shown when the IN button has been clicked and
represents the temporary IN point position until the UPDATE CLIP button or the
SAVE CLIP button is clicked.
• A red position indicator is shown when the OUT button has been clicked and
represents the temporary OUT point position until the UPDATE CLIP button or the
SAVE CLIP button is clicked.
