Issue 2.19.A XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
34

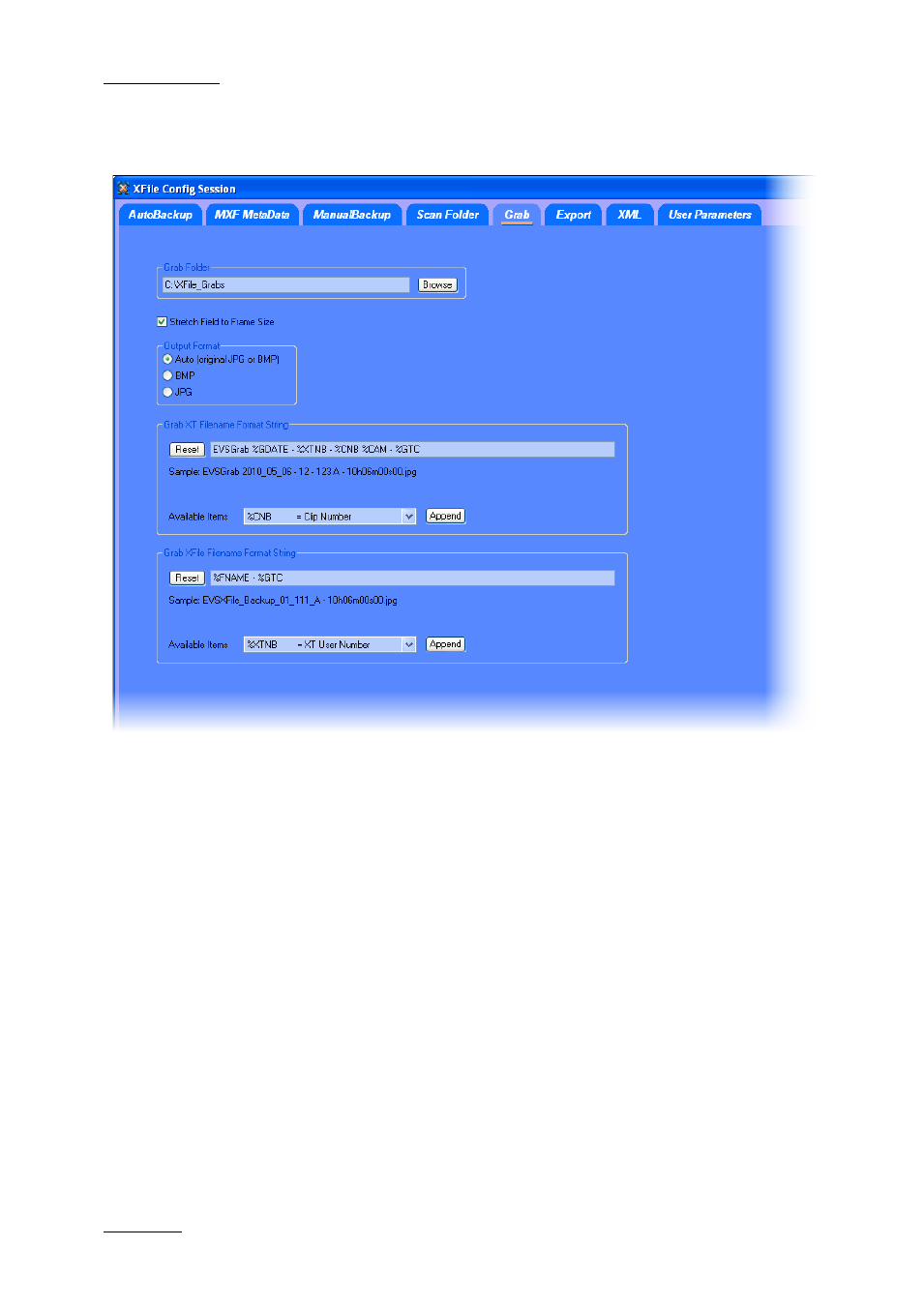

3.3.5 Tab 5 – Grab
The Multicam operators, from their remote control panel, are able to select a video
frame/field and to grab a picture. A Default XFile must be defined in the Setup menu of
the Multicam - See Multicam documentation for more details. Those pictures are created
by the XFile and stored on the disks of this XFile.
Grab Folder
Select the destination folder to save the JPG/BMP files.
Stretch Field to Frame Size
Enabling this option will automatically stretch the ‘field image’ to the original ‘frame size’.
Output Format
The automatic selection of the output format depends on the previous option. If the
images are not modified by stretching, the JPG format is defined and if the images are
modified by stretching, the BMP format is selected. The user can force the selection of
one format.
