Prestige 334 User’s Guide
Chapter 8 Static Route Screens 102
C
H A P T E R
8
Static Route Screens
This chapter shows you how to configure static routes for your Prestige.
8.1 Static Route Overview
Each remote node specifies only the network to which the gateway is directly connected, and
the Prestige has no knowledge of the networks beyond. For instance, the Prestige knows about
network N2 in the following figure through remote node router R1. However, the Prestige is
unable to route a packet to network N3 because it doesn't know that there is a route through the
same remote node router R1 (via gateway router R2). The static routes are for you to tell the
Prestige about the networks beyond the remote nodes.

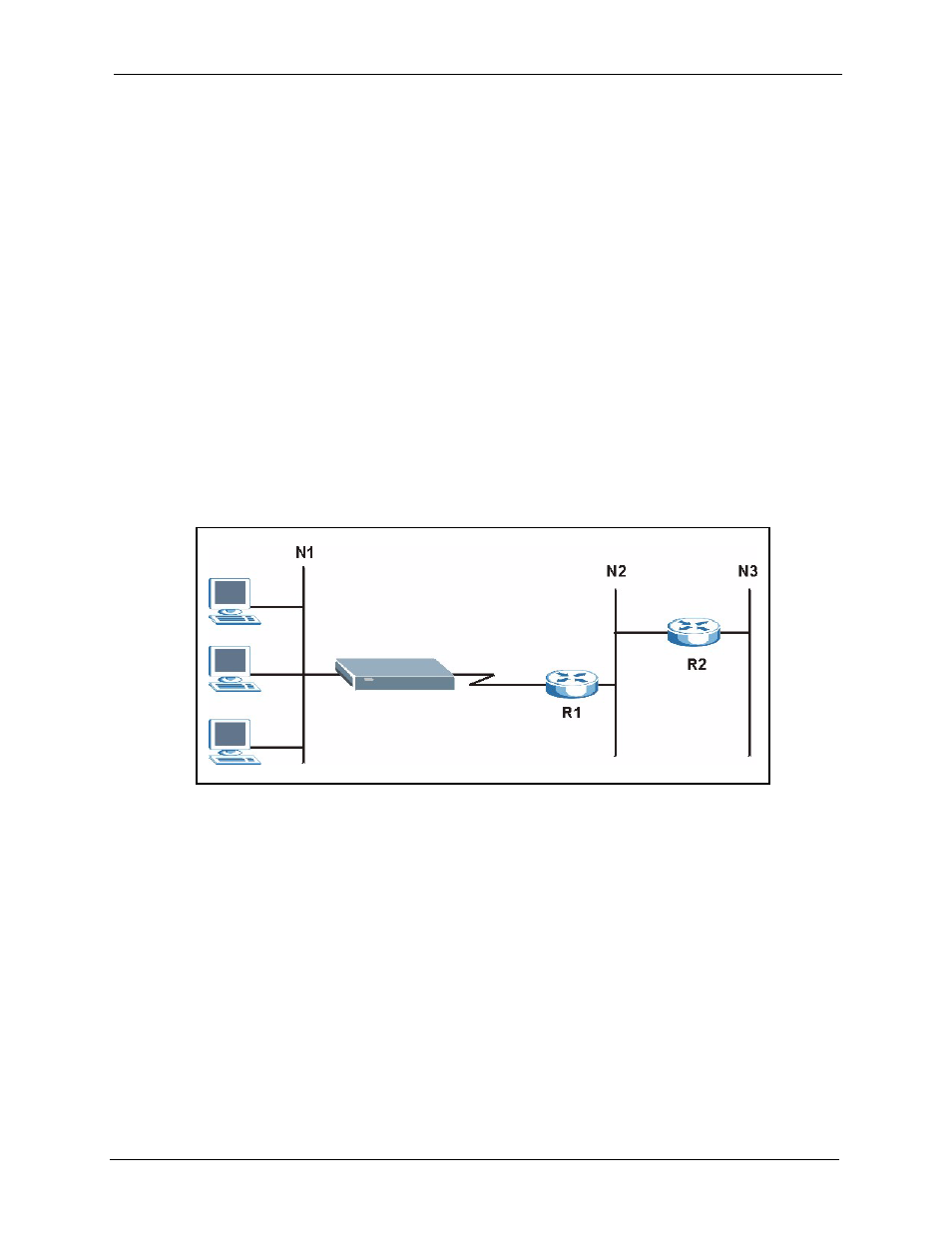

Figure 35 Example of Static Routing Topology
8.2 Configuring IP Static Route
Click STATIC ROUTE to open the screen as shown next.
