Prestige 310 Broadband Sharing Gateway
Hardware Installation & Initial Setup 2-2
LEDs Function Indicator
Status
Active Description
Off The WAN Link is not ready, or has failed.
On The WAN Link is ok.
WAN WAN Green
Flashing The 10M WAN link is sending/receiving packets.
2.2 Prestige 310 Rear Panel and Connections
The figure below shows the rear panel of your Prestige 310 and the connection diagram.

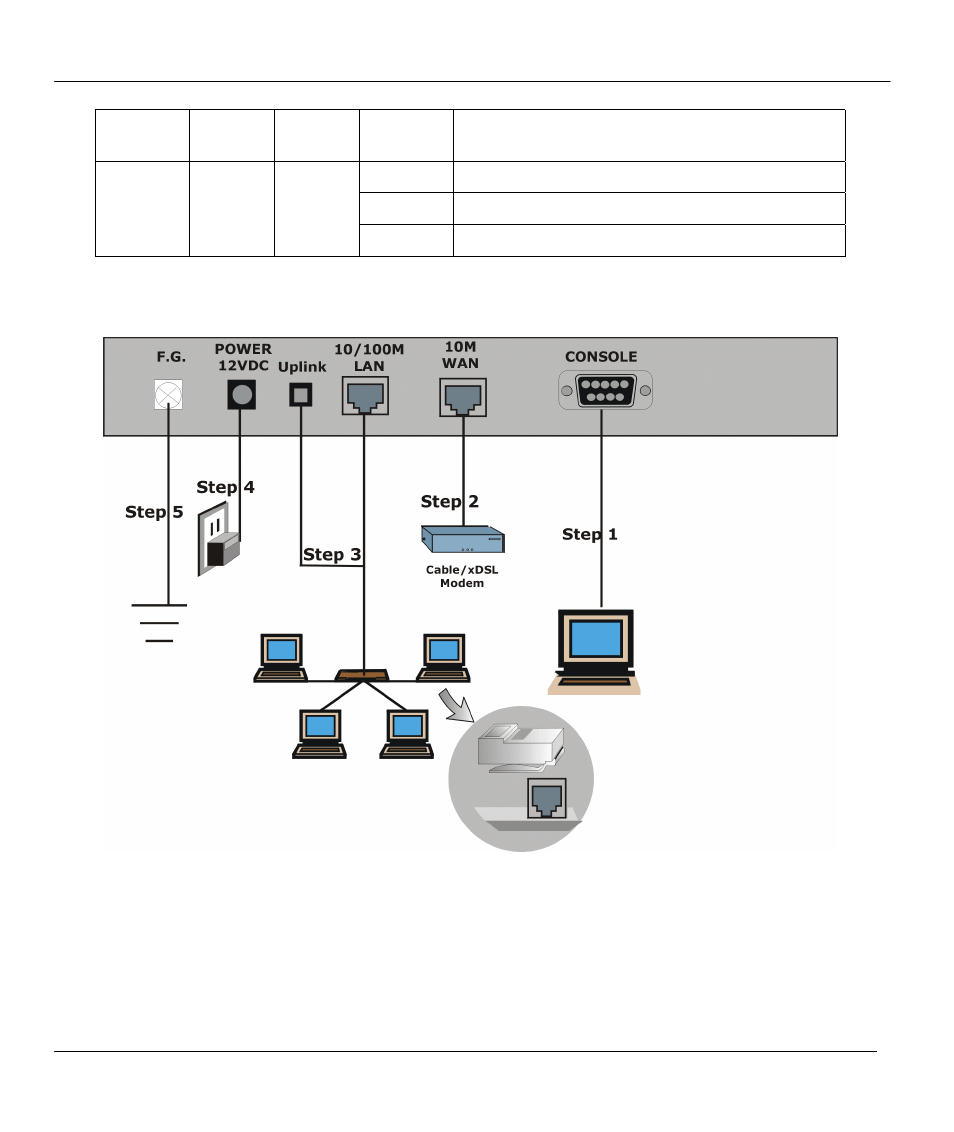

Figure 2-2 Prestige 310 Rear Panel and Connections
This section outlines how to connect your Prestige 310 to the LAN and the WAN. In the case of connecting a
Cable Modem you must connect the coaxial cable from your cable service to the threaded coaxial cable
connector on the back of the cable modem. Connect an xDSL Modem to the xDSL Wall Jack. Please also see
Appendix C for important safety instructions on making connections to the Prestige.
Step 1.
Connecting the Console Port
