Prestige 310 Broadband Sharing Gateway

Hardware Specifications

Appendix C: Hardware Specifications

Power Specification

I/P AC 120V / 60Hz ; O/P DC 12V 1200 mA

MTBF

100000 hrs

Operation Temperature

0º C ~ 40º C

Ethernet Specification for
WAN

10Mbit Half / Full Manual Setting

Ethernet Specification for
LAN

10/100 Mbit Half / Full Auto-negotiation

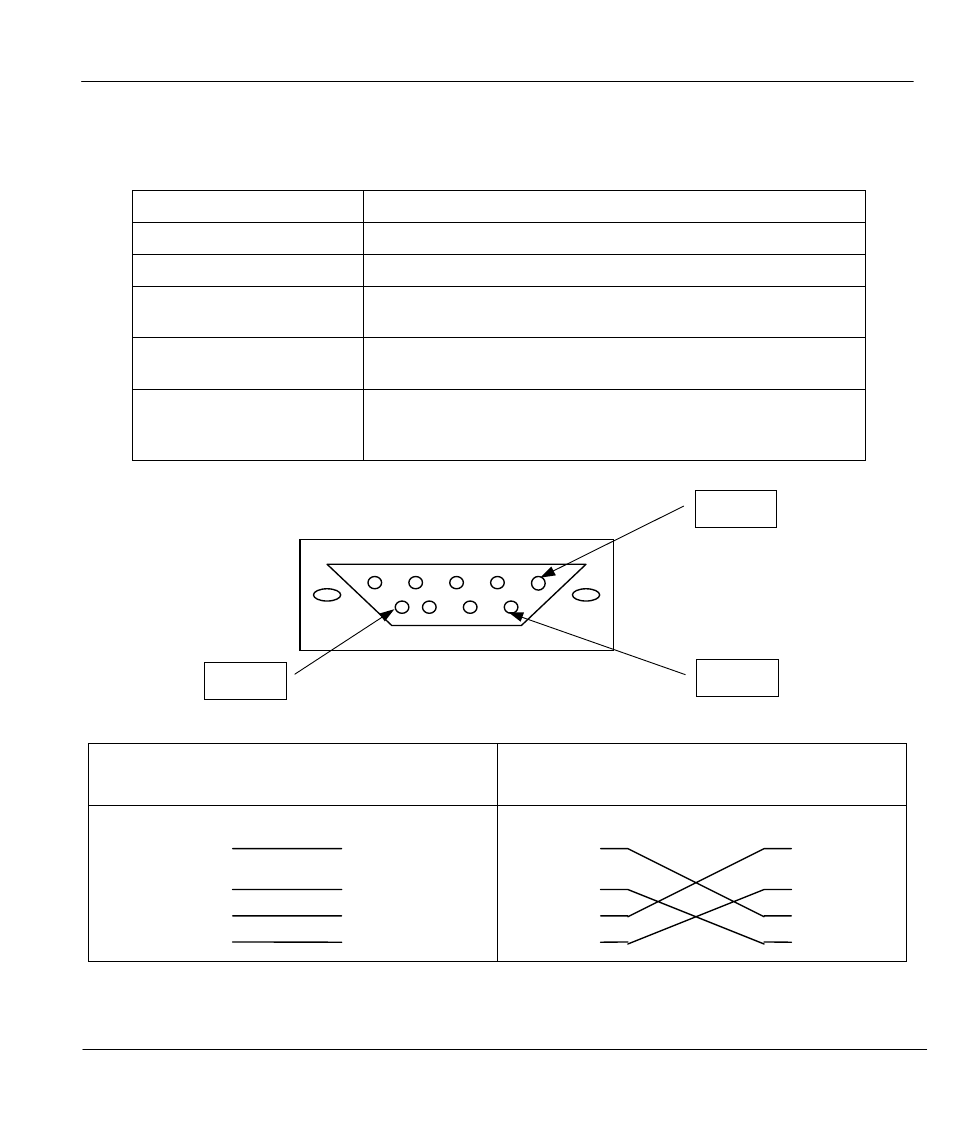

Console Port RS – 232

Pin 1 = NON ; Pin 2 = DTE-RXD; Pin 3 = DTE-TXD; Pin 4 =
DTE-DTR; Pin 5 = GND; Pin 6 = DTE-DSR; Pin 7 = DTE-RTS;
Pin 8 = DTE-CTS; PIN 9 = NON. See Figure below

WAN/LAN Cable Pin Layout:

Straight-Through

Crossover

(Switch)

1 IRD +

(Adapter)

1 OTD +

(Switch)

1 IRD +

(Switch)

1 IRD +

2 IRD -

2 OTD -

2 IRD -

3 OTD +

3 IRD +

3 OTD +

6 OTD -

6 IRD -

6 OTD -

Pin1

Pin 6

Pin 9
