Prestige 100WH Internet Access Router
1-6 Chapter 1 Getting to Know Your Internet Access Router
1.4.3 WAN Port Status LEDs
CD (Carrier Detect) signal is sent by the WAN device to indicate that line negotiation is
successful and that it is ready for data transfer.
RTS (Request to Send) and CTS (Clear to Send) are hardware flow control signals. RTS is
from the DTE (the Prestige) while CTS is from the DCE (the WAN device).

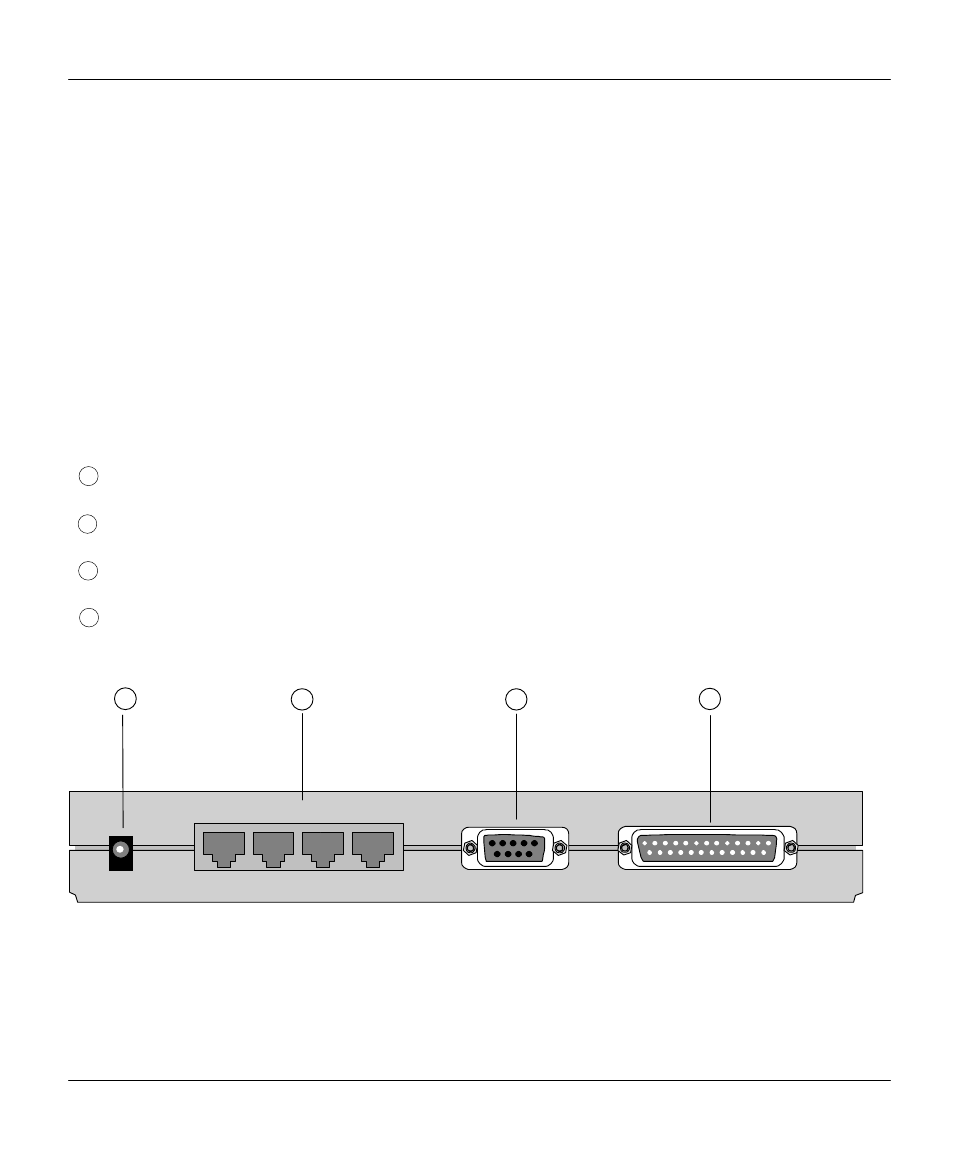

1.5 Prestige 100WH Back Panel
The following figure helps you identify the rear panel ports of your Prestige 100WH. Refer to
this diagram when attempting to make connections.
1
:POWER = Input power connector to the AC adapter.
2
:ETHERNET = 4 x RJ-45 ETHERNET 10Base-T ports.
3
:CONSOLE = DB-9 (female) Console port.
4
:WAN = DB-25 (male) WAN port.
Figure 1-2. Prestige 100WH Back Panel
POWER
CONSOLE
ETHERNET
4 3 2 1
1 4 3 2
WAN
