Installation
1–40 975-0046-01-01
Installing the Safety Plate
The purpose of the Safety Plate (SP-1) is to prevent accidental contact
with any live circuits or wires within the AC Conduit Box. The Safety
Plate only needs to be installed in the event that the
Sine Wave Plus is
removed. The Safety Plate (SP-1) covers the open end of AC Conduit
Box on the inverter side. It attaches to the base of the conduit box and is
secured by the Sems screws that attach the top cover.
To install the safety plate:
3. Remove the two #8 Sems screws on the top and bottom of the ACCB.
Put these screws is a safe place.
4. Slide the safety plate over the open end of the conduit box inserting
the cover tabs into the slots on the safety plate. Be sure to align the
holes for the screws for resecuring the top cover.
5. Replace the two #8 Sems screws on the top and bottom of the chassis
to secure the Safety Plate into place.
WARNING: Shock Hazard
Be sure to disconnect all DC and AC power before removing the
inverter and installing the safety plate.

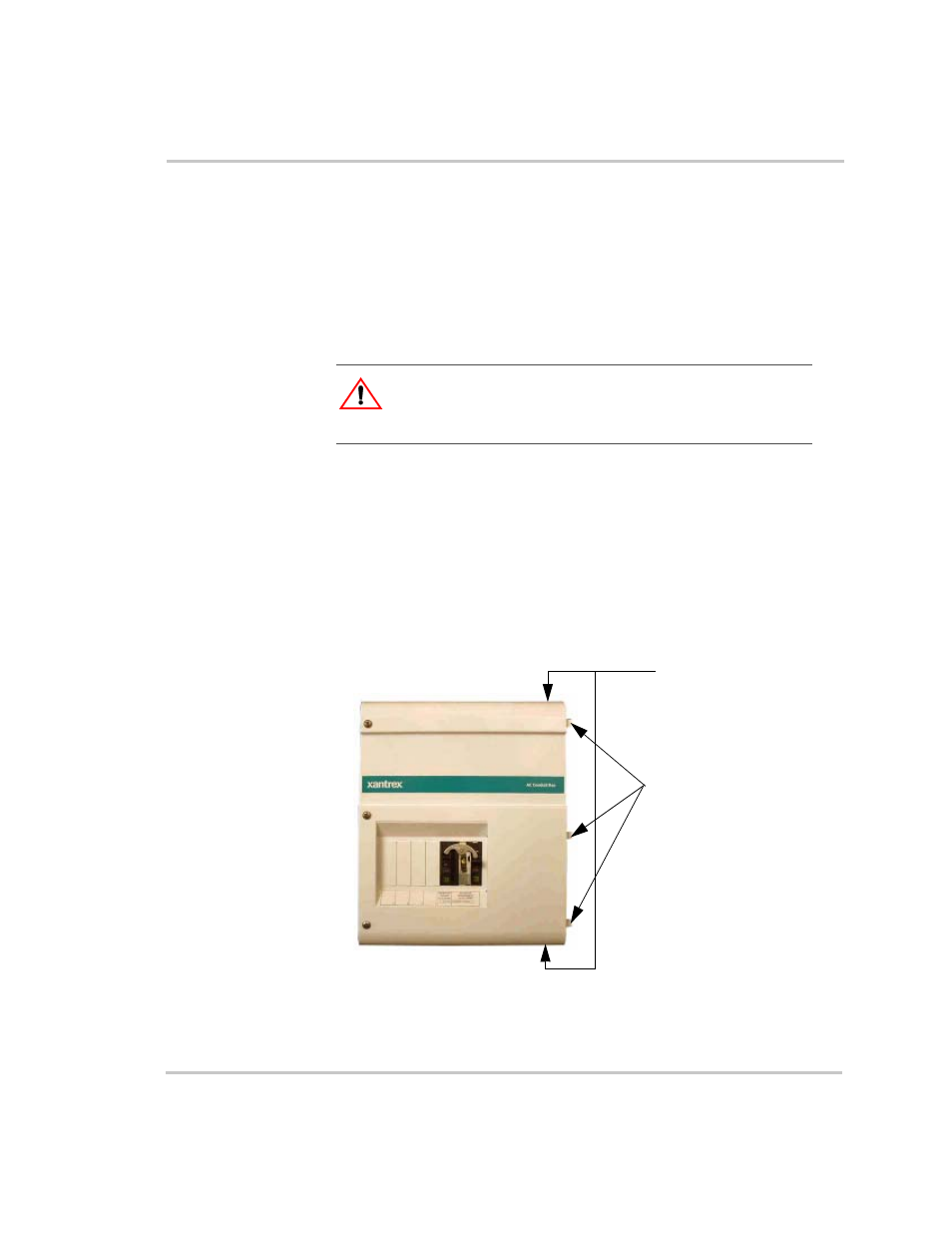

Figure 1-35 Removing the Sems Screws From the ACCB Top Cover
Inverter side
of ACCB
Remove these 2
#8 Sems Screws only
Cover Tabs
