Figure 1-7 – Xantrex Technology ACCB User Manual

Page 22

Installation

1–10

975-0046-01-01

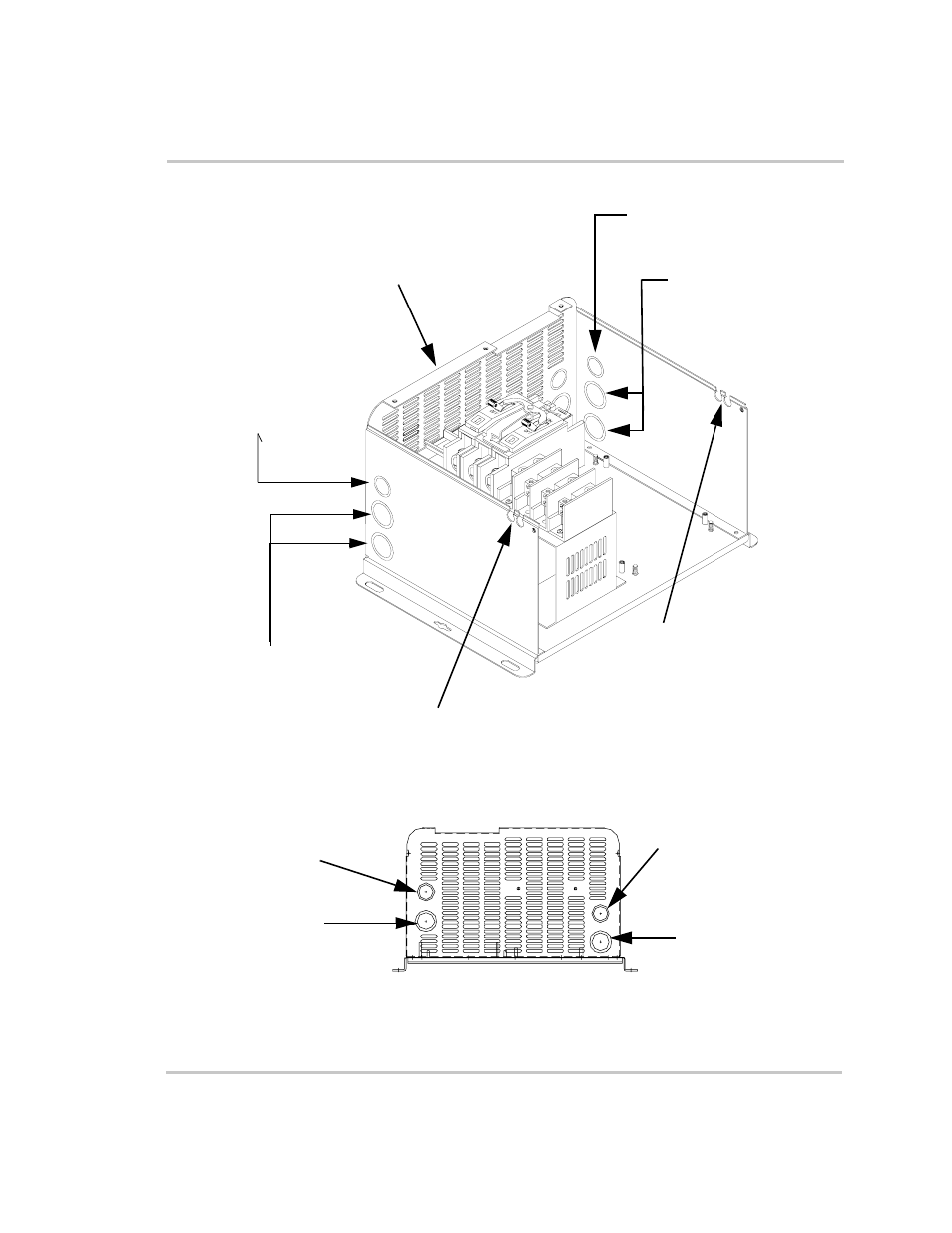

Figure 1-7

ACCB

Knockout Locations

See below for location of
knockouts on vented end.

Vented End Knockouts

3/4" and 1"
(19 mm and 25 mm)
Dual Knockouts (x2)

Slots for optional ISC-S
and ICM cables

1/2" and 3/4"
(13mm and 19 mm)
Dual Knockout

3/4" and 1"
(19 mm and 25 mm)
Dual Knockouts (x2)

1/2" and 3/4"
(13 mm and 19 mm)
Dual Knockout

3/4" and 1"
(19 mm and 25 mm)
Dual Knockout

1/2" and 3/4"
(13 mm and 19 mm)
Dual Knockout

3/4" and 1"
(19 mm and 25 mm)
Dual Knockout

Slots for optional
ISC-S and ICM cables
