Wiring for Off-Grid Applications using an AC Distribution Panel and an Internal Generator Disconnect

975-0046-01-01

1–25

To make the hot connections:
1. Connect the factory-installed hot (black) wire from the Inverter Input

Breaker in the

ACCB

to the AC2 GEN terminal in the inverter.

2. Connect the factory-installed hot wire (black) from the Inverter

Output Breaker in the

ACCB

to the INV OUT terminal in the inverter.

3. Connect a hot (black) wire from the AC OUT in the

ACCB

to the

HOT IN on the AC distribution panel.

4. Connect another hot (black) wire from the generator disconnect

breaker to the AC IN terminal in the ACCB.

5. Connect the hot (black) wire from the generator to the top of the

generator disconnect breaker.

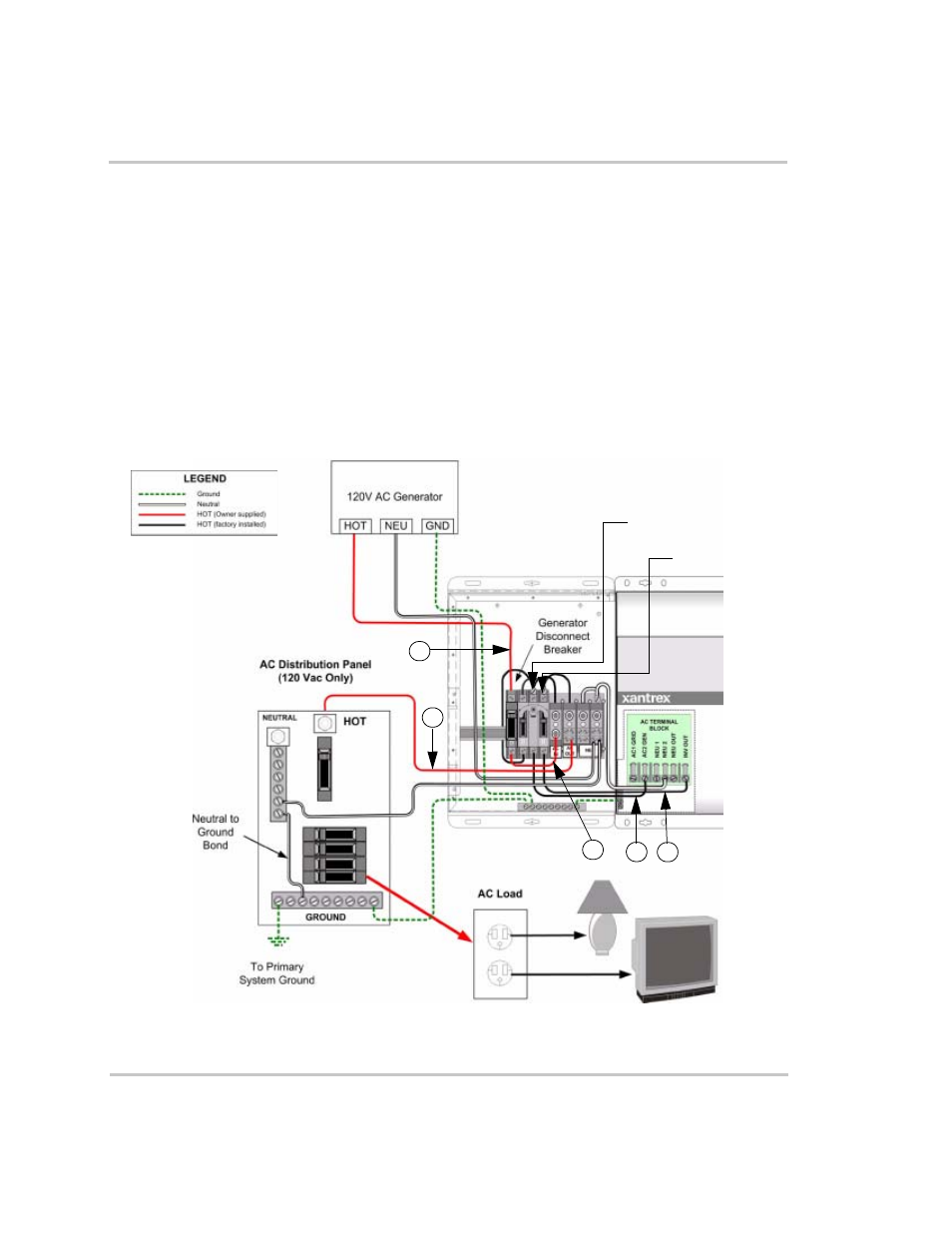

Figure 1-21 Hot Connections for an Off-Grid Application with an AC Distribution Panel and an
Internal Generator Disconnect

Inverter Output

Breaker

Inverter Input Breaker
