Installation
1–32 975-0046-01-01
To make the neutral connections:
1. Ensure there is only one neutral-to-ground bond in the system. In this
case, it would be in the main AC distribution panel.
2. Connect the neutral (white) wire from the neutral bar in the main AC
distribution panel to one of the neutral terminals in the ACCB .
3. Connect a neutral (white) wire from the sub panel to one of the
neutral terminals in the ACCB .
4. Connect the factory-installed neutral wire (white) in the ACCB to the
NEU1 terminal in the inverter.
5. Connect the neutral (white) wire from the generator (or generator
disconnect) and connect it to one of the neutral terminals in the
ACCB .
Important: Ensure there is only one neutral-to-ground bond in the entire
system. See the Sine Wave Plus Inverter/Charger Owner’s Manual for additional
information regarding the neutral-to-ground bond requirements.

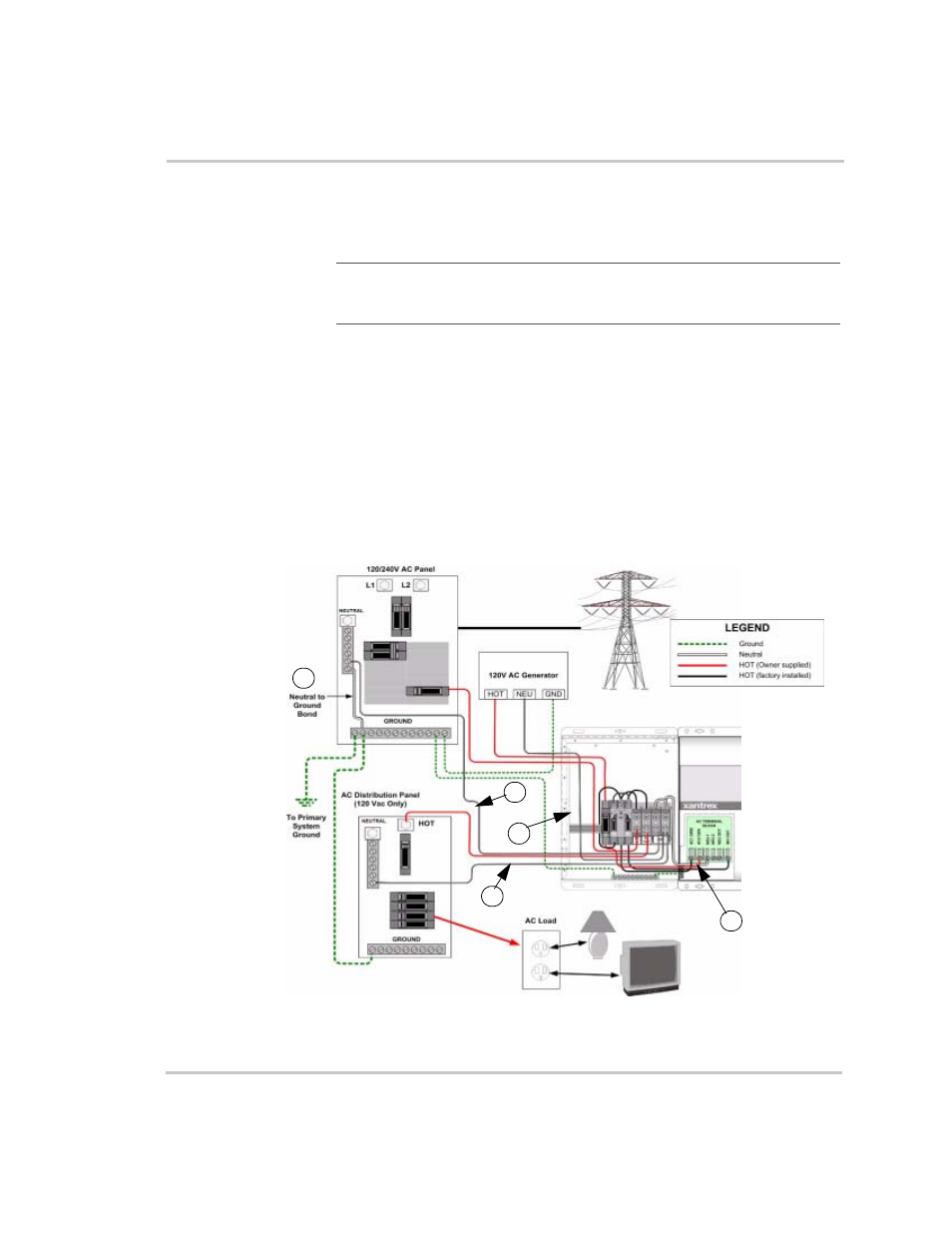

Figure 1-28 Neutral Connections for an On-grid Application with an AC Distribution Panel and
internal Generator Disconnect Breaker in the ACCB
3
1
4
2
5
Main AC Distribution
Panel
SubPanel
