Wiring for Off-Grid Applications Using Additional Circuit Breakers in the ACCB Only

975-0046-01-01

1–27

To make the ground connections:
1. Prepare the primary system ground and, routing it through one of the

knockouts prepared in the

ACCB

, connect it to the ground bar in the

ACCB

. See the Sine Wave Plus Inverter/Charger Owner’s Manual for

information regarding preparing the primary system ground.

2. Connect the factory-installed ground wire (green) in the

ACCB

to the

AC ground bar in the inverter.

3. Prepare the cabling from the generator. Route cable(s) (hot, neutral,

and ground) from the generator into one of the knockouts prepared in
the

ACCB

. Connect the ground wire (green) from the generator to the

ground bar in the

ACCB

4. Route and connect a ground wire from the ground bar in the

ACCB

the outlet that will support the AC load.

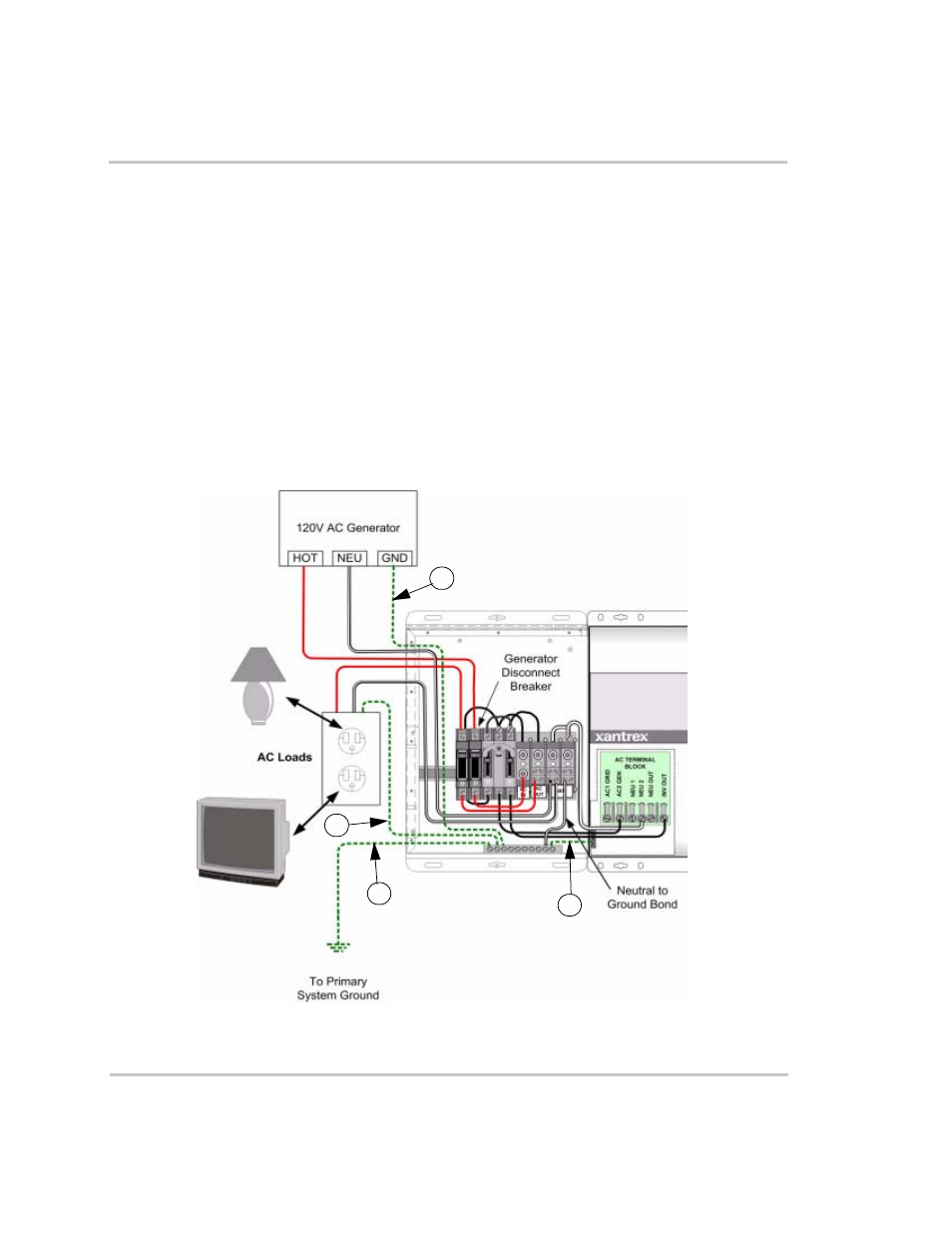

Figure 1-23 Ground Connections for an Off-Grid Application with Additional Circuit Breakers
in the ACCB
