Wiring for Off-Grid Applications using an AC Distribution Panel and an Internal Generator Disconnect

975-0046-01-01

1–23

To make the ground connections:
1. Prepare the primary system ground and connect it to the ground bar in

the main AC distribution panel. See the Sine Wave Plus Inverter/
Charger Owner’s Manual for information regarding preparing the
primary system ground.

2. Route cable(s) (hot, neutral, and ground) from the AC distribution

panel through one of the knockouts prepared in the

ACCB

and

connect the ground wire (green) to the ground bar in the

ACCB

3. Connect the factory-installed ground wire (green) in the

ACCB

to the

AC ground bar in the inverter.

4. Prepare the cabling from the generator. Route cable(s) (hot, neutral,

and ground) from the generator into one of the knockouts prepared in
the

ACCB

. Connect the ground wire (green) from the generator to the

ground bar in the

ACCB

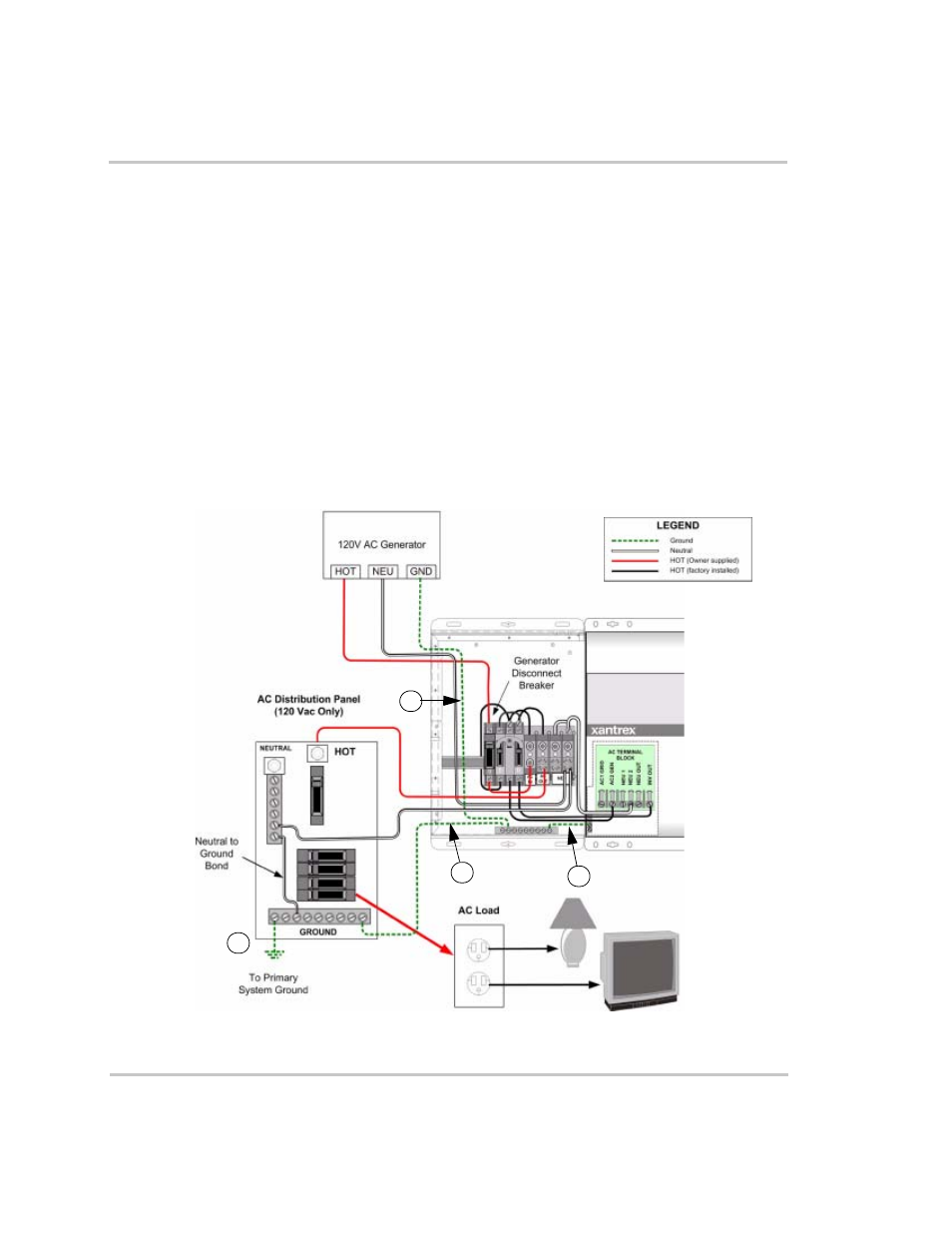

Figure 1-19 Ground Connections for an Off-Grid Application with an AC Distribution Panel and
an Internal Generator Disconnect Breaker
