Wiring for Off-Grid Applications Using an AC Distribution Panel and an External Generator Disconnect
975-0046-01-01 1–21
To make the hot connections:
1. Connect the factory-installed hot (black) wire from the Inverter Input
Breaker in the ACCB to the AC2 GEN terminal in the inverter.
2. Connect the factory-installed hot wire (black) from the Inverter
Output Breaker in the ACCB to the INV OUT terminal in the inverter.
3. Connect a HOT (Black) wire AC OUT in the ACCB to the HOT IN in
the AC Distribution Panel.
4. Connect a hot (black) wire from the generator disconnect to the
AC IN terminal in the ACCB .

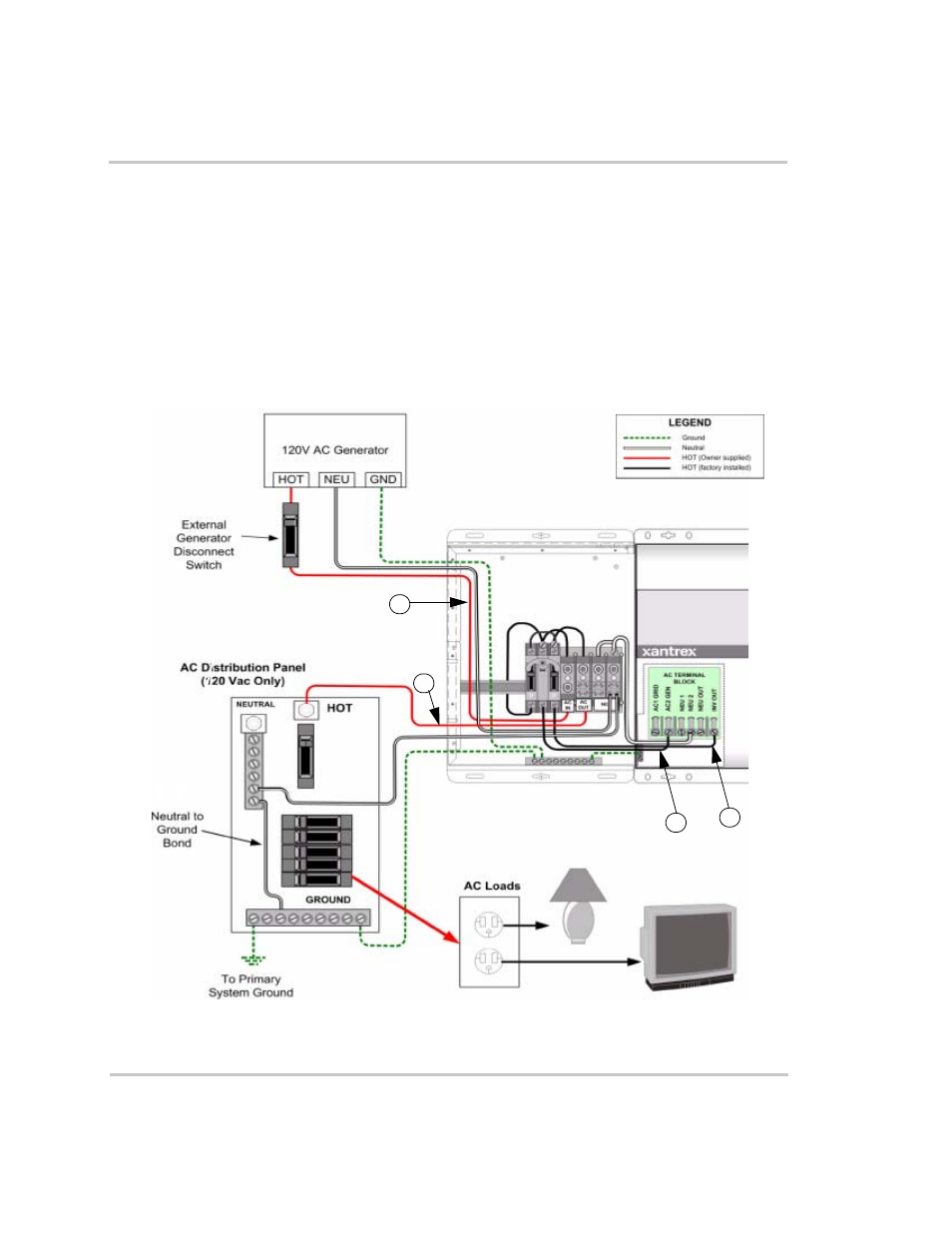

Figure 1-17 Hot Connections for an Off-grid Application with an AC Distribution Panel
and an External Generator Disconnect
4
3
2
1
