Pre-Wiring Preparation
975-0046-01-01 1–17

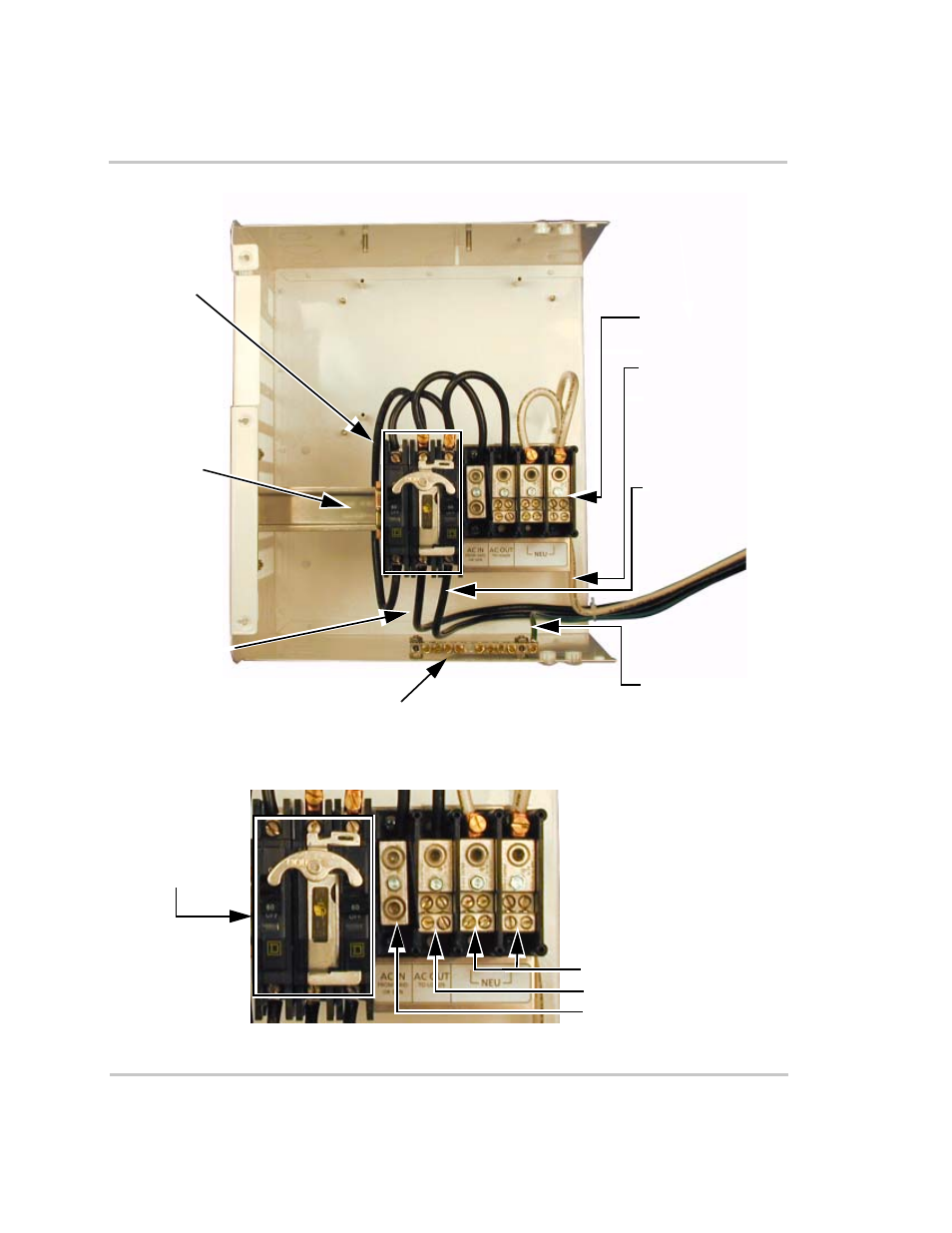

Figure 1-12 ACCB Internal Components and Factory-installed Wiring
Figure 1-13 ACCB AC Terminal Block For Customer-installed Wiring
Ground Bar
DIN Rail
Factory-installed
Ground Wire
Factory-installed
Hot IN Wire
(labeled TO INV -
AC1 GRID OR
AC2 GEN)
Factory-installed
NEUTRAL Wire
(labeled TO INV -
AC1 NEU OR
AC2 NEU)
AC Terminal
Block
Factory-installed Hot
OUT Wire (labeled
TO INV - OUT)
Bypass Switch
Assembly
NEU - Neutral In/Out
AC OUT - TO LOADS
AC IN - FROM GRID OR GEN
Bypass Switch
Assembly
includes: two
60-amp circuit
breakers and a
lockout rocker
