Wiring for Off-Grid Applications Using Additional Circuit Breakers in the ACCB Only

975-0046-01-01

1–29

To make the hot connections:
1. Connect the factory-installed hot (black) wire from the Inverter Input

Breaker in the

ACCB

to the AC2 GEN terminal in the inverter

2. Connect the factory-installed hot wire (black) from the Inverter

Output Breaker in the

ACCB

to the INV OUT terminal in the inverter.

3. Connect another hot (black) wire from the generator disconnect

breaker to the AC IN terminal in the

ACCB

. Connect the other end of

that same hot (black) wire to the bottom of the generator disconnect
breaker.

4. Connect another hot (black) wire from the AC OUT terminal in the

ACCB

to the bottom of the new circuit breaker.

5. Connect the hot (black) wire from the generator to the top of the

generator disconnect breaker.

6. Connect another hot (black) wire from the top of the additional circuit

breaker to the outlet that will support the AC load.

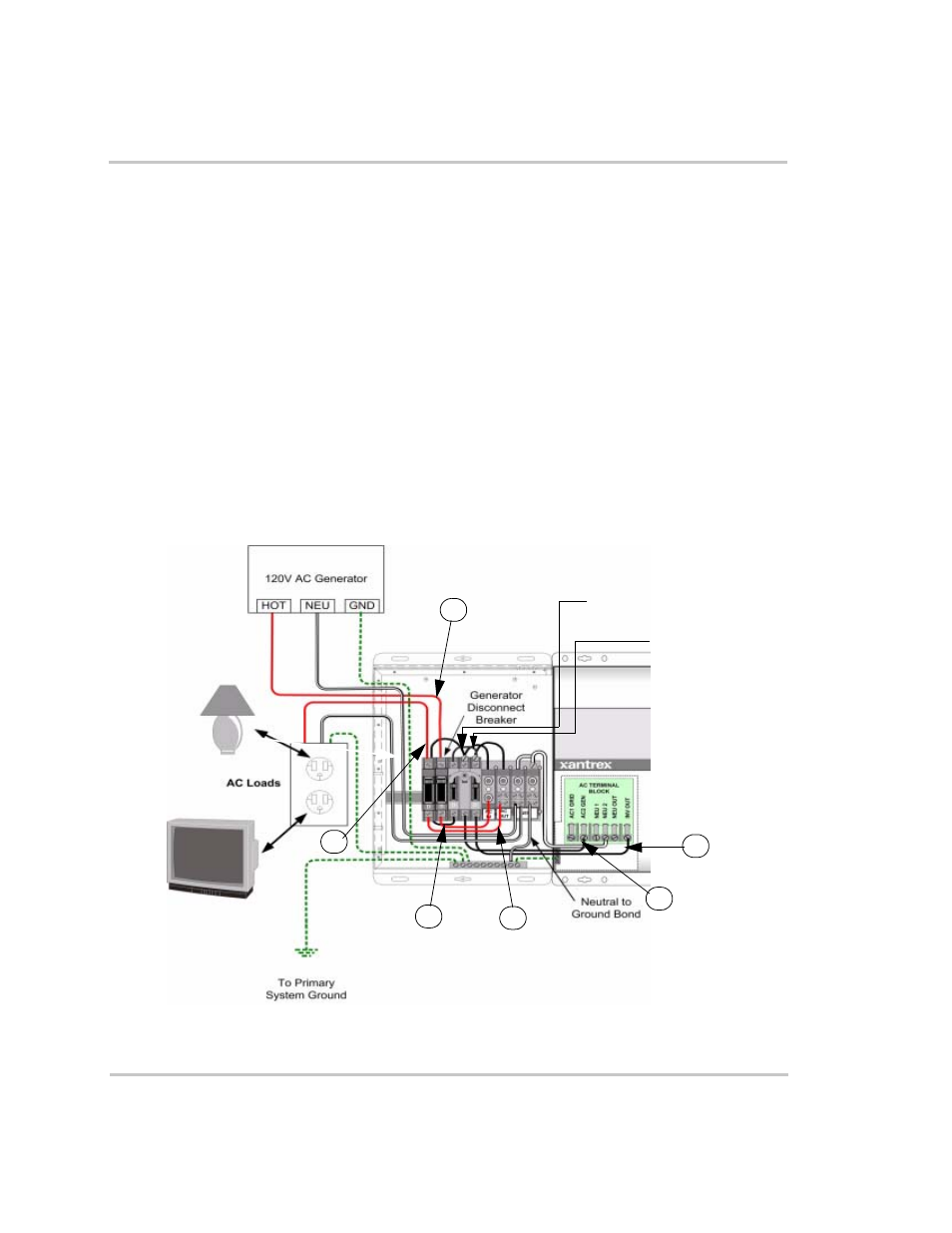

Figure 1-25 Hot Connections for an Off-grid Application with Additional Circuit Breakers
in the ACCB

Inverter Input

Breaker

Inverter Output

Breaker
