Mounting the ACCB to the Inverter
To install the ACCB on the inverter:
1. Mount the inverter into place, either wall-mounted or shelf-mounted,
and secure with appropriate lag bolts. See the Sine Wave Plus
Inverter/Charger Owner’s Manual for specific mounting instructions
for the inverter.
2. Line up the ACCB at the AC end of the inverter, so that the mounting
rails are aligned together and the ACCB base is as close to the
inverter as possible. The gap between the
ACCB and the inverter
should be no more than 1/16 inch.
3. Secure the ACCB in place with six #10 wood screws of an
appropriate length (or lag bolts) in the six mounting and keyhole slots
on the mounting rails of the ACCB.
4. Leave the top cover off the ACCB to proceed with wire connections.
Important: Ensure that the factory installed cables in the ACCB are not
pinched, crushed, removed, or damaged during the installation to the
inverter.

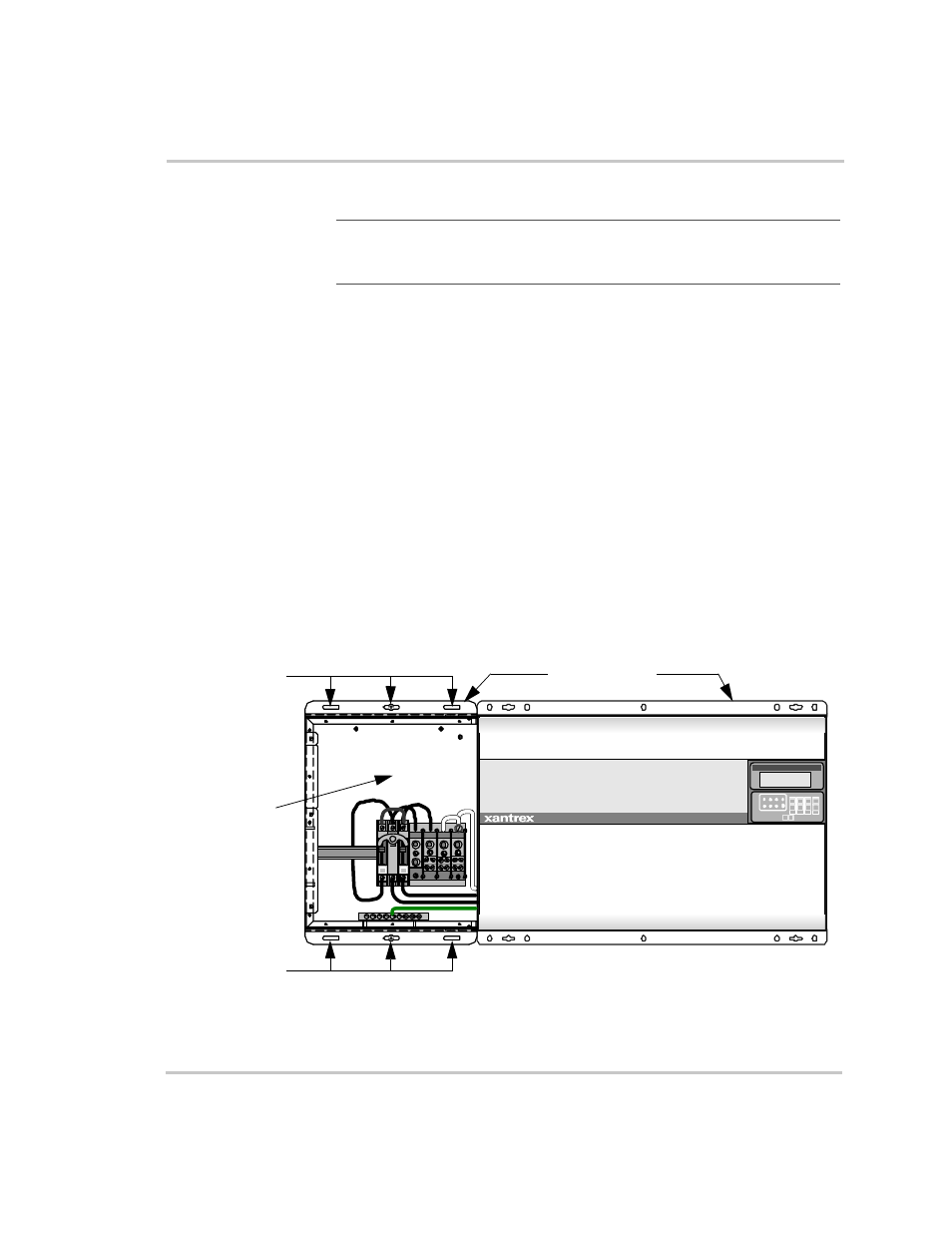

Figure 1-10 Installing the ACCB on the Sine Wave Plus Inverter Charger
Set Inverter
OFF SRCH ON CHG
Sine Wave Plus Inverter / Charger
D D
ACCB Base
with top cover
removed
Mounting holes
and keyhole
slots for ACCB Mounting Rails
Mounting holes
and keyhole
slots for ACCB
Sine Wave Plus Inverter/Charger
