Installation

1–36

975-0046-01-01

To make the neutral connections:
1. Ensure there is only one neutral-to-ground bond in the system. In this

case, it would be in the main AC distribution panel.

2. Connect the neutral (white) wire from the neutral bar in the main AC

distribution panel to one of the neutral terminals in the

ACCB

3. Connect the factory-installed neutral wire (white) in the

ACCB

to the

NEU1 terminal in the inverter.

4. Connect the neutral (white) wire from the generator and connect it to

one of the neutral terminals in the

ACCB

5. Route and connect a neutral (white) wire from one of the neutral

terminals in the

ACCB

to the outlet that will be supporting the

AC load.

Important:

Ensure there is only one neutral-to-ground bond in the entire

system. See the Sine Wave Plus Inverter/Charger Owner’s Manual for additional
information regarding the neutral-to-ground bond requirements.

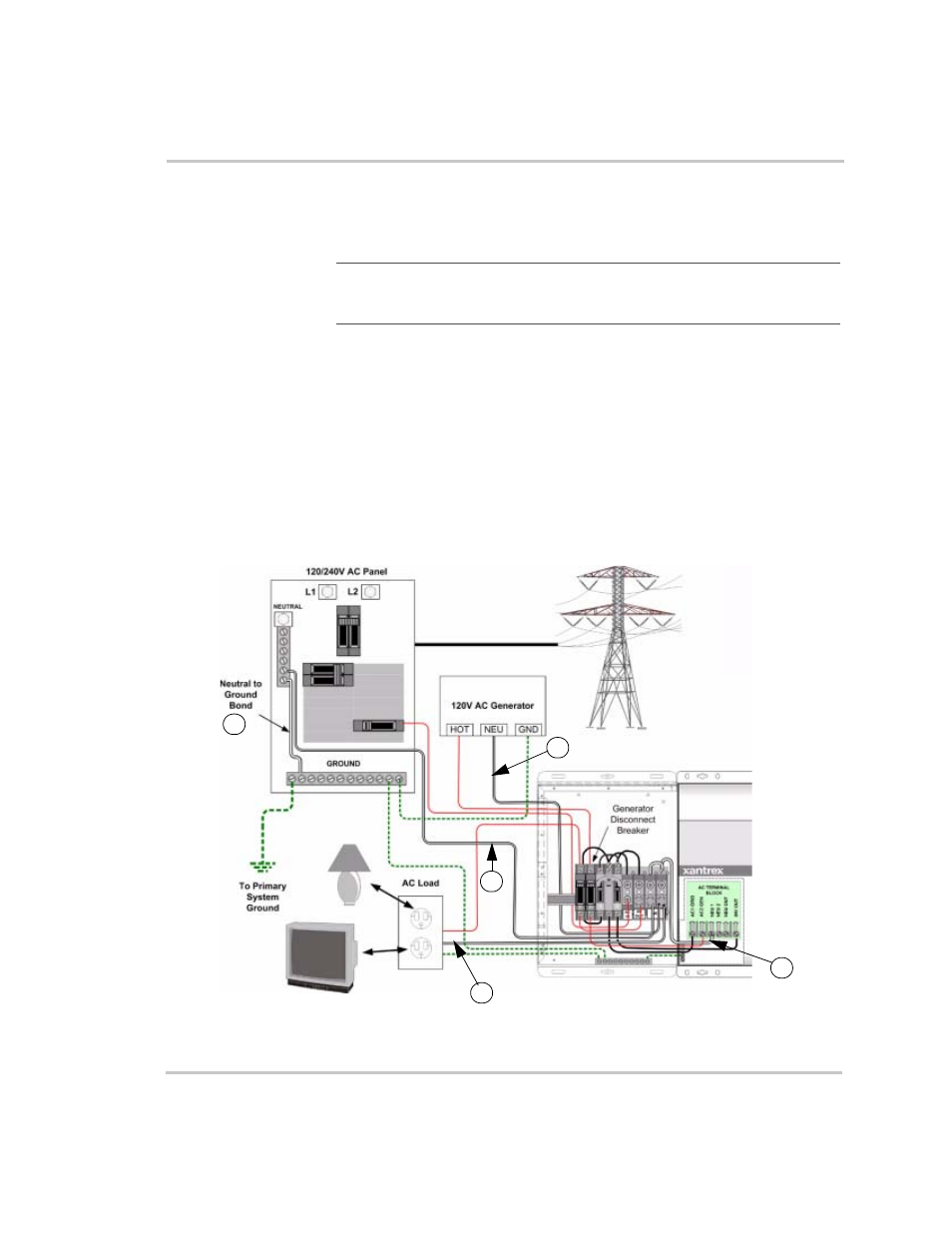

Figure 1-32 Neutral Connections for an On-Grid Application Using Additional Circuit Breakers
in the ACCB Only
