Wiring for On-Grid Applications Using Additional Circuit Breakers in the ACCB Only

975-0046-01-01

1–37

To make the hot connections:
1. Connect the factory-installed hot (black) wire from the Inverter Input

Breaker in the

ACCB

to the AC1 GRID terminal in the inverter

2. Connect the factory-installed hot wire (black) from the Inverter

Output Breaker in the

ACCB

to the INV OUT terminal in the inverter.

3. Connect the hot (black) wire from the main AC distribution panel to

the AC IN terminal in the

ACCB

4. Connect the hot (black) wire from the generator to the top of the

generator disconnect breaker in the

ACCB

5. Connect another hot (black) wire from the bottom of that same

generator disconnect breaker in the

ACCB

to the AC2 GEN terminal.

6. Connect a hot (black) wire from the AC OUT terminal in the

ACCB

to the bottom of the additional circuit breaker installed in the

ACCB

7. Connect another hot (black) wire from the top of that same additional

circuit breaker in the

ACCB

and route to the outlet that will be

supporting the AC load.

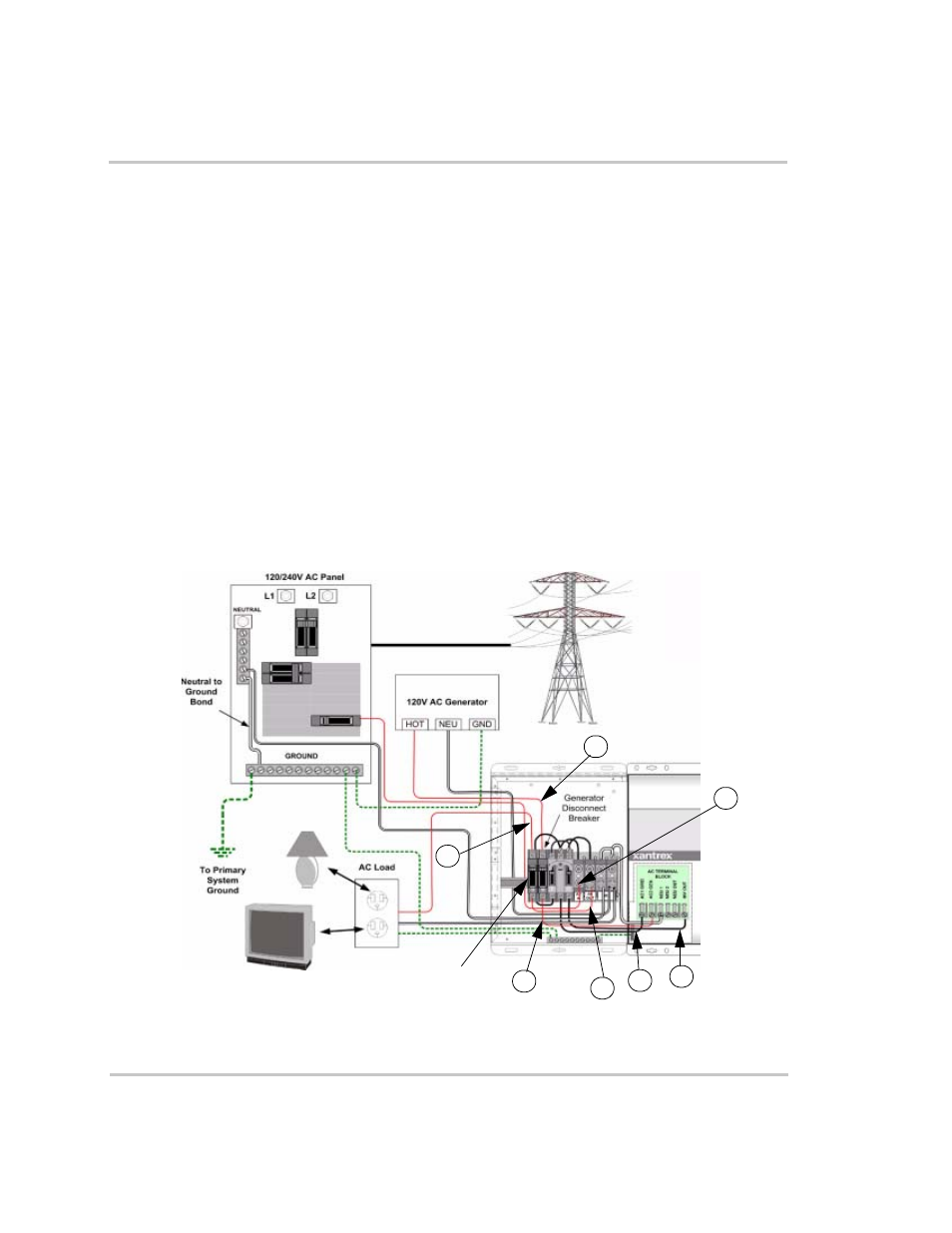

Figure 1-33 Hot Connections for an On-Grid Application Using Additional Circuit Breakers in
the ACCB Only

Additional AC Load

Circuit Breaker
