6.5 Wall-mounting Instructions
Complete the following steps to hang your WPA-1000 on a wall.
"
See Table 14 on page 59 for the size of screws to use and how far apart to place
them.
1 Select a position free of obstructions on a sturdy wall.
2 Drill two holes for the screws.
1
Be careful to avoid damaging pipes or cables located inside the wall when
drilling holes for the screws.
3 Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm
between the heads of the screws and the wall.
4 Make sure the screws are snugly fastened to the wall. They need to hold the weight of
the WPA-1000 with the connection cables.
5 Align the holes on the back of the WPA-1000 with the screws on the wall. Hang the
WPA-1000 on the screws.

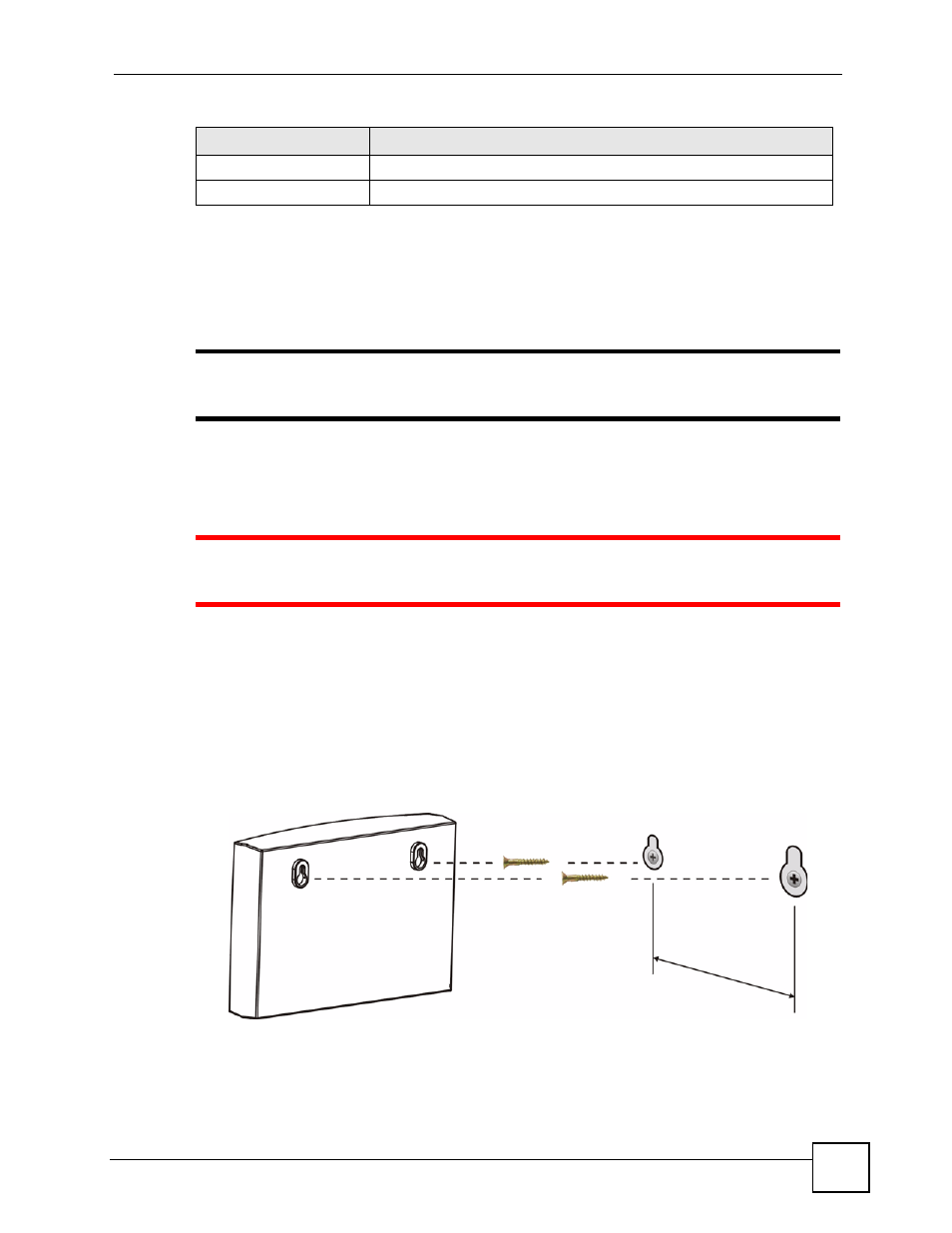

Figure 33 Wall-mounting Example
The following are dimensions of an M4 tap screw and masonry plug used for wall mounting.
All measurements are in millimeters (mm).
IEEE 802.11b Uses the 2.4 gigahertz (GHz) band
IEEE 802.11g Uses the 2.4 gigahertz (GHz) band
Table 17 Standards Supported (continued)
STANDARD DESCRIPTION
