Chapter 2 WPA-1000 Hardware
WPA-1000 User’s Guide
26
The following table describes the rear panel labels.
2.2 Front Panel LEDs

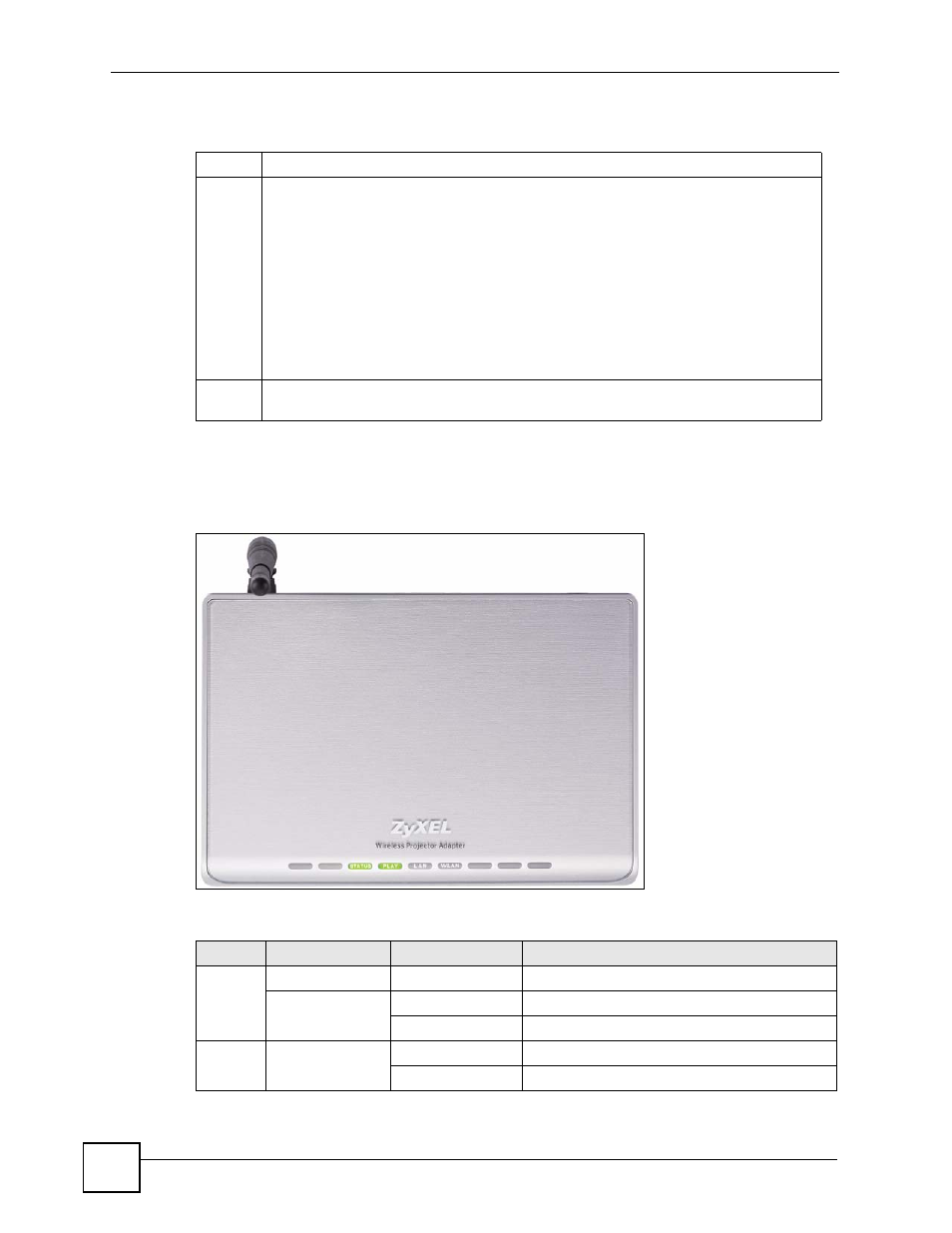

Figure 5 Front Panel LEDs
The table below describes the labels in the screen.
Table 1 Rear Panel Connections
VGA Use the gray VGA cable from the package to connect your WPA-1000 to a projector.
RESET To reset the WPA-1000 to its default settings, use a pointed device such as a pen to
press the RESET button in for more than 30 seconds. While pressing RESET, turn your
device off and then on again.
Default settings include:
•
Password of conference control host and administrator: 1234
• SSID: ZyXEL
• Server IP: 192.168.1.10
• WEP: disabled
• Gatekeeper: All Block
• Resolution: 1024 by 768
• Color depth: 32bit
• Refresh rate: 60Hz
LAN Connect your computer to the LAN port using the red LAN cable that came with the
package.
Table 2 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
STATUS Green On The WPA-1000 is ready to project.
Orange On The device is starting.
Off The device is not starting.
PLAY
(N/A) Green Blinking The device is projecting.
Off The device is not projecting.
