Chapter 4 The Web Configurator Screens
WPA-1000 User’s Guide
41
The following table shows you the number of pixels that are displayed in each resolution.
The total number of pixels a projector can project depends on its resolution. For example, an
SVGA projector can display 480,000 pixels at a time.
Resolution affects how sharp your image is and the compatibility of your projector with your
WPA-1000. If the WPA-1000 is sending a signal to the projector that is XGA, and your
projector has SVGA resolution, there may be display or hardware problems, so it’s best to
select the resolution on the WPA-1000 that your projector supports.

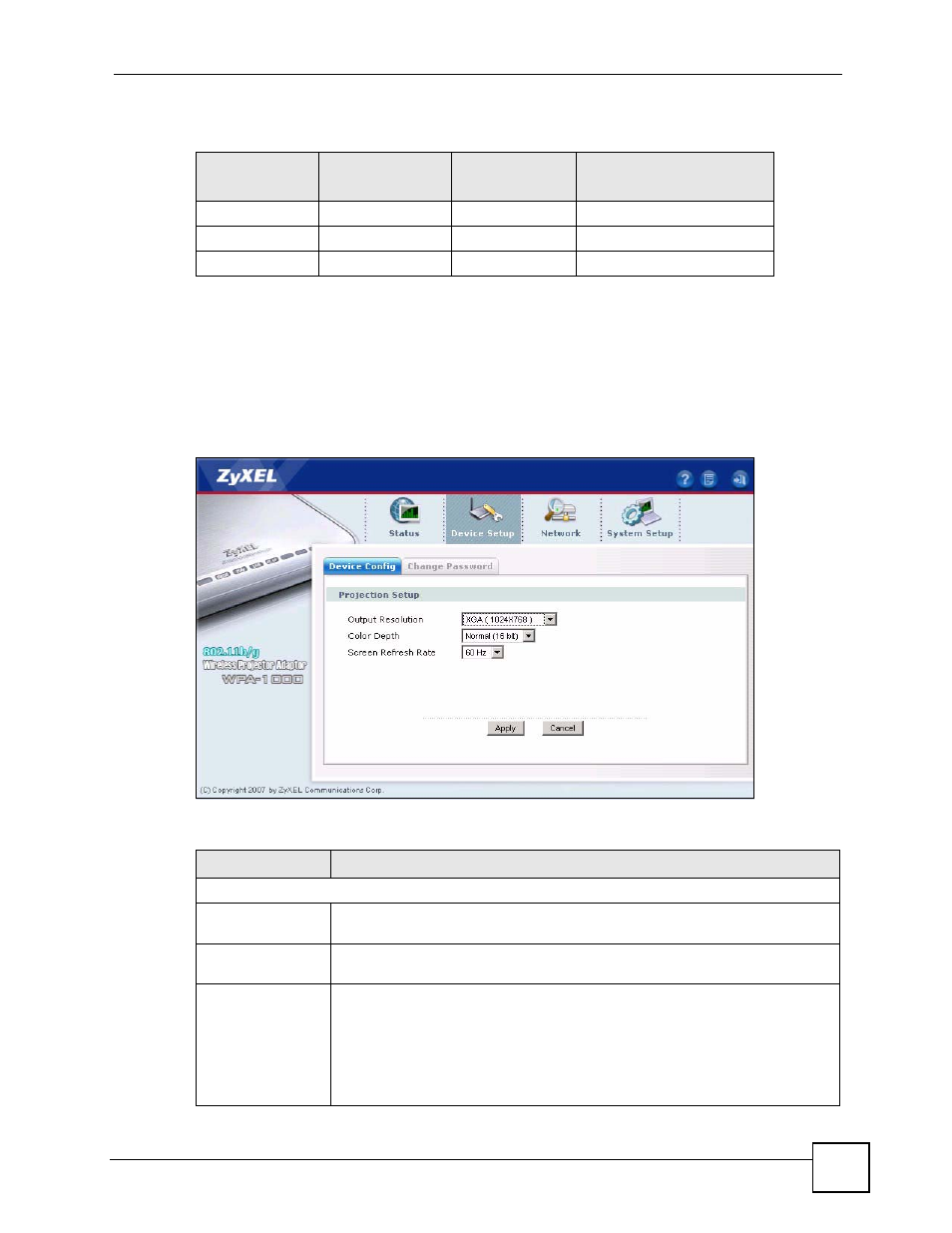

Figure 22 Device Setup > Device Config
The table below describes the labels on the screen.
Table 9 Resolutions
RESOLUTION
PIXELS
HORIZONTALLY
PIXELS
VERTICALLY
APPROX. TOTAL PIXELS
(THOUSANDS)
SVGA 800 600 480
XGA 1024 768 786
WXGA 1280 720 922
Table 10 Device Setup > Device Config
LABEL DESCRIPTION
Projection Setup
Output Resolution Resolution is the number of pixels that the projector is capable of displaying.
Select the resolution that your projector supports and displays best.
Color Depth Color depth is the number of bits used for each pixel on a screen. Select the
color depth that your projector supports.
Screen Refresh
Rate
The refresh rate is the number of times that the image on the screen is drawn
each second. If your projector has a refresh rate of 72 Hertz (Hz), then it cycles
through all the pixels from top to bottom 72 times a second.
A higher refresh rate reduces screen flicker and reduces eye strain. However, if
you specify a refresh rate that is too high for your projector, you may damage it.
Also, there is a trade-off between refresh rate and resolution. Select the refresh
rate that your projector supports.
