VLAN configuration—Port-based VLAN
Packets can go among only members of the same VLAN group. Note all unselected
ports are treated as belonging to another single VLAN. If port-based VLAN is enabled,
the VLAN-tagging is ignored.
In order for an end station to send packets to different VLAN groups, it itself has to be
either capable of tagging packets it sends with VLAN tags, or it must be attached to a
VLAN-aware bridge that is capable of classifying and tagging the packet with a different
VLAN ID based on not only default PVID but also other information about the packet,
such as the protocol.

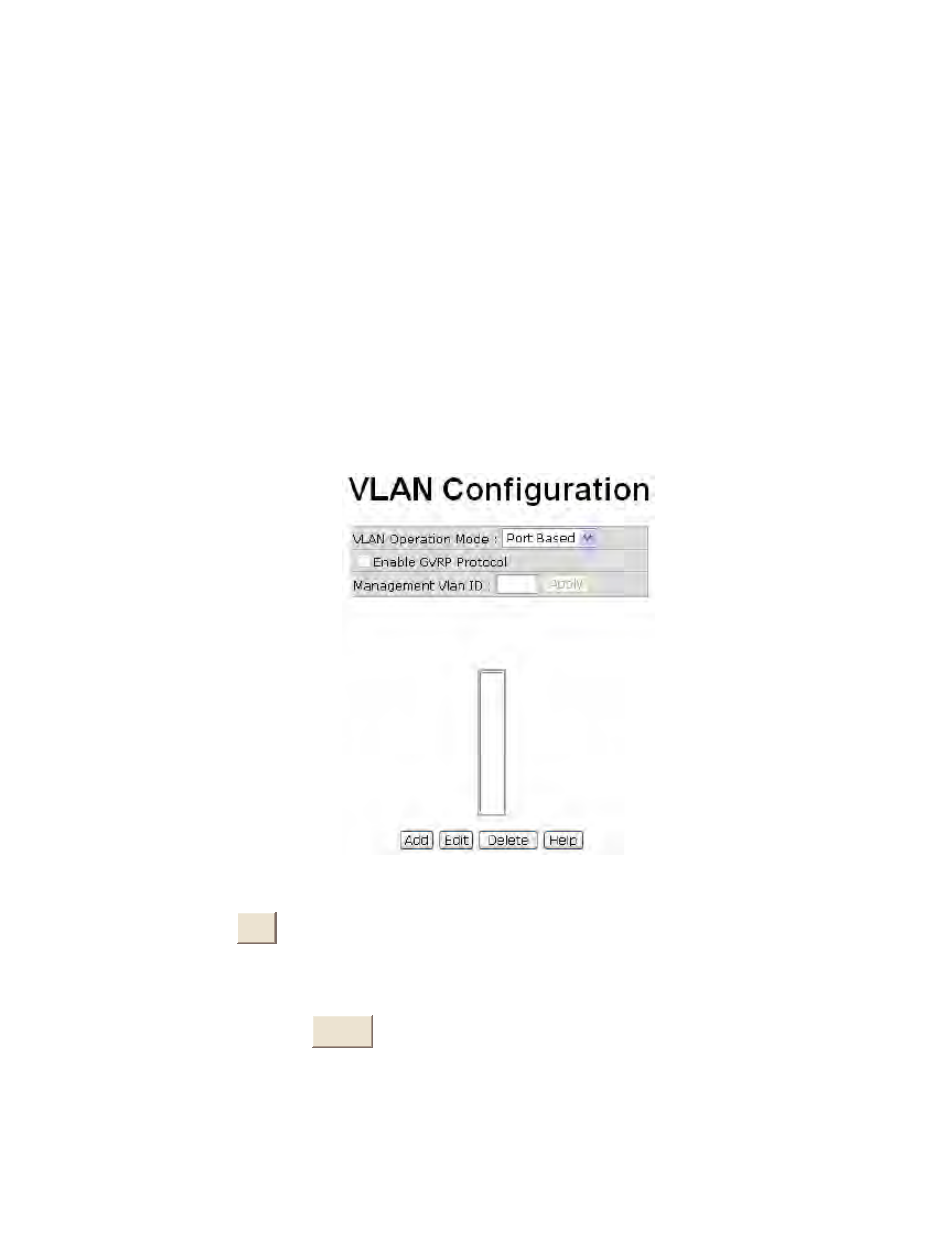

VLAN – Port Based interface
Click Add to add a new VLAN group(The maximum VLAN group is up to 256
VLAN groups)
Entering the VLAN name, group ID and grouping the members of VLAN group
And then, click Apply
