Transition Networks SISGM1040-162D-LR
Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
76
VLAN configuration
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain.
This enables isolation of network traffic, so only the members of the VLAN will receive
traffic from the same VLAN members. Basically, creating a VLAN from a switch is
logically equivalent to reconnecting a group of network devices to another Layer 2 switch.
However, all the network devices are still plugged into the same switch physically.
The industrial switch supports port-based and 802.1Q (tagged-based) VLAN. The default
configuration of VLAN operation mode is “Disable”.

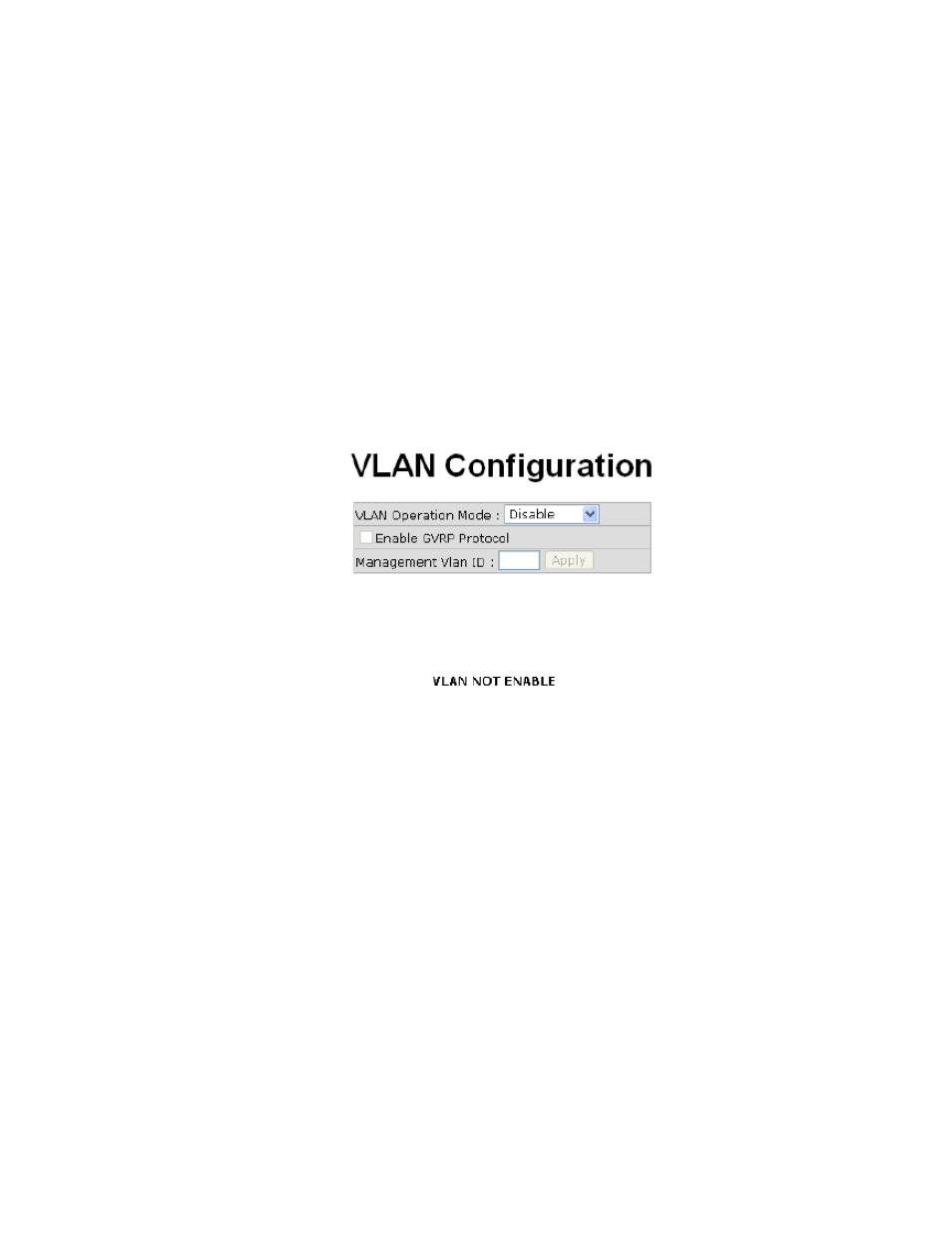

VLAN Configuration interface
