Hardware Description
This section describes the Industrial switch’s hardware spec, port, cabling information,
and wiring installation.
Physical Dimension
6 10/100/1000T + 2 10/100/1000T/ 100/1000 SFP Combo w/ X-Ring Managed Switch
dimension (W x D x H) is 72mm x 105mm x 152mm
Front Panel
Shown below is the front panel of the 6 10/100/1000T + 2 10/100/1000T/ 100/1000 SFP
Combo w/ X-Ring Managed Switch.

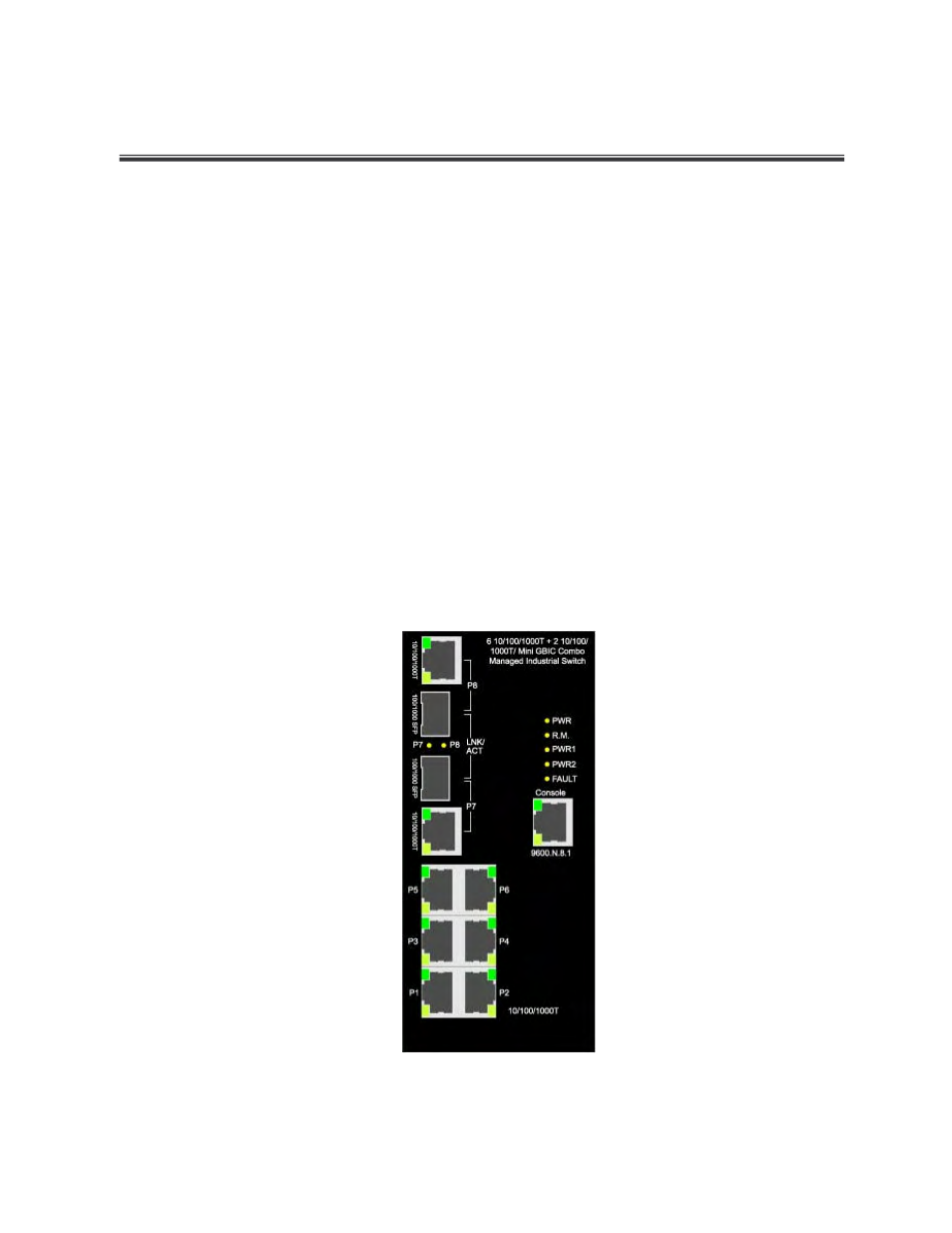

Front Panel of the industrial switch
