102
802.1x Port Configuration
You can configure 802.1x authentication state for each port. The State provides Disable,
Accept, Reject and Authorize.
Reject: The specified port is required to be held in the unauthorized state.
Accept: The specified port is required to be held in the Authorized state.
Authorized: The specified port is set to the Authorized or Unauthorized state in
accordance with the outcome of an authentication exchange between the
Supplicant and the authentication server.
Disable: When disabled, the specified port works without complying with 802.1x
protocol.
Click Apply .

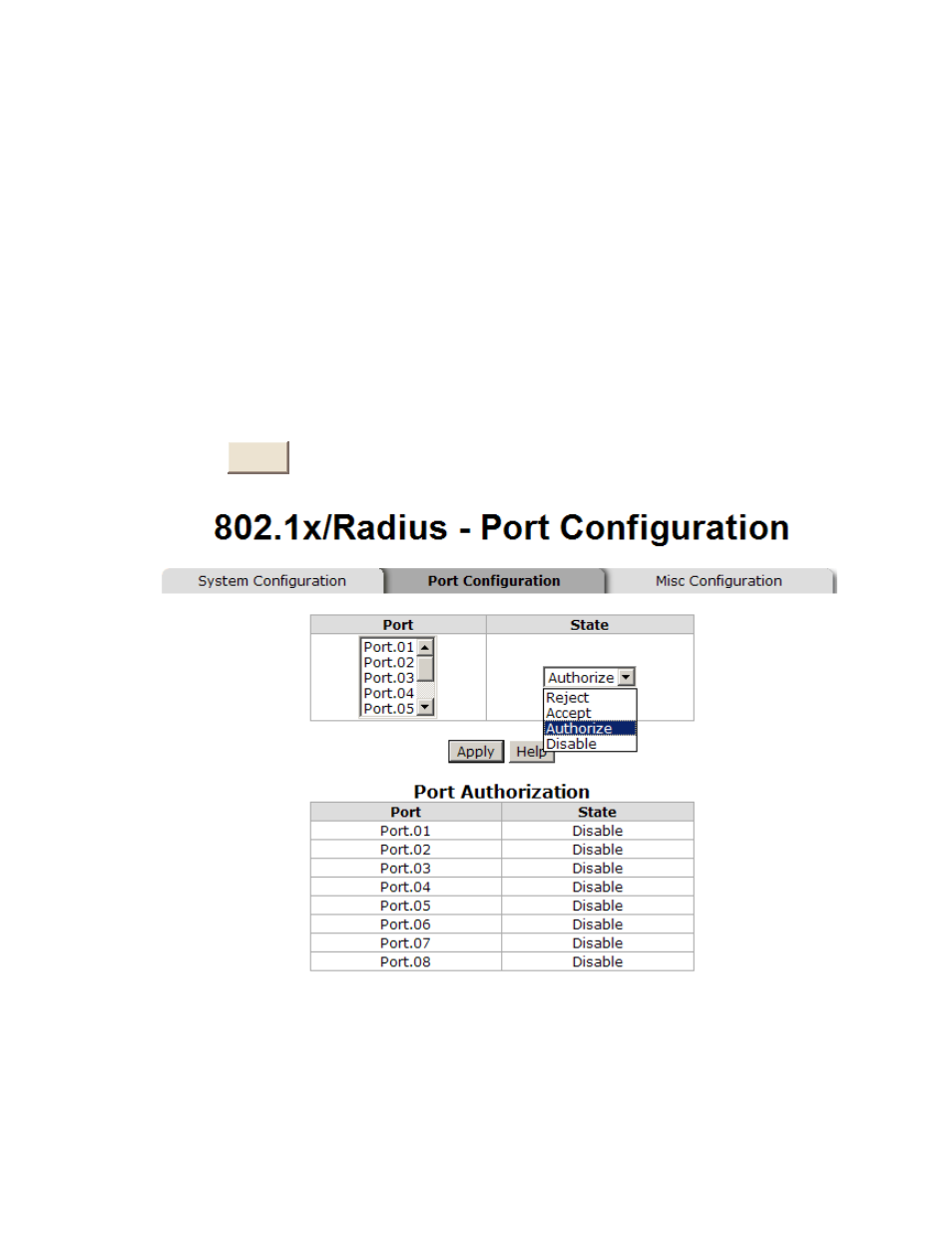

802.1x Per Port Setting interface
