Transition Networks SISGM1040-162D - Manual (Page 24)

Transition Networks SISGM1040-162D-LR
Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
17
Console Management

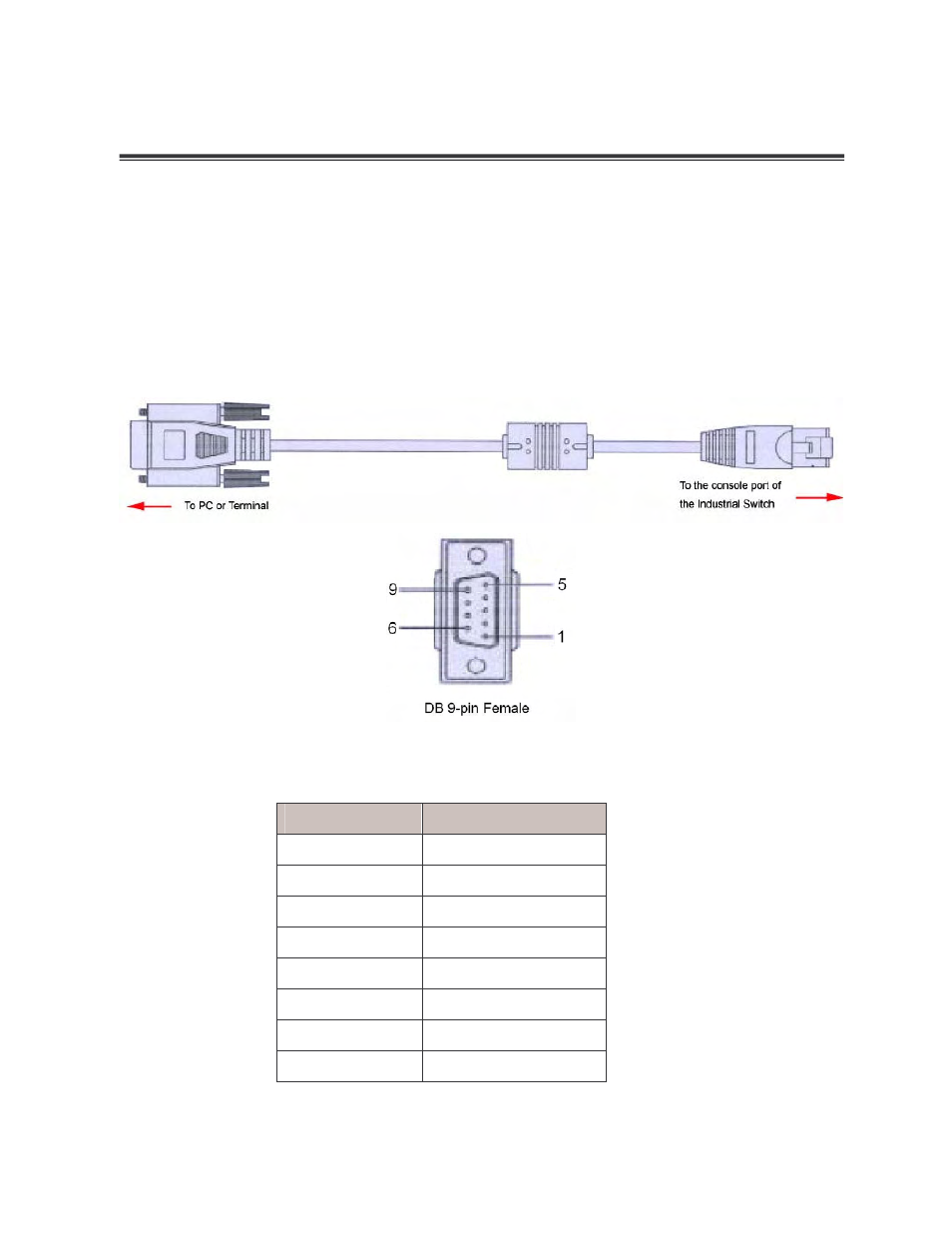

Connecting to the Console Port
The supplied cable has an RS-232 connector on one end and an RJ-45 connector on
the other. Attach the end with the RS-232 connector to a PC or terminal and the other
end with the RJ-45 connector to the console port of the switch. The connected terminal
or PC must support the terminal emulation program.
Pin Assignment
DB9 Connector RJ-45 Connector
NC 1 Orange/White
2 2 Orange
3 3 Green/White
NC 4 Blue
5 5 Blue/White
NC 6 Green
NC 7 Brown/White
NC 8 Brown
