Getting Ready to Play
Quick Start
5

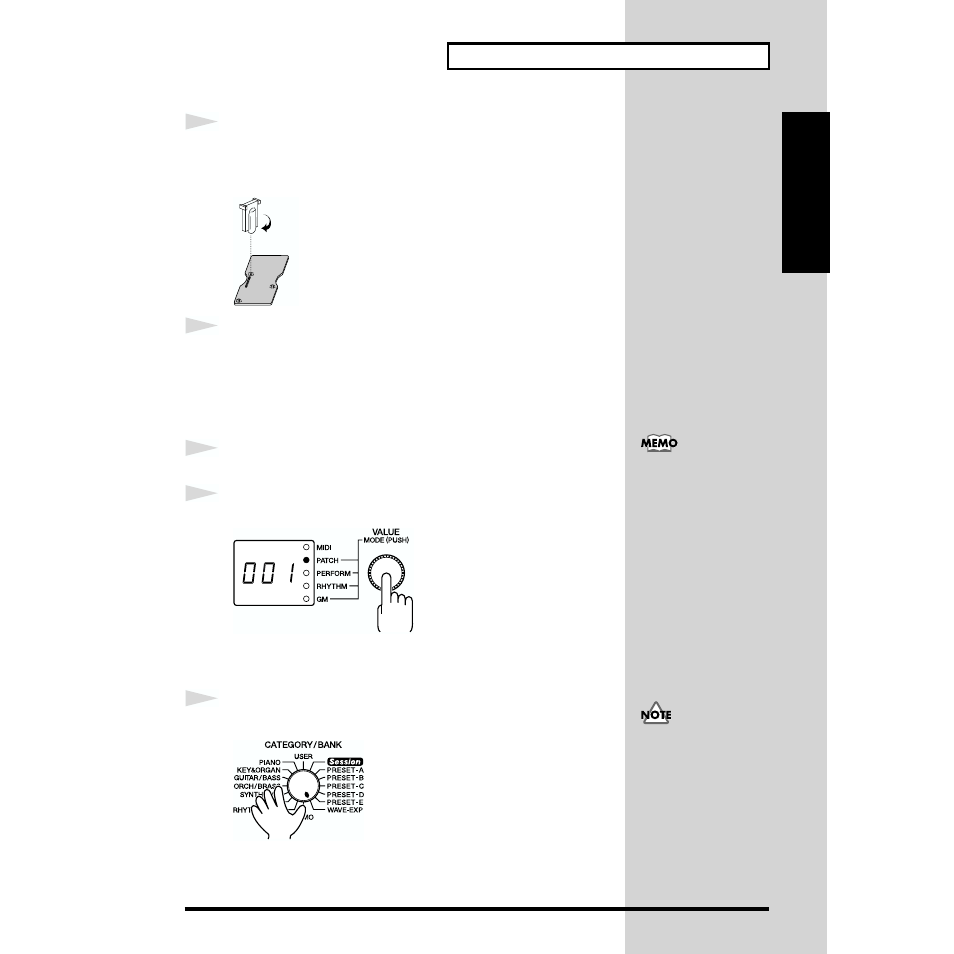

Use the tool supplied with the Wave Expansion Board to
rotate the board holders to LOCK, securing the Wave
Expansion Board in place.
fig.1-03d.e
6
Use the (specified) screws you removed in step 2 to reattach
the cover.
This completes the installation of the Wave Expansion Board. Next, make
sure the board is installed correctly.
1
Switch on the power to the JV-1010 (p. 20).
2
Press the VALUE knob to choose the Patch mode (
PATCH
).
fig.1-04
Pressing the VALUE knob makes the mode change sequentially. Press the
knob several times, until the PATCH indicator lights up.
3
Turn the CATEGORY/BANK knob to choose
WAVE-EXP
.
fig.1-05
If
001
appears in the display, the Wave Expansion Board has been installed
correctly.
LOCK
When a Wave Expansion
Board is installed, then
when you switch on the
power first
roland Jv-1010
is displayed, and after that
the final two digits of the
model number for the
installed Wave Expansion
Board flash twice on the
display.
For example, when the SR-
JV80-02 “Orchestral” Wave
Expansion Board is
installed,
02
flashes twice
on the display.
If the display shows
- - -
,
it’s likely that the Wave
Expansion Board is not
being recognized correctly.
Follow the steps in
the power, then reinstall
the Wave Expansion Board,
making sure you do it
correctly.
