Getting Ready to Play
Follow the steps below to install the Wave Expansion Board.
1
Before installing the Wave Expansion Board, switch off the
power to the JV-1010 and any connected equipment.
2
Detach the cover on the upper portion of the JV-1010. Loosen
the four screws on the upper portion of the cover.

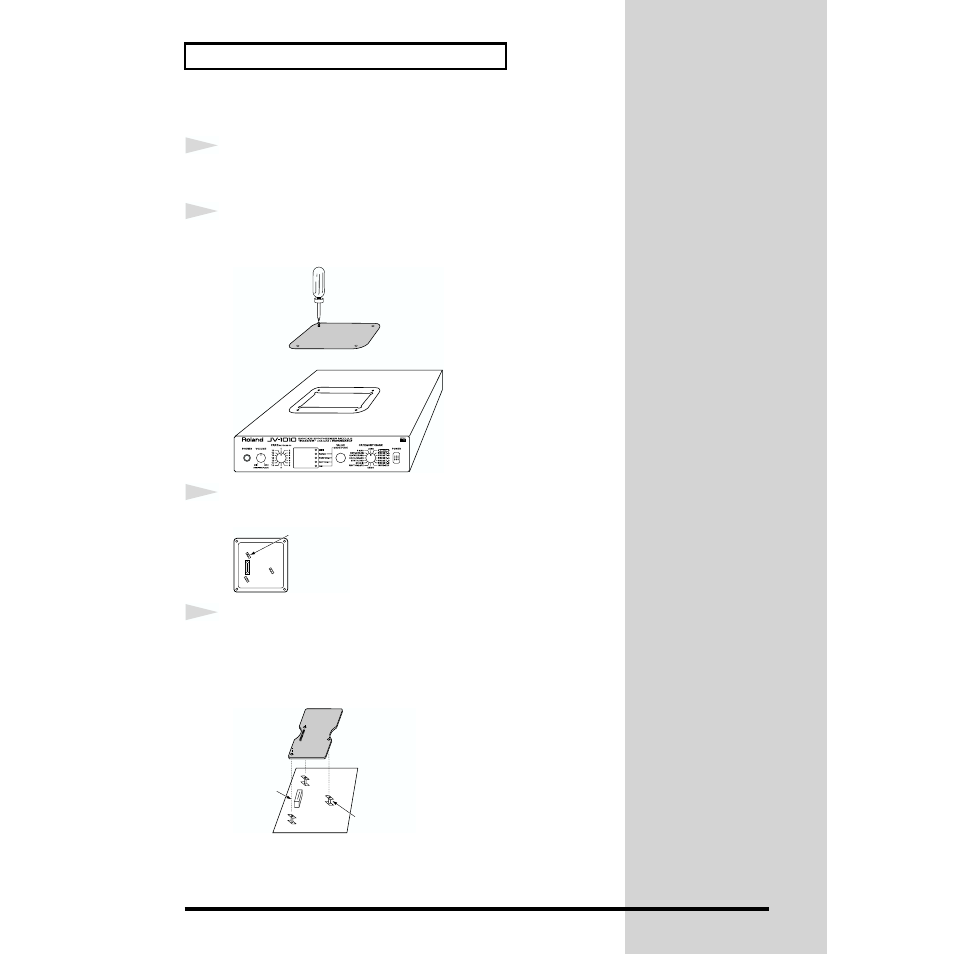

fig.1-03a.e
3
Position the board holders so they are oriented.
fig.1-03b.e
4
Insert the connector for the Wave Expansion Board into the
connector on the unit, and at the same time, fit the board
holders into the holes. When you do this, the heads of the three
board holders should protrude from the Expansion Board.
fig.1-03c.e
Screwdriver
Board holder
Board holder
Connector
EXP-B
