CHAPTER 23 EXTERNAL DEVICE EXPANSION FUNCTION

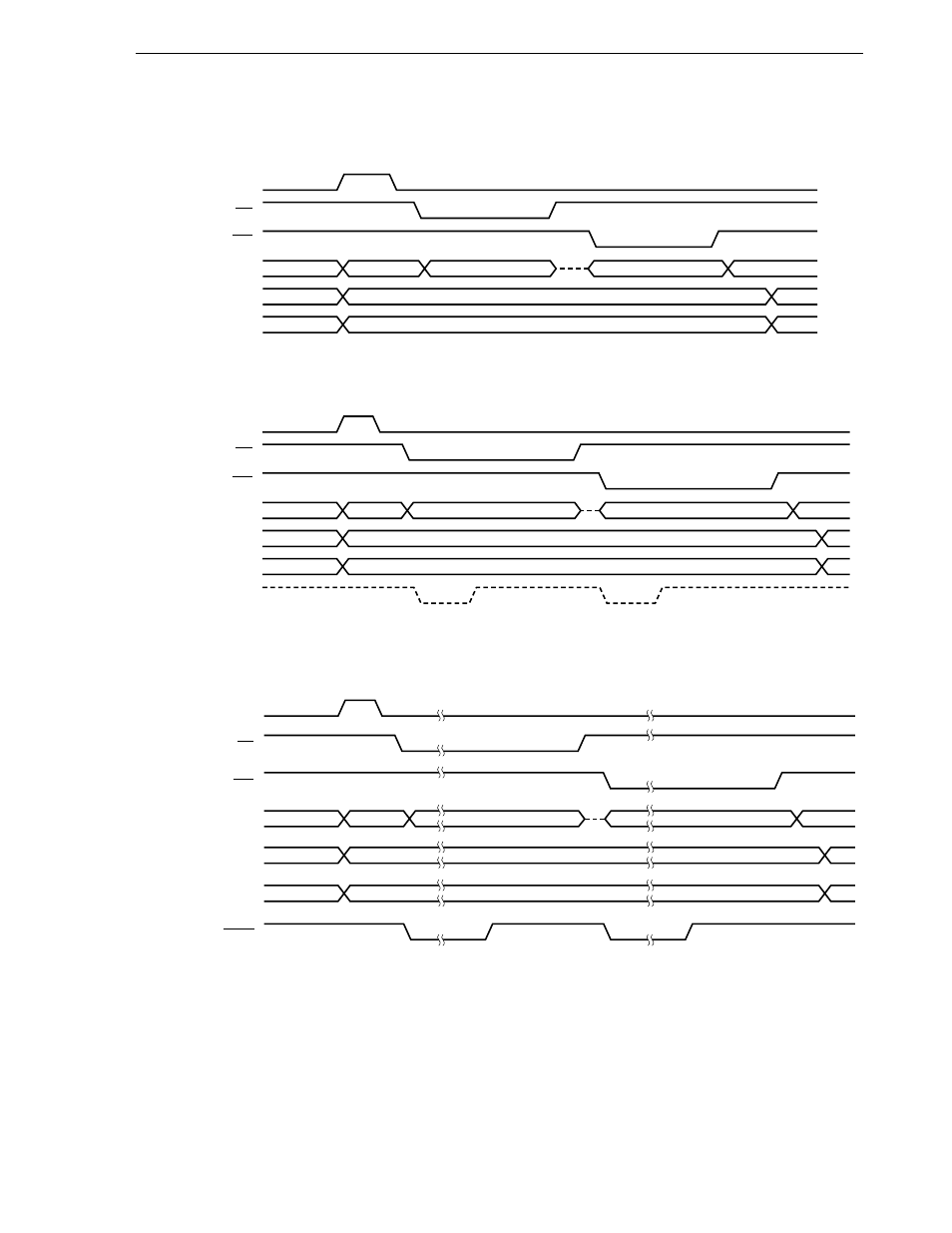

Figure 23-12. External Memory Read Modify Write Timing in Separate Bus Mode
(a) No wait (PW1, PW0 = 0, 0) setting
(b) Wait (PW1, PW0 = 0, 1) setting
(c) External wait (PW1, PW0 = 1, 1) setting
Note
In the separate bus mode, use of the address strobe signal is not required though it is output from
the ASTB/P67 pin.
ASTB
Note
RD
WR
AD0 to AD7
A0 to A7
A8 to A15
Lower Address
Write Data
Higher Address
Lower Address
Hi-Z
Read Data
Lower Address
Higher Address
Lower Address
Internal Wait Signal
(1-clock wait)
Hi-Z
ASTB
Note
RD
WR
AD0 to AD7
A0 to A7
A8 to A15
Write Data
Read Data
ASTB
Note
RD
WR
Higher Address
Lower Address
AD0 to AD7
A0 to A7
A8 to A15
WAIT
Hi-Z
Lower Address
Write Data
Read Data
