CHAPTER 8 16-BIT TIMER/EVENT COUNTER

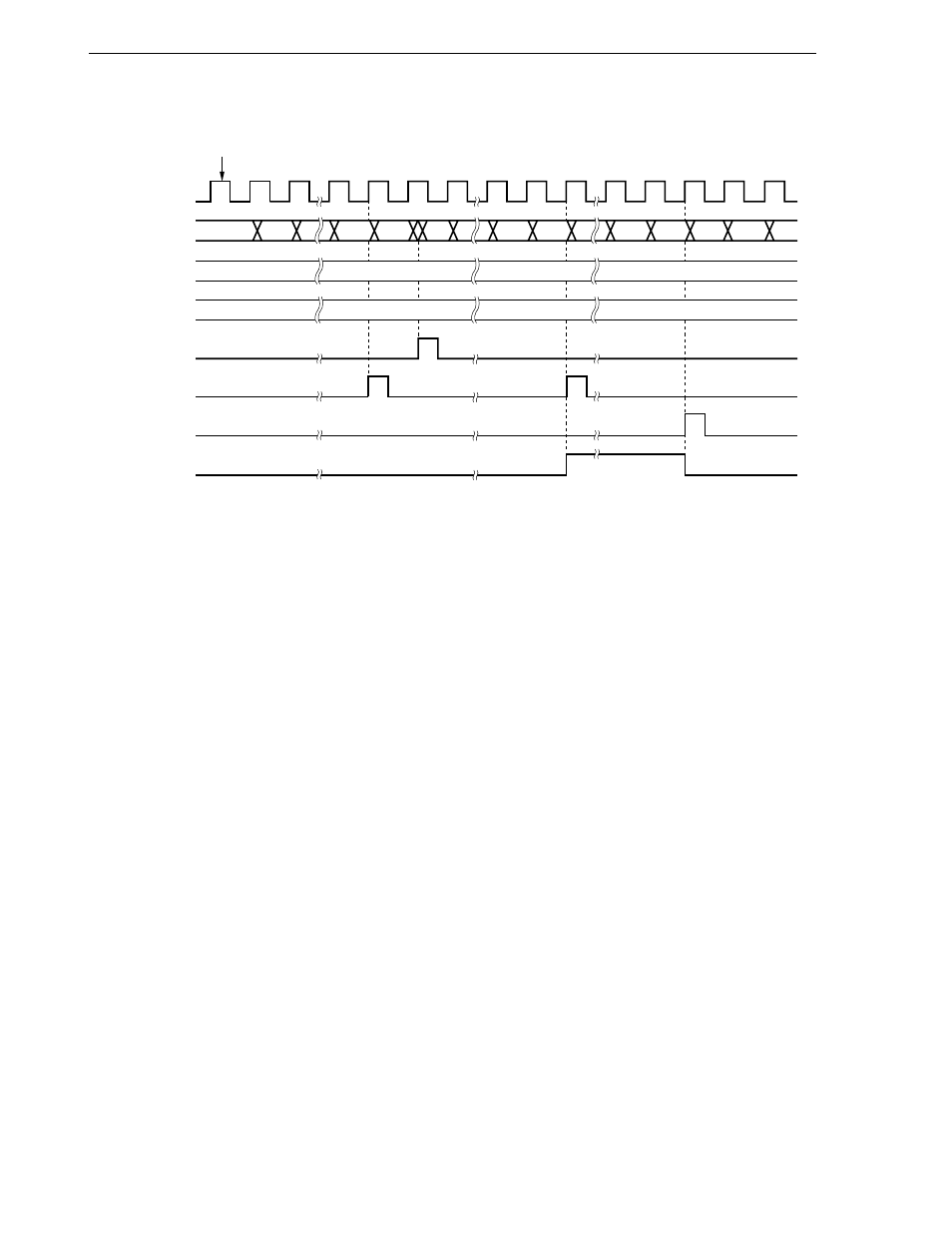

Figure 8-32. Timing of One-Shot Pulse Output Operation Using Software Trigger
Caution The 16-bit timer register starts operation at the moment a value other than 0, 0, 0 (operation
stop mode) is set to TMC01 to TMC03, respectively.
Count Clock
TM0 Count Value
CR01 Set Value
CR00 Set Value
INTTM01
OSPT
INTTM00
TO0 Pin Output
0000
0001
N
N + 1
0000
N – 1
N
M – 1
M
0000
0001
0002
N
M
N
M
N
M
N
M
Set 0CH to TMC0
(TM0 count start)
