NEC uPD78P078 User Manual
Page 112

112
CHAPTER 5 CPU ARCHITECTURE
SP
15
0
SP15 SP14 SP13 SP12 SP11 SP10
SP9
SP8
SP7
SP6
SP5
SP4
SP3
SP2
SP1
SP0
(3) Stack pointer (SP)
This is a 16-bit register to hold the start address of the memory stack area. Only the internal high-speed RAM
area can be set as the stack area.

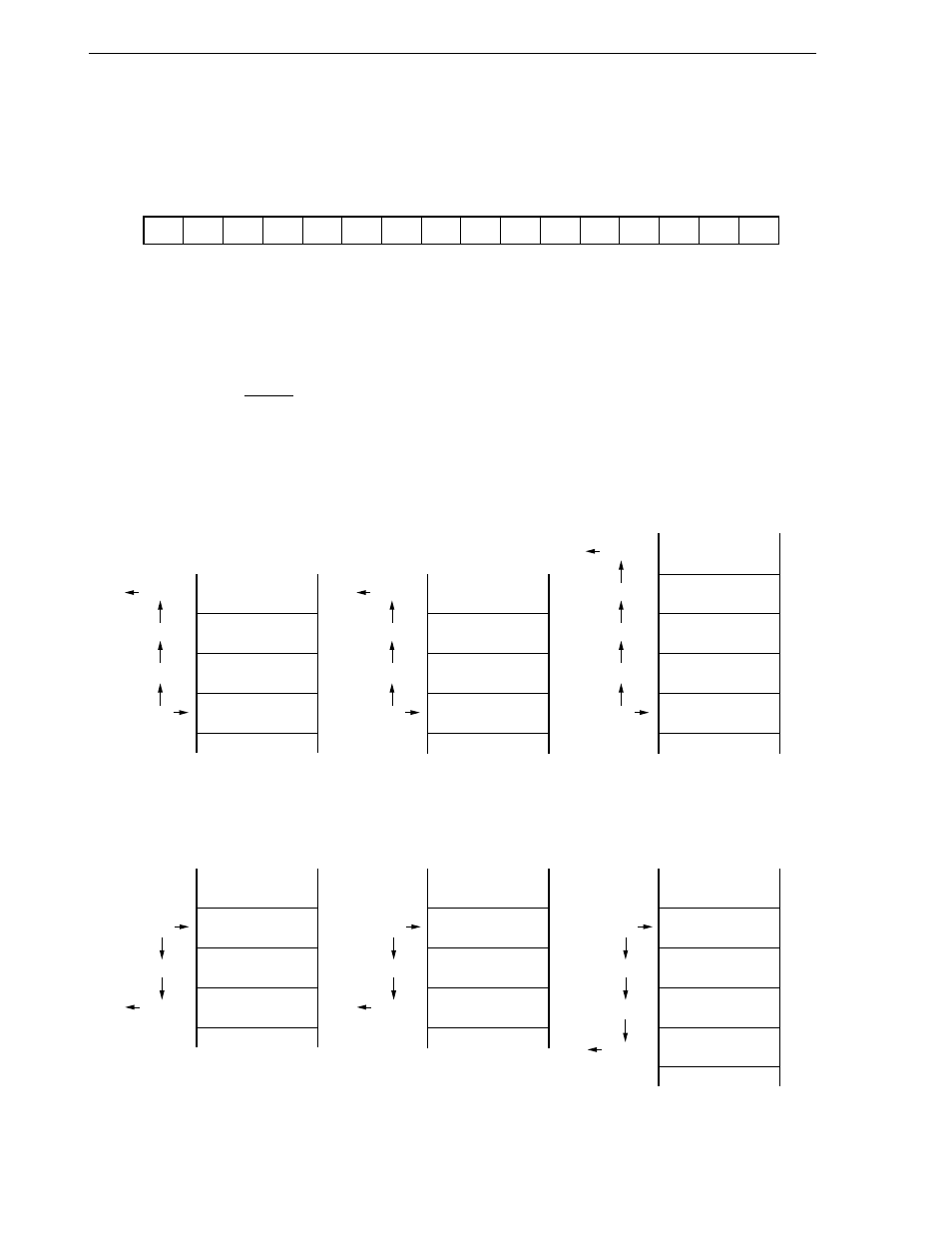

Figure 5-9. Stack Pointer Configuration
The SP is decremented ahead of write (save) to the stack memory and is incremented after read (reset)
from the stack memory.
Each stack operation saves/resets data as shown in Figures 5-10 and 5-11.
Caution Since RESET input makes SP contents indeterminate, be sure to initialize the SP before
instruction execution.
Figure 5-10. Data to be Saved to Stack Memory
Figure 5-11. Data to be Reset from Stack Memory
Interrupt and
BRK Instruction
PSW
PC15 to PC8
PC15 to PC8
PC7 to PC0
Register Pair Lower
SP SP _ 2
SP _ 2
Register Pair Upper
CALL, CALLF, and
CALLT Instruction
PUSH rp Instruction
SP _ 1
SP
SP SP _ 2
SP _ 2
SP _ 1
SP
PC7 to PC0
SP _ 3
SP _ 2
SP _ 1
SP
SP SP _ 3
RETI and RETB
Instruction
PSW
PC15 to PC8
PC15 to PC8
PC7 to PC0
Register Pair Lower
SP SP + 2
SP
Register Pair Upper
RET Instruction
POP rp Instruction
SP + 1
PC7 to PC0
SP SP + 2
SP
SP + 1
SP + 2
SP
SP + 1
SP SP + 3
