Introduction 89
Model 3196RC T-DAC User Manual A • Network Ports (RJ-21X) connector pin-out
Introduction

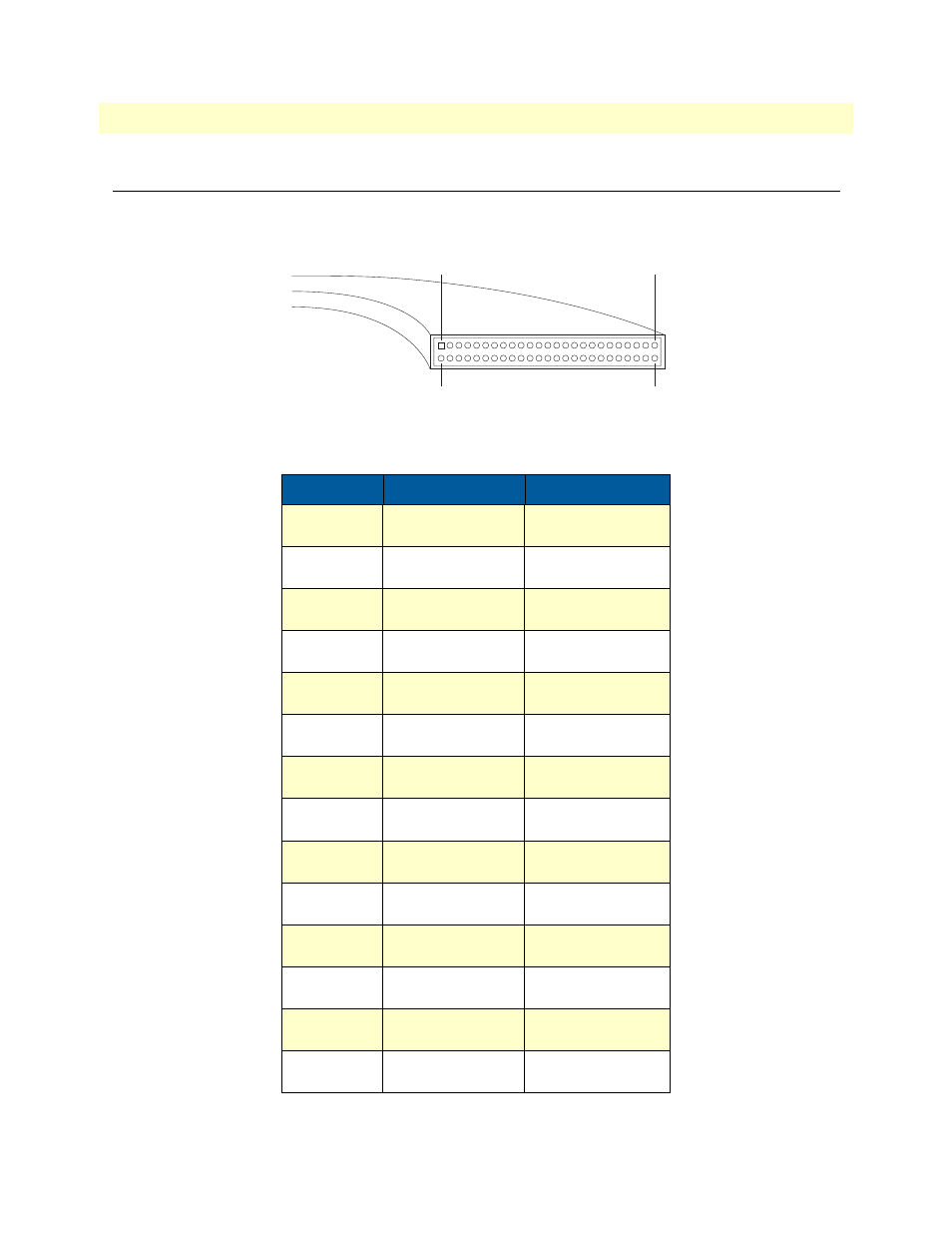

Figure 60 shows the pin-out for the RJ-21X 50-pin Telco connector. Table 9 contains the band-marked color
codes for the RJ-21X 50-pin Telco connector
Figure 60. 50-pin Telco connector
Table 9. Band Marked Color Code
DSL Port 50 Pin Positions Wire Color Code
Port 1
1
26
Blue/White
White/Blue
Port 2
2
27
Orange/White
White/Orange
Port 3
3
28
Green/White
White/Green
Port 4
4
29
Brown/White
White/Brown
Port 5
5
30
Slate/White
White/Slate
Port 6
6
31
Blue/Red
Red/Blue
Port 7
7
32
Orange/Red
Red/Orange
Port 8
8
33
Green/Red
Red/Green
Port 9
9
34
Brown/Red
Red/Brown
Port 10
10
35 Slate/Red
Red/Slate
Port 11
11
36 Blue/Black
Black/Blue
Port 12
12
37 Orange/Black
Black/Orange
Port 13
13
38 Green/Black
Black/Green
Port 14
14
39 Brown/Black
Black/Brown
50-pin TELCO Male
Pin 1
26
25
50
