Using a browser to complete Model 3196RC configuration 59
Model 3196RC T-DAC User Manual 3 • Configuring the T-DAC for operation
2. From the Line Coding pull-down menu ( figure 38 ) select dsx1AMI(5) or dsxHDB3(3). Most installations
will use HDB3.

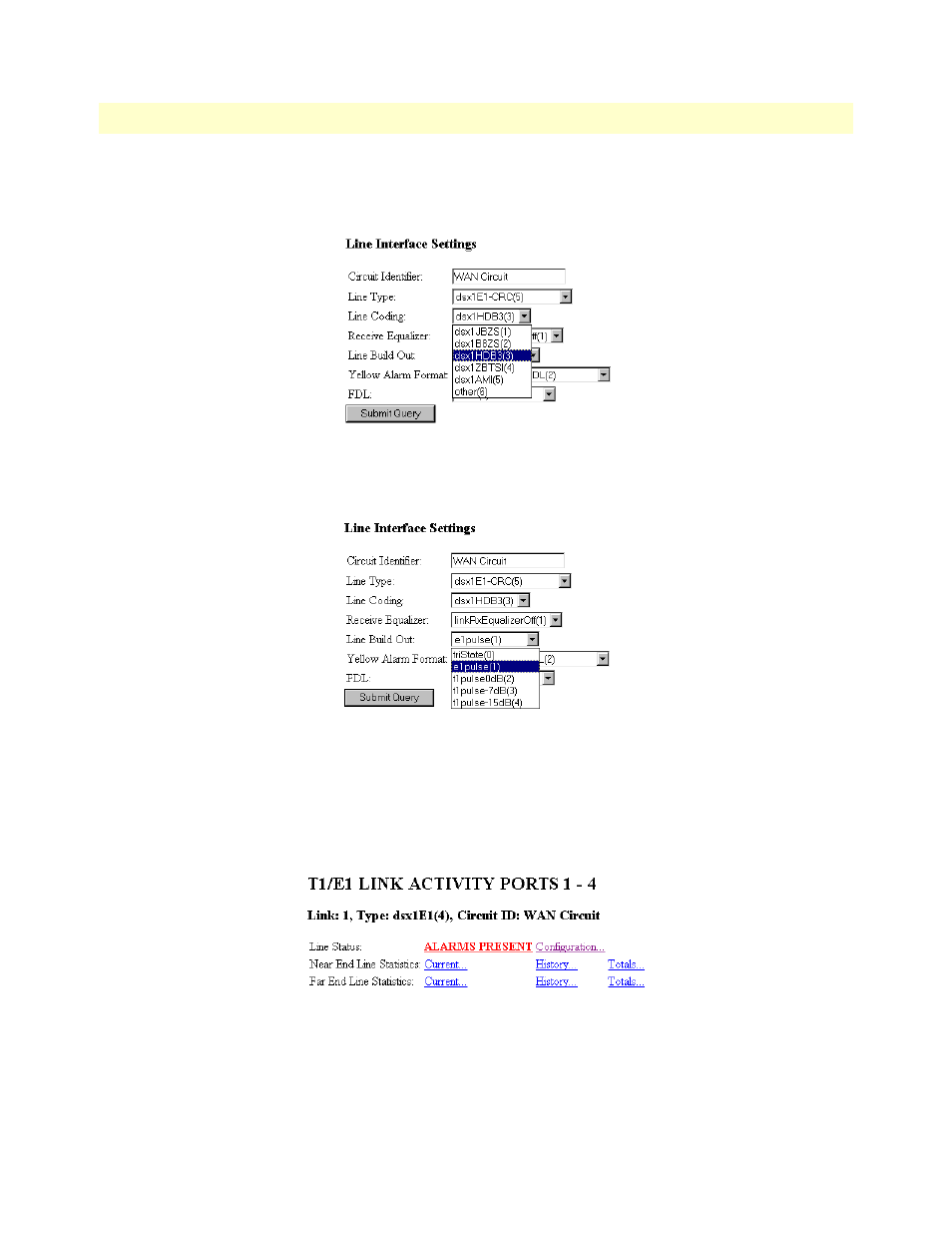

Figure 38. Line Coding pull-down menu with dsx1HDB3(3) selected
3. From the Line Build Out pull-down menu ( figure 39 ) select e1pulse(1).
Figure 39. Line Build Out pull-down menu with e1pulse(1) selected
4. Click the Submit Query button to apply your line interface settings.
At this point the WAN front panel LEDs will become active. The WAN indicator LED should now display a
steady green light, indicating the T-DAC has synchronized with the E1 line. If the E1 line is not connected to the
3196RC, T1/E1 link pages will display the hyperlink ALARMS PRESENT (
figure 40 ) for that T1/E1 link.
Figure 40. E1 ALARMS PRESENT indicator
After you connect the E1 line to the WAN port on the rear of the Model 3196RC these alarms should disappear.
