Using a browser to complete Model 3196RC configuration 58
Model 3196RC T-DAC User Manual 3 • Configuring the T-DAC for operation

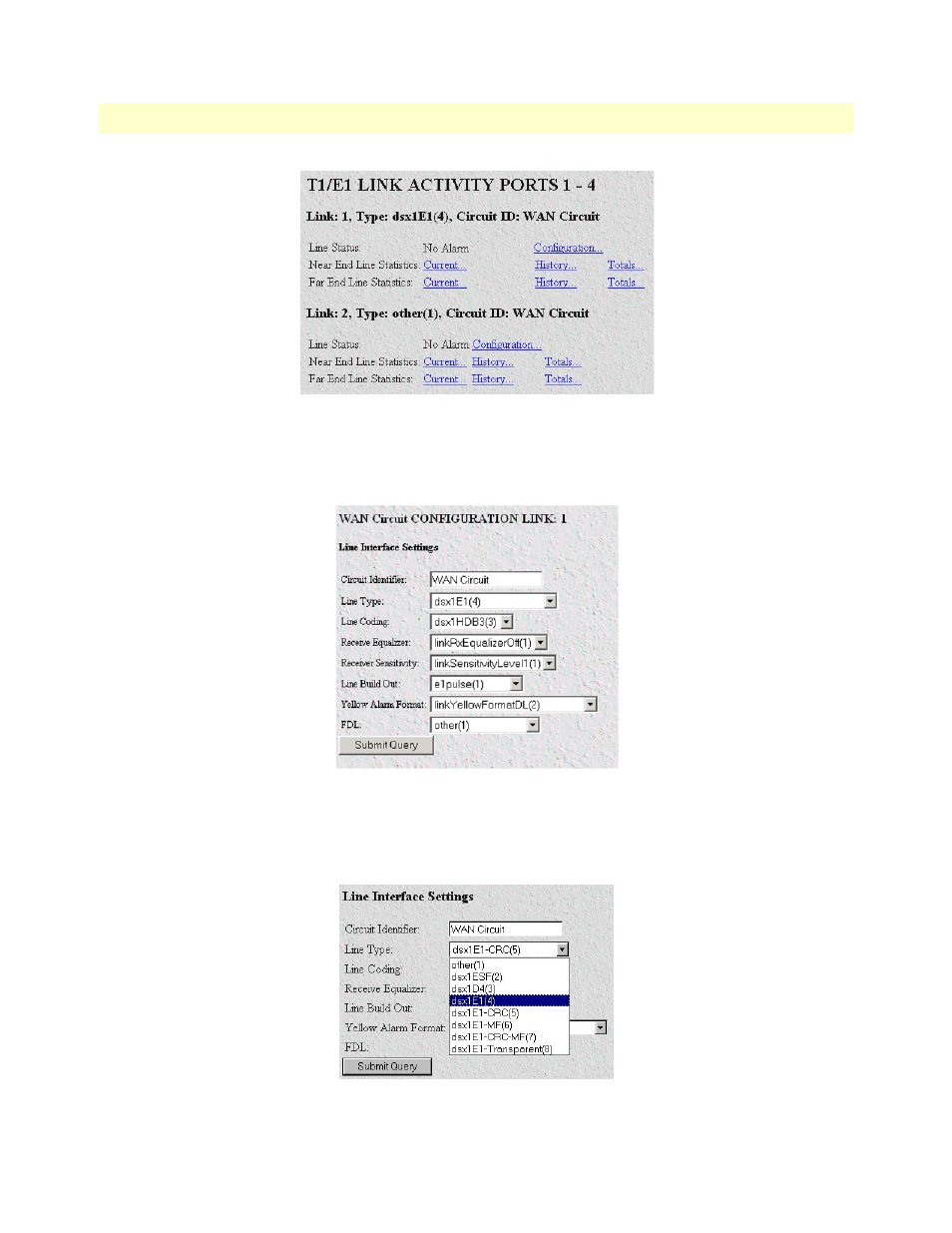

Figure 35. T1/E1 Link Activity Ports 1 – 4 page.
3. Click the Configuration… hyperlink then click the Modify Configuration... hyperlink to open the WAN
Circuit CONFIGURATION LINK window (see figure 36 ) and view the Line Interface Settings.
Figure 36. WAN Circuit Configuration page, Line Interface Settings
Configuring the E1 line interface settings
1. From the Line Type pull-down menu ( figure 37 ) select dsx1E1(4) or dsx1E1-CRC(5).
Figure 37. Line Type pull-down menu
