Hardware overview

21

Model 3196RC T-DAC User Manual

1 • Introduction

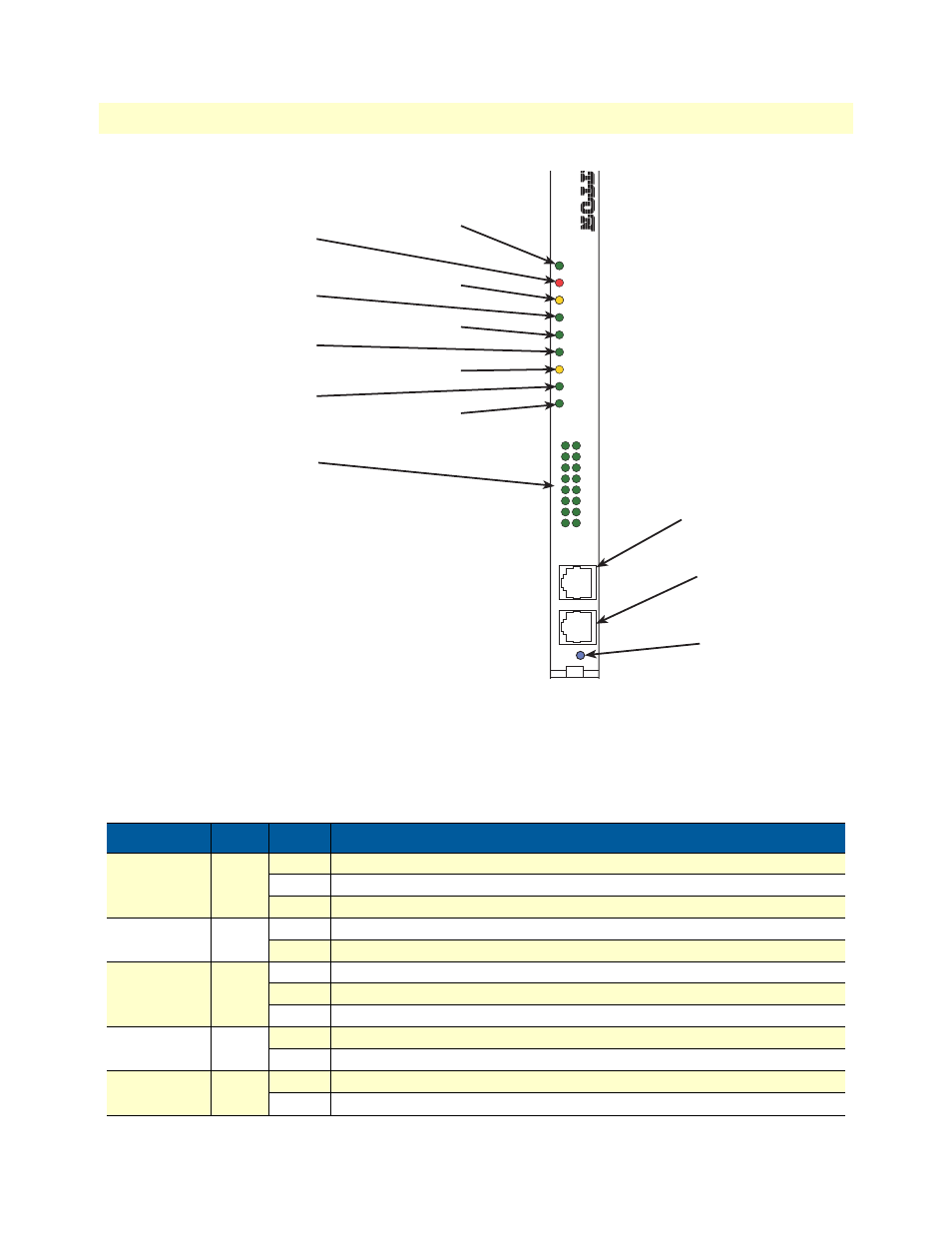

Figure 4. Model 3196RC front panel LEDs

LED display

Front panel LEDs (figure 3) display the status of the WAN ports, the iDSL ports, the Ethernet LAN port,
power, and the alarms. The LEDs are described in

table 3

.

Table 3. LED definitions

LED

Color Status

Meaning

POWER

Green On solid Power is being applied. No action recommended.

Flashing The 3196RC has detected a power failure on a power bus.

Off

No input power is being applied.

CPU FAIL

Red

On solid CPU is unable to load the software from FLASH to RAM for operation.

Off

The CPU is operating normally.

ALARM

Yellow On solid A minor alarm condition has been detected.

Flashing A major alarm condition has been detected.

Off

The Model 3196RC is operating normally.

SYSTEM

Green

Flashing The Model 3196RC is operating normally.

Off

The Model 3196RC is not functioning properly.

ETHERNET

Green On solid Link status is nominal for the Ethernet port. No action recommended.

Off

A valid link has not been detected.

DSL

on
centr

ator

R

C T

-DAC

WA

N

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU F

AIL

ALARM

CLK SOURCE

DSL CONNECTION

2

3

4

5

6

7

8

10

11

12

13

14

15

16

1

9

CONFIG

10/100 ENET

READY

10/100 ENET

port

CONFIG

port

READY

LED

DSL CONNECTION LEDs

TEST MODE LED

CLK SOURCE LED

SYSTEM LED

CPU LED

WAN LED

CLK ERROR LED

ETHERNET LED

ALARM LED

POWER LED
