Using a browser to complete Model 3196RC configuration
42
Model 3196RC T-DAC User Manual
3 • Configuring the T-DAC for operation
5. The 3196RC Configuration Menu home page will appear (see
).

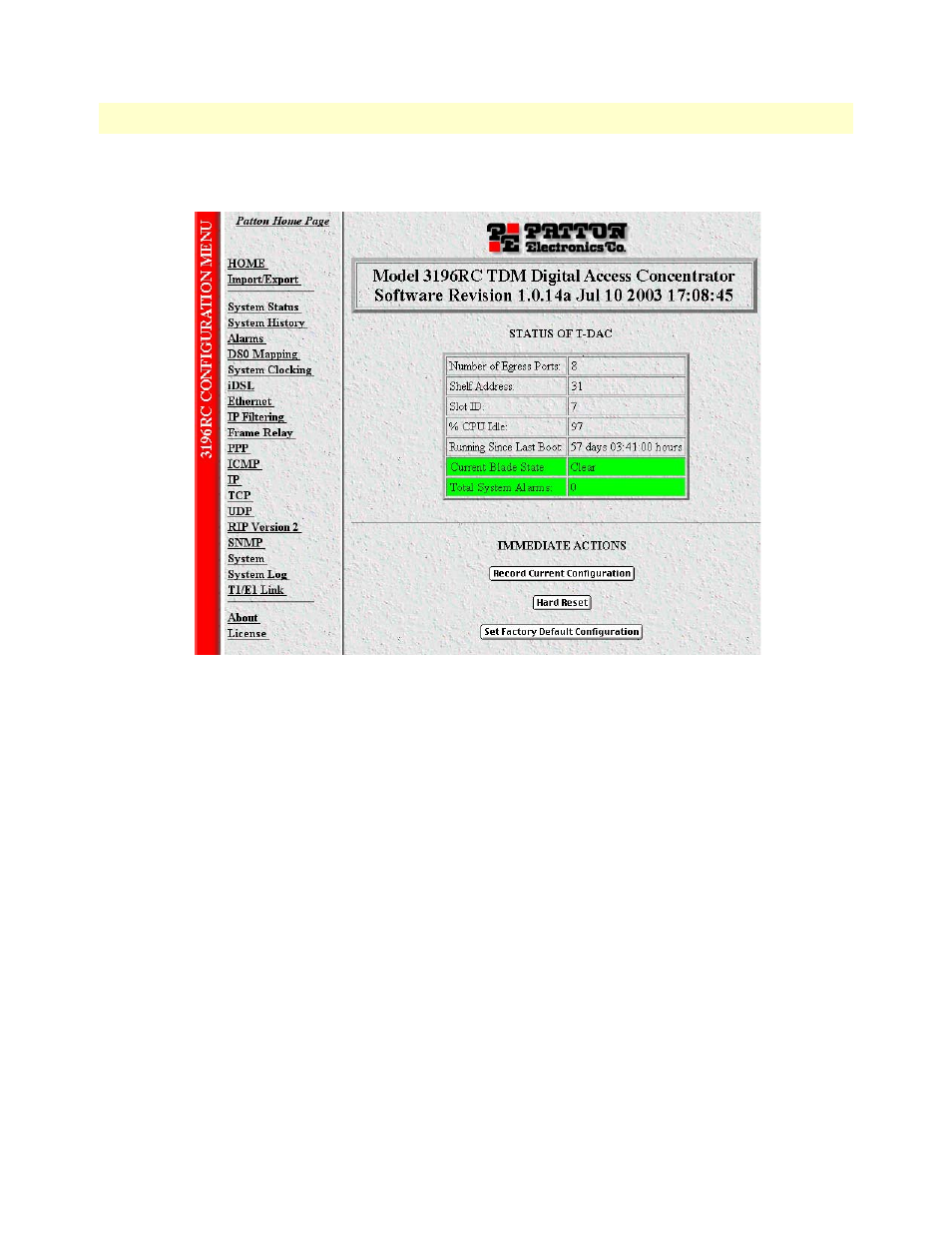

Figure 21. 3196RC Configuration Menu home page
Home page overview
The
HOME
window is divided into two panes: the
Configuration Menu
pane and the
Configuration/informa-
tion
pane (see
). The
Configuration Menu
contains the links to the various Model 3196RC sub-
systems, while in the
Configuration/information
pane, you can view status and other information or make
changes to the system configuration. Unlike the
Configuration Menu
pane, which appears the same no matter
which subsystem page you may select, the
Configuration/information
pane contents will change as you move
from one subsystem page to another.
