Hardware overview 18
Model 3196RC T-DAC User Manual 1 • Introduction
Hardware overview
The Model 3196RC combines transmission and networking technology concentrating 16 iDSL ports and 4 to
16 T1/E1 WAN links into a single slot blade for a standard CPCI chassis. The T-DAC front blade (see
figure 3 ) contains a full set of LED status indicators presented on the front panel, and an RS-232 async control
port. The rear blade presents electrical connections for the iDSL modems and WAN ports as well as an alarm
LED.

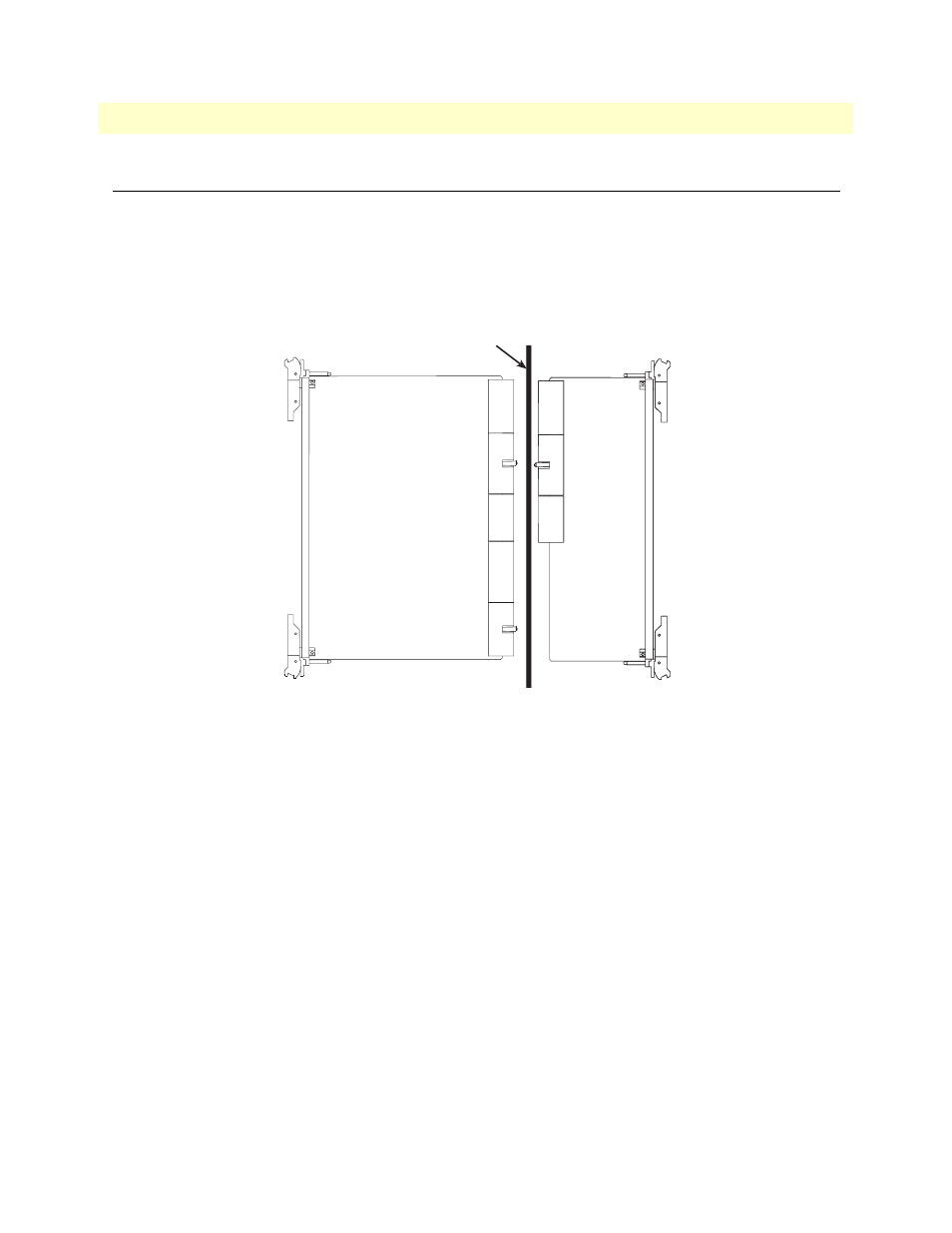

Figure 3. Model 3196RC T-DAC features
WAN
The 3196RC includes four, eight, twelve, or sixteen WAN uplink ports selectable for T1 or E1 operation. The
WAN uplink ports may be connected to ATM/FR/DDN/ IP network backbones and are accessible via the 68-
pin SCSI connector. Also included are:
• Four to sixteen built-in T1/E1 CSU/DSUs
• T1 1.544 Mbps with D4 or ESF framing, AMI or B8ZS line coding, FCC part 68 compliant
• E1 2.048 Mbps multi-framing with or without CRC4 framing, AMI/HDB3 line coding, CTR-12, and
CTR-13 compliant
• Built-in fuses and surge protectors
Midplane
Rear Blade
Front Rear
Side view
Front Blade
