Backing up your configuration parameters 64
Model 3196RC T-DAC User Manual 3 • Configuring the T-DAC for operation
Note The parameters that will be exported are the power-up settings as they
are stored in flash memory and may not be the current operating
parameters. To ensure that you export the most current parameters,
go to HOME, then under Immediate Actions, click on the Record
Current Configuration button.
To import or export a configuration, do the following:
1. On the Configuration Menu pane, click the Import/Export hyperlink to display the IMPORT/EXPORT
page (see figure 49 ).

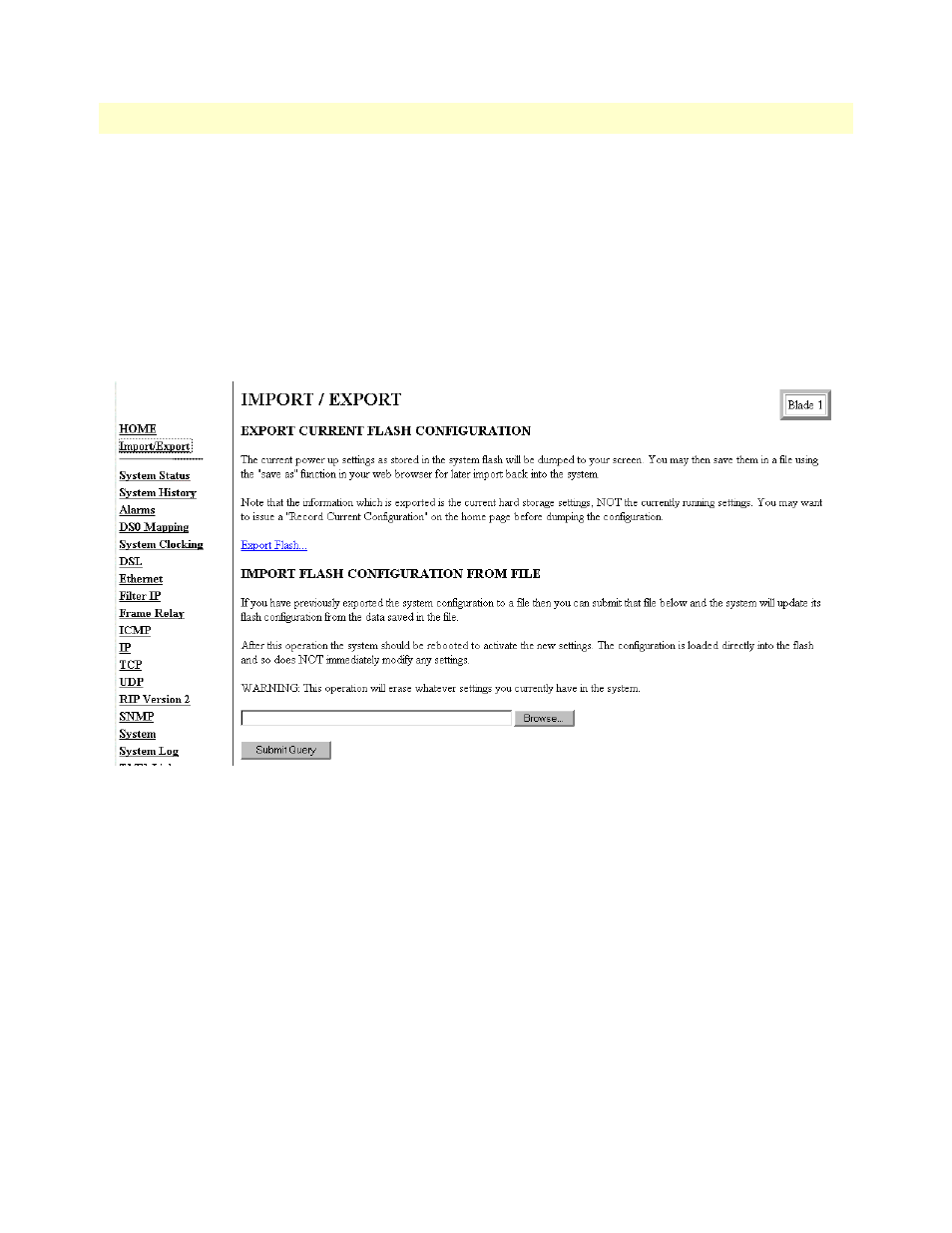

Figure 49. IMPORT/EXPORT page
