Using a browser to complete Model 3196RC configuration 60
Model 3196RC T-DAC User Manual 3 • Configuring the T-DAC for operation
Configuring line settings and signaling for T1
Accessing the Line Interface Settings
1. On the 3196RC Configuration Menu, click the T1/E1 Link hyperlink to open the T1/E1 LINK ACTIV-
ITY OVERVIEW page ( figure 41 ).

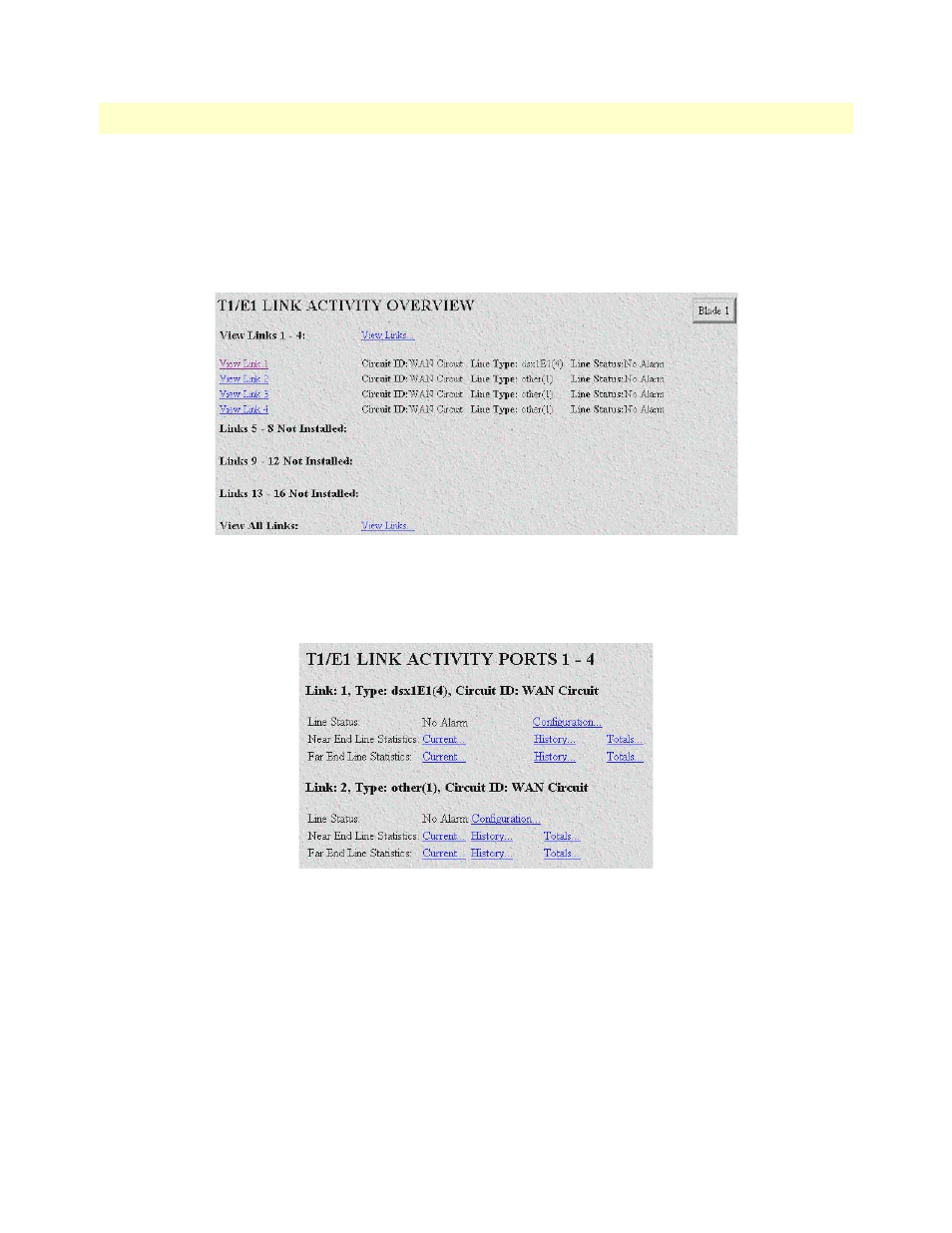

Figure 41. T1/E1 Link Activity Overview page
2. View Link 1 corresponds to the first WAN circuit on the T-DAC. To the right of View Links 1-4 click the
View Links... hyperlink to open the T1/E1 LINK ACTIVITY PORTS 1 – 4 page ( figure 42 ).
Figure 42. T1/E1 Link Activity Ports 1 – 4 page.
