Using a browser to complete Model 3196RC configuration

51

Model 3196RC T-DAC User Manual

3 • Configuring the T-DAC for operation

9. On the Configuration/information pane, click on the number 3 under the column titled Port # to open

the

iDSL Port 3 Details

page (see

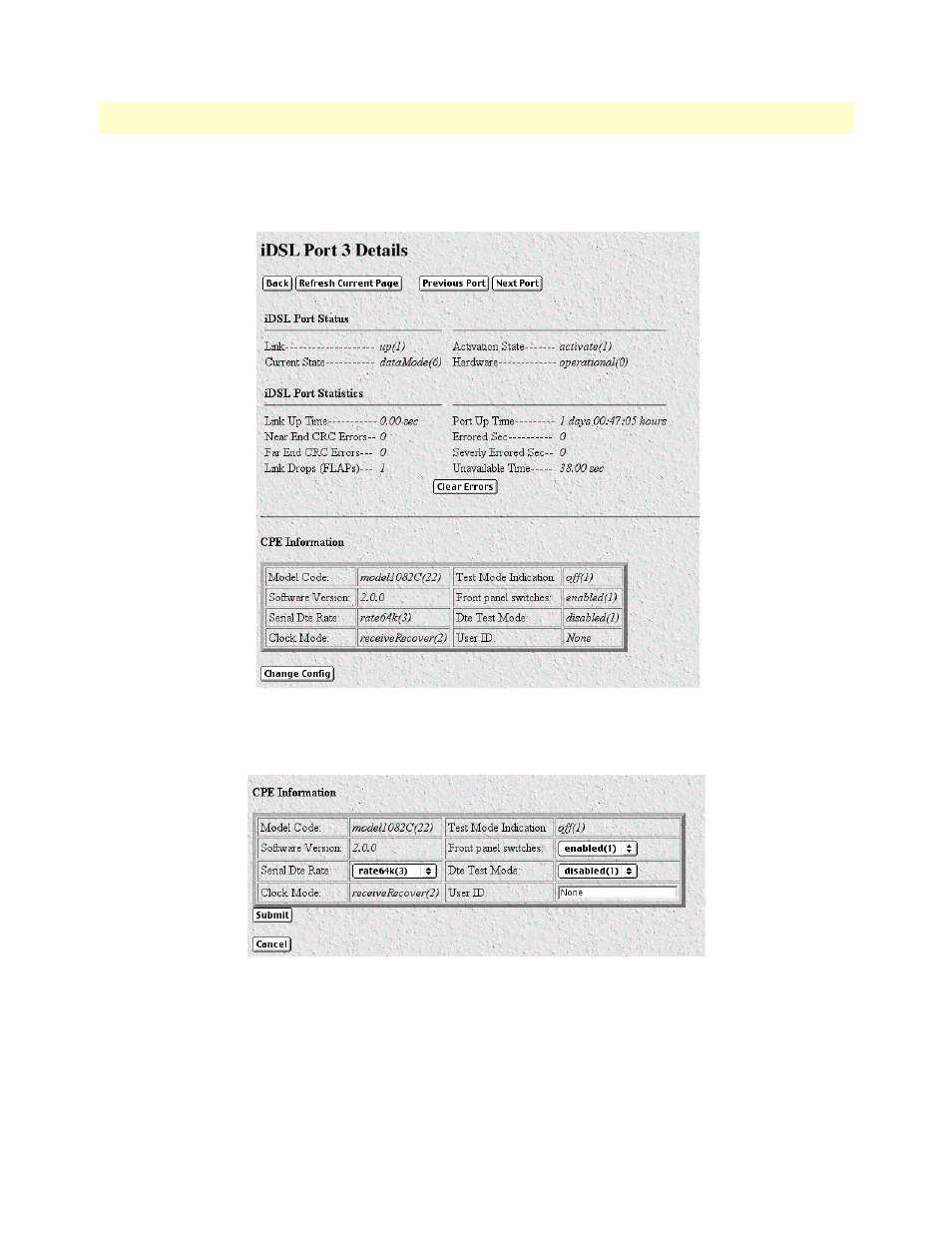

figure 31

).

Figure 31. iDSL Port 1 Details page

10. Click the

Change Config

button to open the configurable parameter fields (see

figure 32

).

Figure 32. iDSL Port configurable parameters

11. Near the bottom of the pane, change Serial Data Rate to 144k(5) and click the

Submit

button. You will

automatically return to the

iDSL Port Information

page.

You have completed the DS0 mapping configuration for example 1.

Example 2
